6SL3210-1PE12-3UL1
SKU: 6SL3210-1PE12-3UL1
BRAND: Siemens
R 6,799.38 (inc VAT) R 5,912.50 (ex VAT)
🚚
Delivery time: 2-5 working days for South Africa
✓
In stock - Ready for immediate dispatch
Free shipping for orders over ZAR 1,000.00

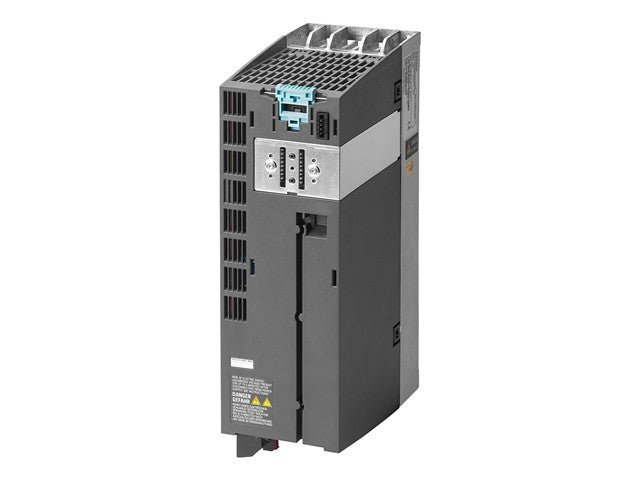

SINAMICS Power Module PM240-2 Unfiltered With Integrated Braking Chopper 380-480
SINAMICS Power Module
Specifications
Product designation: Power Module PM240-2, unfiltered with integrated braking chopper
Rated input voltage: 3-phase 380 … 480 V AC ±10% (47–63 Hz)
Power rating (low overload): 0.75 kW (150% for 3 s, 110% for 57 s, 100% for 240 s)
Power rating (high overload): 0.55 kW (200% for 3 s, 150% for 57 s, 100% for 240 s)
Rated output current (low overload): 2.3 A
Rated output current (high overload) : 1.7 A
Ambient temperature (low overload): –10 °C to +40 °C
Ambient temperature (high overload): –10 °C to +50 °C
Cooling method: Internal air cooling
Integrated braking chopper: Yes
Overload capability: 150% (LO) or 200% (HO) for 3 s
Dimensions (H × W × D): 196 mm × 73 mm × 165 mm
Degree of protection: IP20
Mounting type: Wall or control cabinet (FSA frame size)
Series: SINAMICS G120 (PM240-2)
Function: Modular power unit for G120 drives, used with Control Units (e.g., CU240E-2 or CU250S-2)
Typical applications: Pumps, fans, conveyors, and general automation drive systems
Downloads
Additional Information
Device
Module
Type
SINAMICS | Power | Module
Enhance your automation systems with the SINAMICS Power Module PM240-2, featuring an integrated braking chopper for superior performance. Designed for 3-phase input voltage of 380-480V, it supports high overloads, making it ideal for demanding applications like pumps and conveyors. Optimize efficiency and reliability in your operations with this compact, wall-mounted power module.
