89289 Plug 32W Rows A & C (RAC) 90° PCB

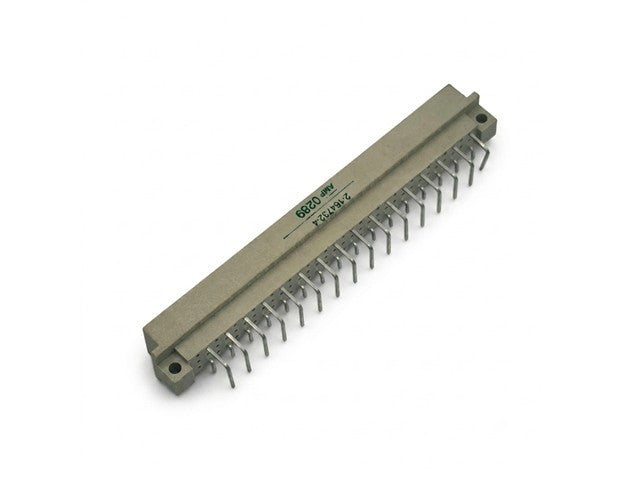

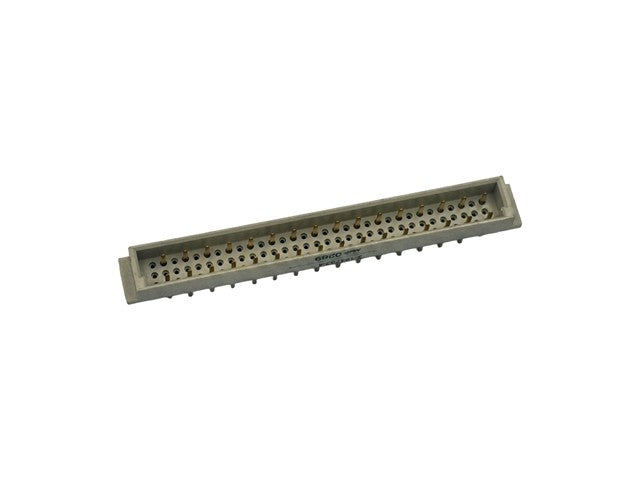

PCB Plug Connector
Feature(s)
- 32-way DIN 41612 male plug
- Rows A & C (RAC) contact arrangement
- Right-angle (90°) through-hole PCB mounting
- Gold-plated contacts for reliable signal transmission
- Rugged glass-filled PBT housing
- Integral polarization key for correct mating
- Suitable for Eurocard backplane systems
- High mechanical durability and low insertion force
Specifications
- Product Type: DIN 41612 Eurocard PCB Plug Connector
- Model Number: 89289
- Connector Style: Right-Angle (90°)
- Standard: DIN 41612 / IEC 60603-2
- Connector Type: Male (Plug)
- Number of Contacts: 32
- Contact Arrangement: Rows A & C (RAC)
- Contact Configuration: 2 × 16
- Mounting Type: Through-Hole PCB Mount (THT)
- Orientation: Right-Angle (90°)
- Termination Type: Right-Angle Solder Pins
- Contact Pitch: 2.54 mm
- Row Spacing: 2.54 mm
- Contact Material: Copper Alloy
- Contact Plating:
- Gold-plated mating contacts
- Tin-plated solder tails
- Housing Material: Glass-Filled Thermoplastic (PBT)
- Housing Color: Grey
- Flammability Rating: UL94 V-0
- Rated Current: 2 A per Contact
- Rated Voltage: 250 V AC
- Proof Voltage: 1000 V DC minimum
- Contact Resistance: ≤20 mΩ
- Insulation Resistance: ≥10¹² Ω
- Mating Cycles: ≥400
- Operating Temperature: -55°C to +125°C
- Compliance:
- DIN 41612
- IEC 60603-2
- RoHS Compliant
Additional Information
| Device |
Plug Connector |
| Type |
PCB | Plug | Connector | 32W |
| Gender |
Male |
| No. of Contacts |
32 |
| No. of Pins |
32 |
| Termination |
Right Angled Solder |
| Row Positions |
Rows A,C |
Enhance your Eurocard backplane systems with the 96P 6033 1531 0 DIN 41612 male plug connector. Featuring 32 gold-plated contacts and a rugged, low-insertion-force design, this right-angle PCB connector ensures reliable signal transmission and exceptional durability. Perfect for high-performance applications, it’s your go-to solution for seamless connectivity.
