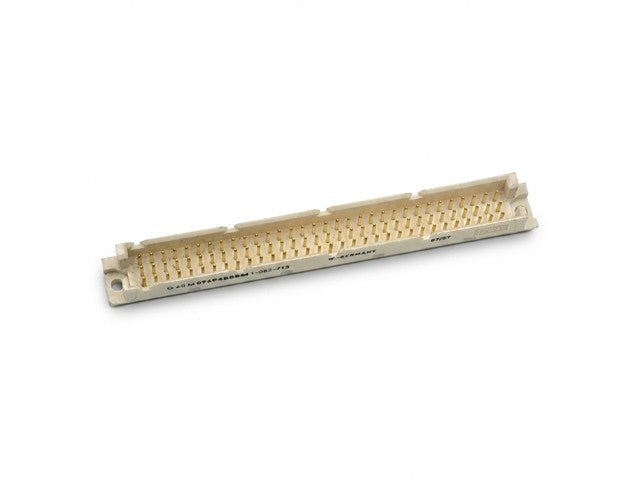

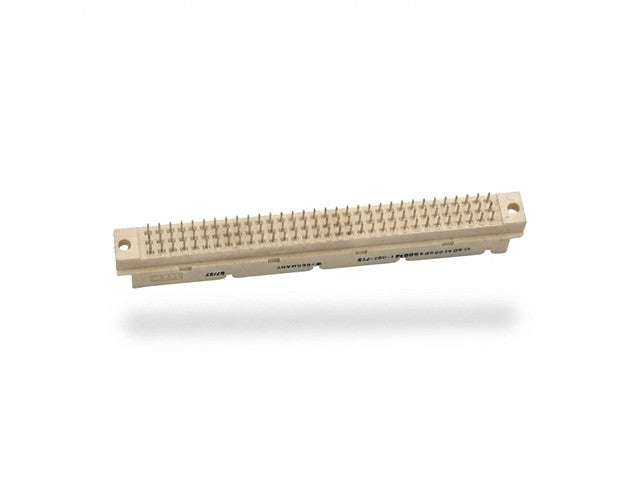

89357 Plug 96W Rows A,B & C (RABC) Straight PCB
PCB Plug Connector
Feature(s)
- 96-way DIN 41612 male plug
- Straight PCB through-hole mounting
- Triple-row (A, B & C) contact arrangement
- Gold-plated mating contacts for reliable conductivity
- Rugged glass-filled thermoplastic housing
- High mechanical durability
- Suitable for Eurocard and backplane systems
- Designed for industrial and telecommunications applications
Specifications
- Product Type: DIN 41612 PCB Plug Connector
- Model Number: 89357
- Connector Style: Straight (Vertical)
- Standard: DIN 41612 / IEC 60603-2
- Contact Arrangement: Rows A, B & C (RABC)
- Number of Contacts: 96
- Contact Configuration: 3 × 32
- Connector Gender: Male (Plug)
- Mounting Type: Through-Hole PCB Mount
- Orientation: Straight (Vertical)
- Termination Type: Solder Pins
- Contact Pitch: 2.54 mm
- Row Spacing: 2.54 mm
- Contact Material: Copper Alloy
- Contact Plating: Gold over Nickel (mating area), Tin over Nickel (termination)
- Housing Material: Glass-Filled Thermoplastic (PBT)
- Housing Color: Grey
- Rated Current: 2 A per Contact
- Rated Voltage: 250 V AC
- Contact Resistance: ≤20 mΩ
- Insulation Resistance: ≥10¹² Ω
- Dielectric Withstanding Voltage: 1000 V AC
- Mating Cycles: ≥400
- Operating Temperature: -55°C to +125°C
- Flammability Rating: UL94 V-0
- Compliance:
- DIN 41612
- IEC 60603-2
- RoHS Compliant
Additional Information
| Device |
Plug Connector |
| Type |
Straight | PCB | Plug | Connector |
Discover the 96P 6043 0731 3 PCB Plug Connector, designed for seamless integration in industrial and telecommunications systems. With gold-plated contacts for superior conductivity and a durable glass-filled thermoplastic housing, this reliable connector ensures long-lasting performance. Perfect for Eurocard and backplane applications, it delivers exceptional mechanical durability and efficiency, making it an ideal choice for your electronic projects.
