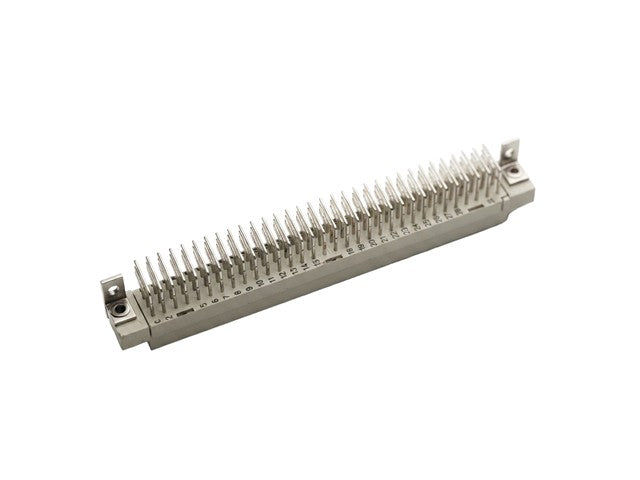

89546 Plug 32W Rows A & C (RAC) Straight Wire Wrap
PCB Plug Connector
Feature(s)
- 32-way DIN 41612 male plug
- Rows A & C (RAC) populated
- Straight (vertical) PCB mounting
- Wire-wrap termination for secure backplane wiring
- Gold-plated contacts for excellent electrical reliability
- Rugged glass-filled thermoplastic housing
- Suitable for Eurocard and industrial backplane systems
Specifications
- Product Type: DIN 41612 Eurocard PCB Plug Connector
- Model Number: 89546
- Connector Style: Straight (Vertical)
- Standard: DIN 41612 / IEC 60603-2
- Connector Type: Male (Plug)
- Number of Contacts: 32
- Contact Arrangement: Rows A & C (RAC)
- Contact Configuration: 2 × 16
- Mounting Type: Through-Hole PCB Mount
- Orientation: Straight (Vertical)
- Termination Type: Wire Wrap
- Contact Pitch: 5.08 mm
- Row Spacing: 5.08 mm
- Contact Material: Copper Alloy
- Contact Plating:
- Gold-plated mating contacts
- Tin-plated wire-wrap tails
- Housing Material: Glass-Filled Thermoplastic (PBT)
- Housing Color: Grey
- Rated Current: 5 A per Contact
- Rated Voltage: 250 V AC
- Contact Resistance: ≤20 mΩ
- Insulation Resistance: ≥1,000 MΩ
- Dielectric Withstanding Voltage: 1,000 V AC
- Mating Cycles: ≥400
- Operating Temperature: -55°C to +125°C
- Flammability Rating: UL94 V-0
- Compliance:
- DIN 41612
- IEC 60603-2
- RoHS Compliant
Additional Information
| Device |
Plug Connector |
| Type |
PCB | Plug | Connector | 32W |

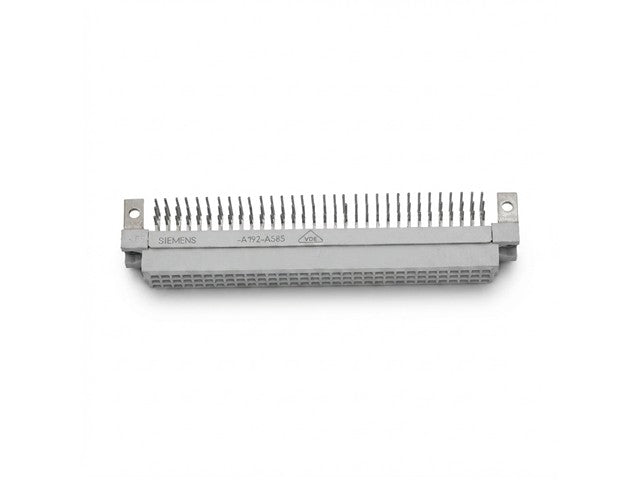

Enhance your electronic projects with the 96P 6043 1531 1 DIN 41612 PCB Plug Connector. This 32-way male plug ensures reliable connections with gold-plated contacts and a rugged thermoplastic housing, perfect for Eurocard and industrial backplane systems. Experience seamless wire-wrap terminations and superior electrical performance for all your wiring needs.
