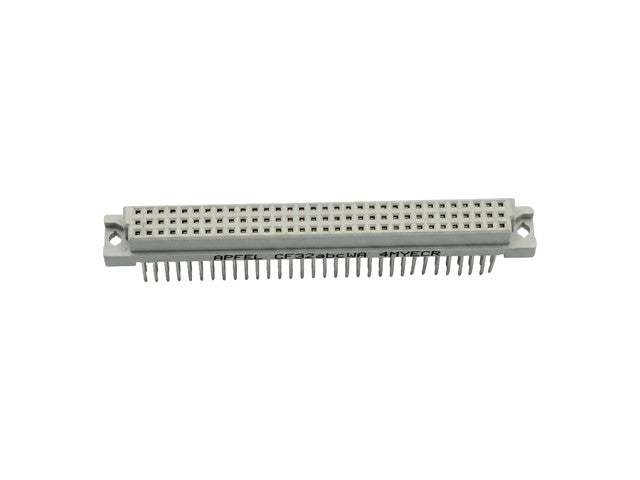

89296-4 Socket 96W Row A,B & C (RABC) Straight PCB
Female Socket Connector
Feature(s)
- Standard DIN 41612 Eurocard interface
- 96-way high-density female connector
- Straight PCB through-hole mounting
- Gold-plated contacts for reliable electrical performance
- Low insertion force with secure mating
- Rugged thermoplastic housing
- Suitable for backplane and rack systems
Specifications
- Product Type: DIN 41612 Female Socket Connector
- Model Number: 89296-4
- Connector Style: Straight (Vertical) PCB Socket
- Standard: DIN 41612
- Contact Arrangement: Rows A, B & C (RABC)
- Number of Contacts: 96
- Contact Configuration: 3 × 32
- Gender: Female (Socket)
- Mounting Type: Through-Hole PCB Mount
- Orientation: Straight (Vertical)
- Contact Pitch: 2.54 mm
- Row Spacing: 2.54 mm
- Termination Type: Solder Pins
- Contact Material: Copper Alloy
- Contact Plating: Gold over Nickel (contact area)
- Housing Material: Glass-Filled Thermoplastic
- Housing Color: Grey
- Rated Current: Up to 2 A per Contact
- Rated Voltage: 250 V AC
- Contact Resistance: ≤20 mΩ
- Insulation Resistance: ≥1,000 MΩ
- Dielectric Withstanding Voltage: 1,000 V AC (Typical)
- Operating Temperature: -55°C to +125°C
- Mating Cycles: ≥500
- Flammability Rating: UL94 V-0
- Compliance: RoHS Compliant (manufacturer dependent)
Additional Information
| Device |
Socket Connector |
| Type |
89296-4 | Socket | 96W | Row | A,B,C | Straight | PCB |
| Gender |
Female |
| No. of Contacts |
96 |
| No. of Pins |
96 |
| Termination |
Straight Solder |
| Row Positions |
Rows A,B,C |
Enhance your electronic projects with the 96S 6033 0731 2 female socket connector. Featuring a high-density 96-way design and gold-plated contacts, this reliable DIN 41612 connector ensures superior electrical performance and easy installation. Ideal for backplane and rack systems, it provides a secure connection with low insertion force, making it perfect for your PCB needs. Upgrade your connections today!
