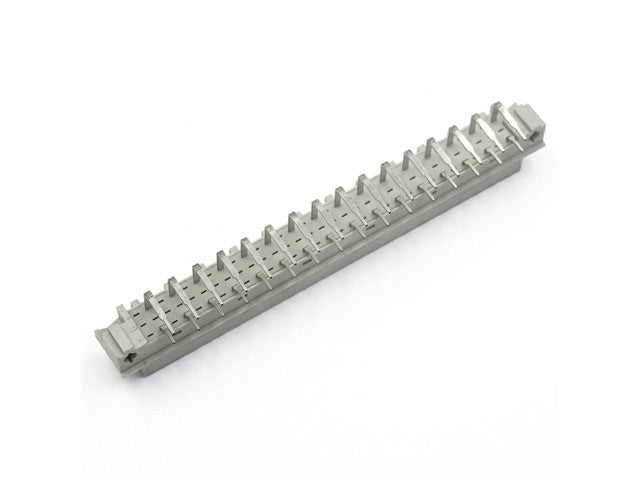

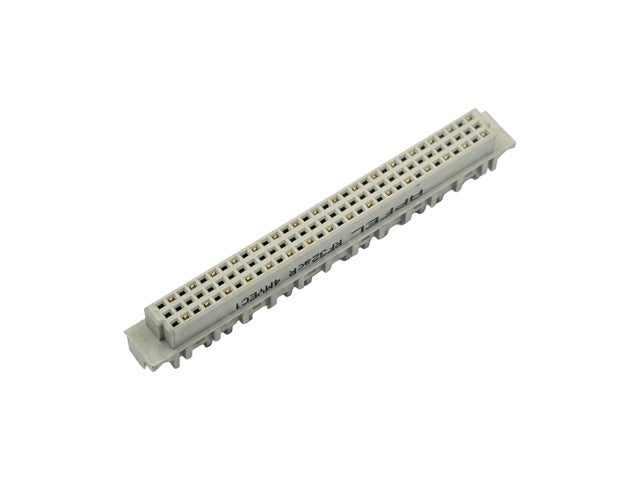

89405 Socket 64W Right-Angle Connector 90 Degrees PCB
Socket 64W Right-Angle Connector
Feature(s)
- Right-angle PCB mounting
- 64 gold-plated female contacts
- High-density Eurocard connector
- Low insertion force
- High mechanical durability
- Reliable electrical performance
- Suitable for industrial and telecommunications equipment
Specifications
- Product Type: DIN 41612 Female Socket Connector
- Connector Style: Right-Angle (90°)
- Gender: Female
- Number of Contacts: 64
- Contact Arrangement: 2 × 32
- Mounting Type: Through-Hole PCB Mount
- Orientation: Right-Angle
- Contact Type: Receptacle (Socket)
- Contact Material: Copper Alloy
- Contact Plating: Gold-Plated Contact Area
- Termination Type: PCB Solder Pins
- Contact Pitch: 2.54 mm
- Row Spacing: 2.54 mm
- Housing Material: Glass-Filled Thermoplastic
- Housing Color: Grey
- Current Rating: Up to 2 A per Contact
- Rated Voltage: 250 V AC
- Contact Resistance: ≤20 mΩ
- Insulation Resistance: ≥1000 MΩ
- Dielectric Withstanding Voltage: 1000 V AC (Typical)
- Operating Temperature: -55°C to +125°C
- Mating Cycles: ≥500
- Flammability Rating: UL94 V-0
- Compliance: RoHS Compliant (manufacturer dependent)
Additional Information
| Device |
Right-Angle Connector |
| Type |
89405 | Socket | 64W | Right-Angle |
| Gender |
Female |
| No. of Contacts |
64 |
| No. of Pins |
64 |
| Termination |
Right Angled Solder |
| Row Positions |
Rows A,C |
Enhance your industrial and telecommunications projects with the 89405 Socket 64W Right-Angle Connector. Featuring 64 gold-plated female contacts for superior reliability and low insertion force, this durable connector ensures optimal electrical performance. Its compact design and high-density Eurocard format make it ideal for efficient PCB mounting, while its robust construction guarantees long-lasting use in demanding environments.
