99-0172-75-08

Name: 99-0172-75-08 - Communica [Part No: 99-0172-75-08]
Brand: Binder
SKU: 99-0172-75-08
Price: 666.30 ZAR
Availability: InStock

SKU: 99-0172-75-08

BRAND: Binder

R 766.25_{(inc VAT)}
R 666.30_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Connectors

Type: Circular Connectors

Category: Circular DIN M16 Connectors IP67

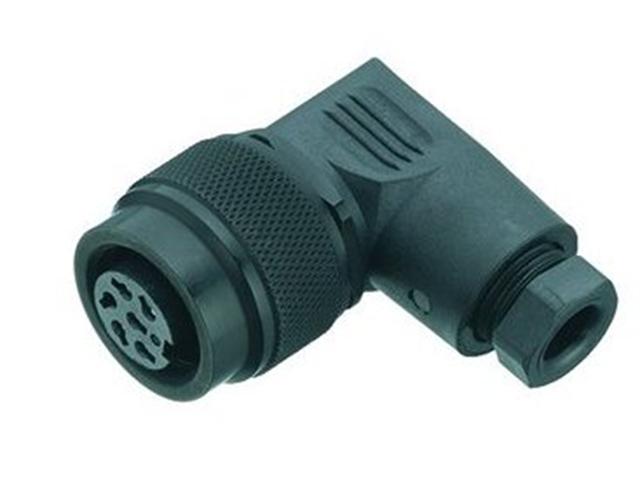

Circular Connector M16 Cable Female Right Angled 8 POLe DIN Silver Plated Contacts Solder Screw Lock 8mm Cable Entry 5A 60V IP67

M16 Cable Female Right Angled Circular Connector

Specifications

Connector design	Female angled connector
Type standard	DIN EN 61076-2-106
Version	Connector socket angled
Connector locking system	screw
Termination	solder
Degree of protection	IP67
Connection cross-section	max. 0.75 mm² / AWG 18
Cable outlet	6.0-8.0 mm
Twistability	90° (4 coding options)
Temperature range from/to	-40 °C / 95 °C
Mechanical operation	> 500 Mating cycles
Weight (g)	39.97
Customs tariff number	85369010
Country of Origin	DE

Rated voltage	60 V
Rated impulse voltage	500 V
Rated current	5.0 A
Insulation resistance	≥ 10¹⁰ Ω
Pollution degree	1
Overvoltage category	I
Insulating material group	III
EMC compliance	unshielded

Downloads

Datasheet - 99-0172-75-08

Additional Information

Device	Connector
Type	M16 Cable \| Female \| Right Angled \| Circular

Enhance your connections with the M16 Female Right Angled Circular Connector. Designed for durability, this IP67-rated connector features silver-plated contacts for optimal conductivity and a secure screw lock for reliable performance. Perfect for various applications, it supports up to 5A and withstands extreme temperatures, ensuring long-lasting reliability. Upgrade your electrical setup today!
