99-5121-40-06

SKU: 99-5121-40-06

BRAND: Binder

In Stock
R 307.91_{(inc VAT)}
R 267.75_{(ex VAT)}

Collections: Connectors

Type: Circular Connectors

Category: Circular DIN M16 Connectors IP67

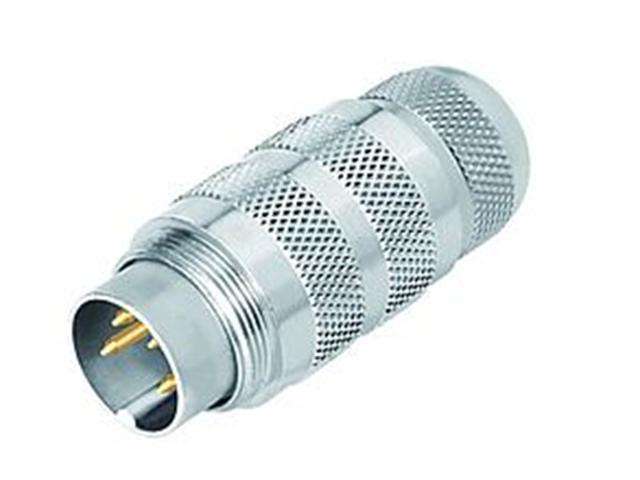

Circular Connector M16 Cable Male Straight 6 Pole DIN Gold Plated Contacts Screw Lock 8mm Cable Entry IP67

Overview

Features

Specification

Number of Contacts : 6 DIN
Connector Locking System : Bolted
Termination : Solder
Wire Gauge (mm) : 0,75 mm²
Wire Gauge (AWG) : 20
Cable Outlet : 4 - 8 mm
Degree of Protection : IP67
Mechanical Operation : > 500 Mating cycles
Upper Temperature : 95 °C
Lower Temperature : -40 °C
Rated Voltage : 250 V
Rated Impulse Voltage : 1500 V
Pollution Degree : 1
Overvoltage Category : I
Material Group : III
Rated Current (40°C) : 5 A
Volume Resistivity : ≤ 3 mΩ
Material of Contact : CuZn (Messing)
Contact Plating : Au (gold)
Material of Contact Body : PBT (UL 94 V-0)
Approval 1 : UL

Downloads

Datasheet Download
