99-9114-00-05

SKU: 99-9114-00-05

BRAND: Binder

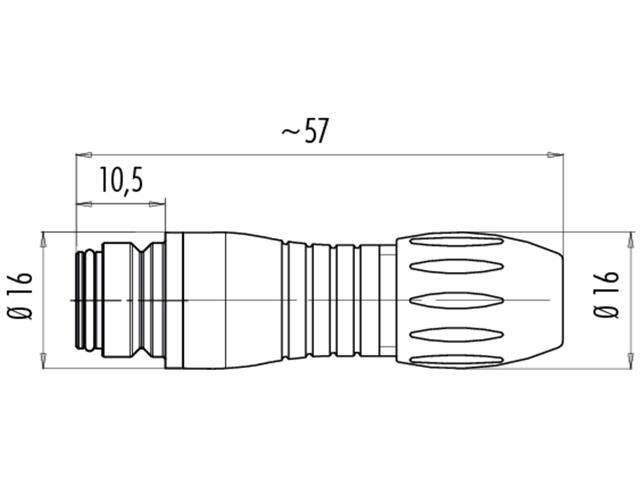

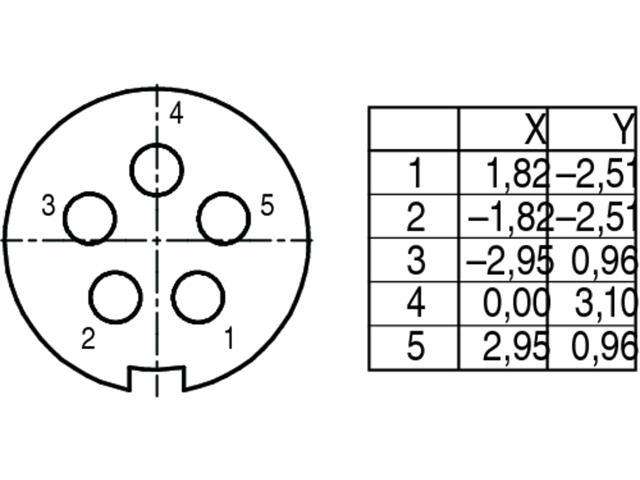

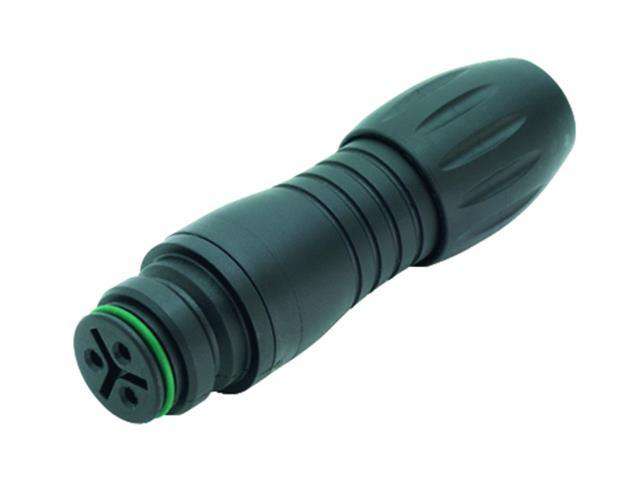

Circular Connector Miniature Cable Female Straight. 5 Pole SNAP-IN 4-6mm Cable Entry IP67.

Overview

Features

Specification

  • Connector Locking System : Snap
  • Termination : Solder
  • Wire Gauge (mm) : 0,75 mm²
  • Wire gauge (AWG) : 20
  • Cable Outlet : 4,0 - 6,0 mm
  • Degree of Protection : IP67
  • Mechanical operation : > 500 Mating cycles
  • Upper Limit Temperature : 85 °C
  • Lower Limit Temperature : -25 °C
  • Rated Current (40 °C) : 5 A
  • Rated Voltage : 125 V
  • Rated Impulse Voltage : 1500 V
  • Pollution Degree : 2
  • Overvoltage Category : II
  • Insulating Material Group : II
  • Volume Resistivity : = 3 mO
  • Insulation Resistance : = 10¹°O
  • Contact Material : CuSn (bronze)
  • Contact Plating : Au (gold)
  • Contact Body Material : PA (UL 94 V-0)
  • Housing Material : PA
  • Customs Tariff Number : 85369010
  • Weight (g) : 10.433
