99-9210-060-04

SKU: 99-9210-060-04

BRAND: Binder

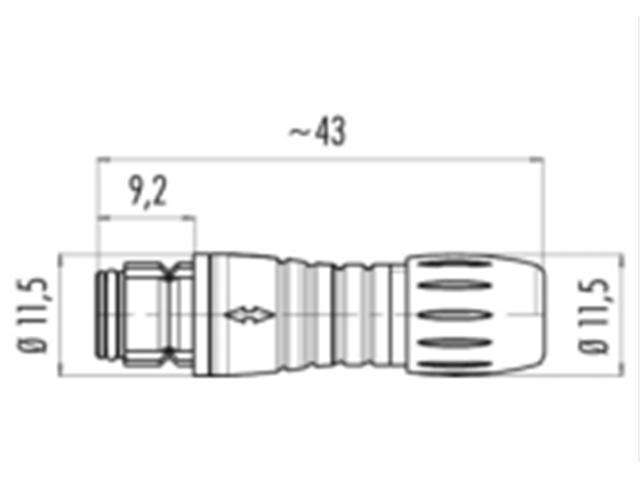

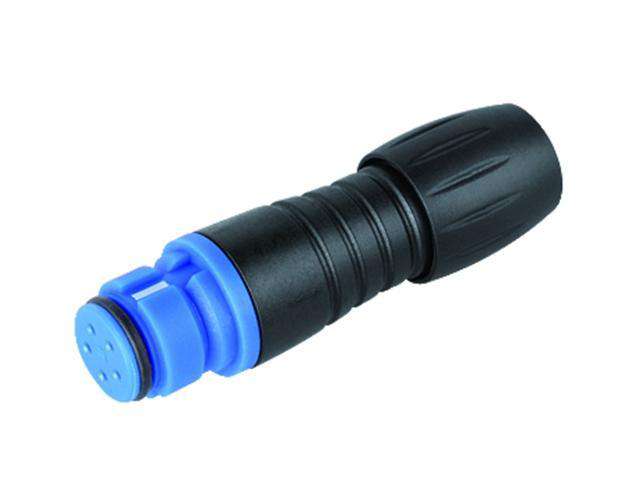

Circular Connector Submini Cable Female Straight 4 Pole Snap-in 3-5mm Cable Entry Blue Top IP67

Overview

Features

Specification

General Values

  • Connector Design : Female Cable Connector
  • Connector locking system : Snap
  • Termination : Solder
  • Wire Gauge (mm) : 0,25 mm²
  • Wire Gauge (AWG) : 24
  • Cable Outlet : 3 - 5 mm
  • Upper Limit Temperature : 85 °C
  • Lower limit temperature : -25 °C

Electrical Values

  • Rated Voltage : 125 V
  • Rated Impulse Voltage : 1500 V
  • Pollution Degree : 2
  • Overvoltage Category : II
  • Insulating Material Group : II
  • Rated Current (40 °C) 2,5 A
  • Volume Resistivity ≤ 3 mΩ
  • EMC Compliance : Shielding is not Possible
  • Degree of Protection : IP67
  • Mechanical Operation : > 500 Mating Cycles

Material

  • Contact Material : CuZn (Messing)
  • Contact Plating : Au (gold)
  • Contact Body material : PA (UL 94 V-0)
