Battery Active Balancer/Equaliser 24V Lithium - Suitable For All Battery Types 2x12V Batteries, IP67, Low Power Consumption 3mA, Optimization Current-controlled Between 0~5A
24V Lithium Battery Active Balancer/Equaliser
Features
- Can be connected to 24V battery banks (2x 12V in series)
- Monitors each battery voltage
- On deviation of more than 20 mV, the higher voltage battery will be discharged to the lower voltage batteries until all the battery voltages are equal
- Battery banks of 2x 12V can be used
- IP67 rated
- No external power supply is required
- Reverse polarity protection
- Optimization current-controlled between 0 to 5 A
- Low power consumption of 3mA
- Keeps batteries in optimal condition
- Up to 5Amp inter battery balancing
- Ensures longer service life of batteries
- Highly recommended for batteries in series
- 24V Active balancer

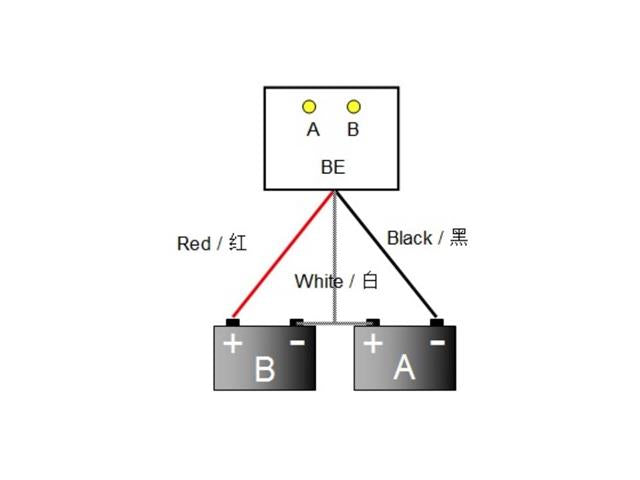

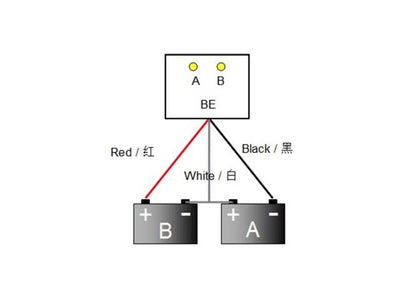

- Easily connect to batteries with included wiring
Specifications
- Can be connected to 24V battery banks (2x 12V in series)
- Monitors each battery voltage
- On deviation of more than 20 mV, the higher voltage battery will be discharged to the lower voltage batteries until all the battery voltages are equal
- Battery banks of 2.4V/3.6V/6V/9V/12V can be used
- IP67 rated
- No external power supply is required
- Reverse polarity protection
- Optimization current-controlled between 0 to 5 A
- Low power consumption of 3mA
HB01/HB11/HB11L
| Voltage Difference (V) |
Balance Current (A) |
| 1.6 |
1.23 |
| 1.4 |
1.1 |
| 1.2 |
0.92 |
| 1.1 |
0.86 |
| 1 |
0.76 |
| 0.5 |
0.4 |
Additional Information
| Device |
Balancer/Equaliser |
| Type |
24V | Lithium | Battery | Active |
Optimize your battery performance with the BATT Active Balancer 24V. Designed for 2x12V battery banks, this reliable balancer enhances battery longevity by equalizing voltage levels, ensuring maximum efficiency. With its IP67 rating and low power consumption, it’s perfect for any application, providing peace of mind and extended service life for your lithium batteries.
