BDD DC/DC BUCK/MPPT SOLAR 5A+DIS

SKU: BDD DC/DC BUCK/MPPT SOLAR 5A+DIS

BRAND: Communica


5A MPPT Buck Solar Panel Charging Module with Display. Input Voltage: 6-36V DC. Output Voltage: 1.25-32V DC Continuously Adjustable. Output Current Range: 0.05-5A

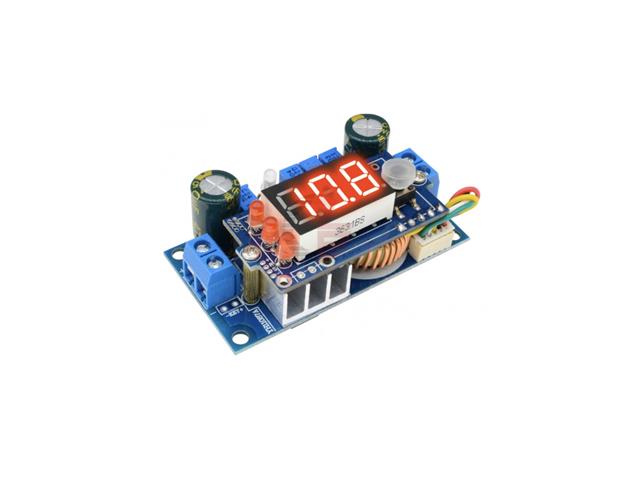

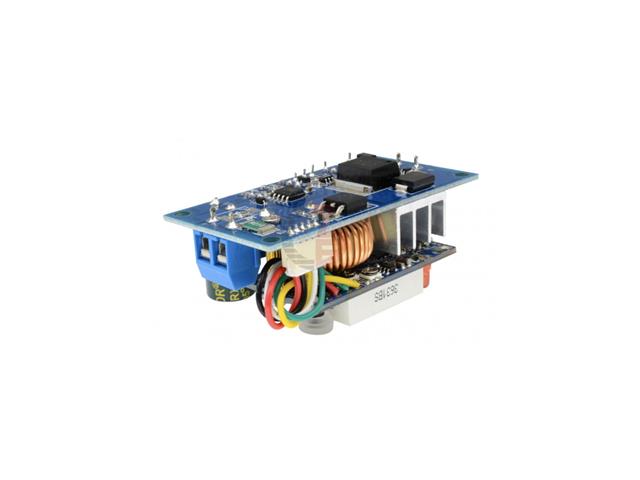

5A MPPT Buck Solar Panel Charging Module

Overview

The 5A MPPT Solar Panel Charging Module with Display has a variety of applications including a DIY voltage regulator, charging module for a variety of batteries, step down convertor and power supply for electronic devices.
Note: Detection module, please do not directly connect the output of negative electrode and the input of negative electrode

Specifications

  • Module Properties: Non-isolated buck module
  • Input voltage: 6-36V DC
  • Output voltage: 1.25-32V DC continuously adjustable (the default output 5V)
  • MPPT voltage setting range: 6-36V
  • Output current range: 0.05-5A (The default output current is 3A)
  • Turn lights output range: 0.01-5A (default turn lamp current 0.3A) the current range will be a little difference because the parts parameter error.
  • Multifunction double display: input voltage, output voltage, output current
  • Operating temperature: -40 to + 85 degree
  • Operating frequency: 180KHz
  • Conversion efficiency: up to 95% (efficiency, input & output voltage, current and pressure-related)
  • Short circuit protection: Yes
  • Over temperature protection: (automatically shut off the output after over temperature)
  • Input reverse polarity protection: None, (if necessary, please add the string into the diode)
  • Output anti-anti-irrigation protection: no, the output must be connected to the battery plus blocking diode, otherwise it will burn the module!
  • Charging indicator: charging red, bright green when fully charged. Turn lamp is the output current detection.
  • Size: 60 x 31 x 22 mm

Applications:

  • DIY a voltage Regulator, with constant current function, Short-circuit proof, can protect the load.
  • Power supply for electronic devices.
  • For a variety of battery chargers, can observe the state of charge.
  • Charger for various types of batteries, with MPPT function, can enhance the charging current to double. With a constant current and prevents battery overcharge, effective protection of the battery.
  • Can support high-power LED.

Package includes:

  • 1 x 5A MPPT Solar Controller

Additional Information

Device Charging Module
Type 5A | MPPT Buck | Solar Panel
