BDD ESP8266 RELAY 2CH 5/28V 30A

SKU: BDD ESP8266 RELAY 2CH 5/28V 30A

BRAND: Communica

Two Channel ESP8266 30A Relay WiFi Module Board. Based on the ESP-12F WiFi Module. Has A 30A Relay. Power Supply DC 7 - 28V OR 5V

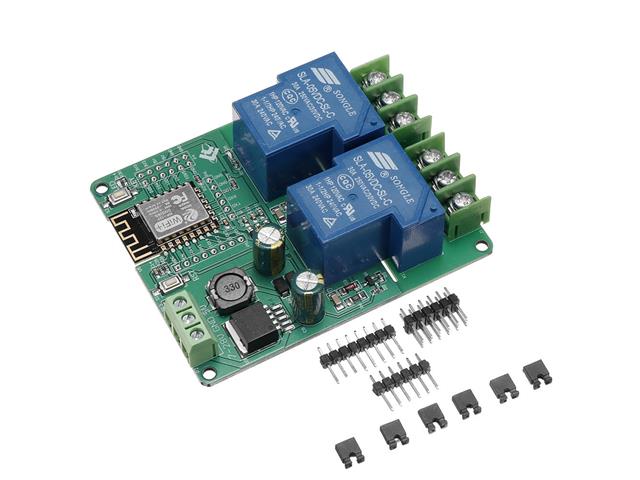

ESP8266 30A Relay WiFi Module Board


A dual channel relay WiFi module based on the ESP-12F WiFi module and two 30A relays
  • Mature and stable ESP-12F WiFi module on board, 4MB flash.
  • The I/O port of the WiFi module and the UART program transfer port are all driven out. It is convenient for secondary development.
  • Power supply DC7-28V / 5V.

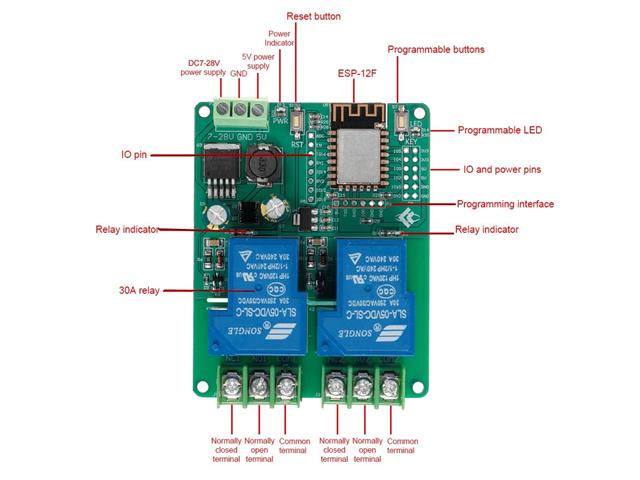

  • Onboard is a WiFi module RST reset button and a programmable button.
  • ESP-12F supports the use of Eclipse/IDE and other development tools and provides reference programs in development environment
  • On board are two 5V/30A relays which are suitable for controlling loads within AC 250V/DC30V voltage range.
  • Onboard a power indicator, a relay indicator. The ESP-12F comes with a programmable LED.
  • Board size: 83*68mm

Additional Information

Device WiFi Module Board
Type ESP8266 | 30A | Relay | 2CH
