One Channel Inching /Self-Locking WiFi Wireless Switch. USB 5V OR DC 7V-32V Power Supply. Please note that this device does not work with a 433MHz Remote.

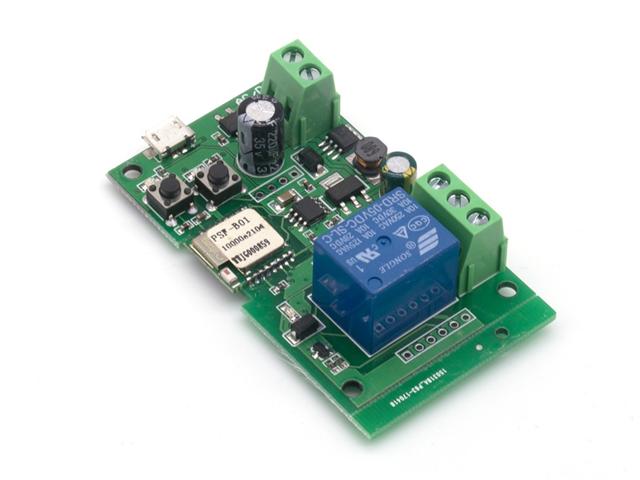

1 Channel WiFi Wireless Switch
Overview
This product is a wireless switch supports inching /self-locking mode. Users can add the device to the APP eWeLink in order to remotely control connected home appliances or devices. In self-locking mode, customers can remotely turn on/off connected devices immediately.
Features
- Remote ON/OFF–Turn electrical devices on/off from anywhere
- Power Supply–USB 5V OR DC 7V-32V
- Low Power Supply–5V/12V DC low voltage input
- App Support –Free iOS and Android mobile App eWeLink
- Sync Status–Real-time device status provided to App
- Timing–Set scheduled/countdown timers to turn on/off at specified time
- Share Control– Control your smart home together with your family
- Scene–Turn on/off a gang of devices with one tap
- Smart Scene–Triggered on/off by temp, hum or other environmental conditions from sensor
- Compatibility –Works perfectly with Amazon Alexa, Google Assistant, IFTTT, Google Nest

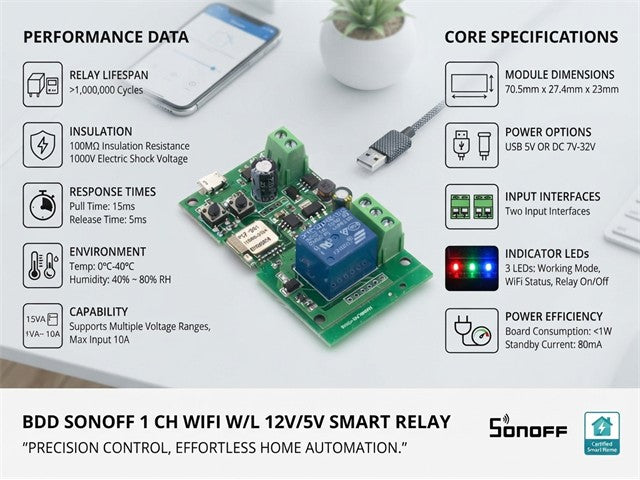

Specifications
- Dimensions : 70.5mmx27.4mmx23mm
- Power supply : USB 5V OR DC 7V-32V
- LEDs : 3 LEDs which indicate working mode, wifi status, relay on/off status respectively.
- Two Input Interfaces
- Board Consumption: <1W
- Standby Current : 80mA
- Max Input Current : 10A
- Supports to control different voltage ranges
- Relay Lifespan : more than one million times
- 100M Electrical Insulation Resistance
- Electric Shock Voltage : 1000V
- Relay Maximum Pull Time: 15ms
- Relay Maximum Release Time : 5ms
- Operating Temperature : 0ºC-40ºC(32°F-104°F)
- Operating Humidity : 40% ~ 80% RH
Downloads
Additional Information
Device |
Switch |
Type |
1 Channel | Inching /Self-Locking | WiFi | Wireless |
References |
EWeLink Introduction |
