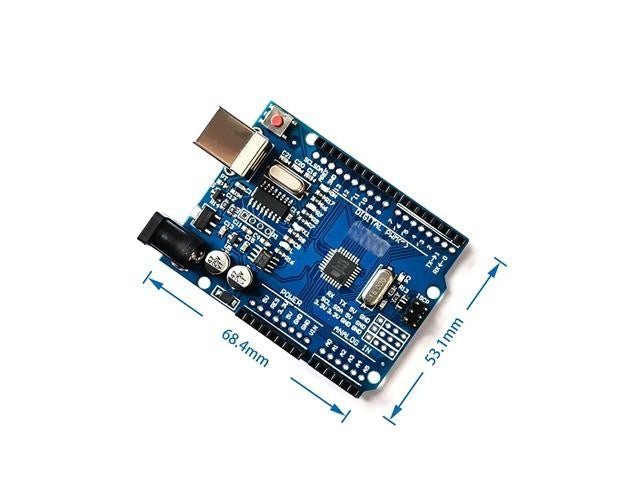

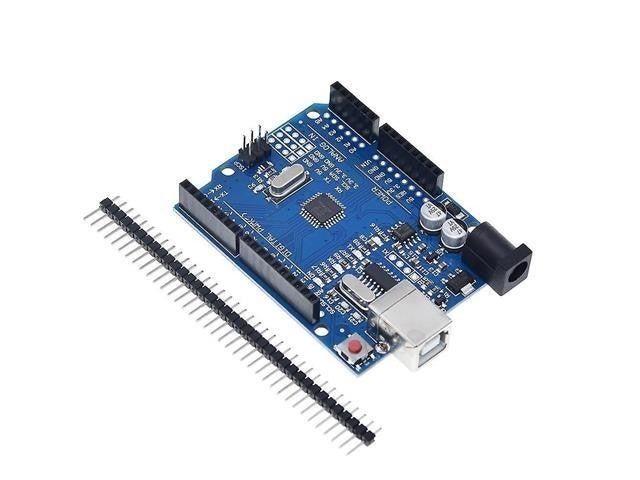

BDD UNO REV3 CH340

Name: BDD UNO REV3 CH340 - Communica [Part No: BDD UNO REV3 CH340]
Brand: Communica
SKU: BDD UNO REV3 CH340
Price: 108.70 ZAR
Availability: InStock

SKU: BDD UNO REV3 CH340

BRAND: Communica

R 125.01_{(inc VAT)}
R 108.70_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: IoT, Internet of things

Type: Development / Microcontroller Boards

Category: Iot, UNO REV3

Compatible with Arduino ATMEGA328 UNO REV3. Uses CH340 USB Driver

Compatible with Arduino ATMEGA328 UNO REV3

Overview

This is the new Compatible with Arduino Uno R3. In addition to all the features of the previous board, the Uno now uses an ATmega16U2 instead of the 8U2 found on the Uno (or the FTDI found on previous generations). This allows for faster transfer rates and more memory. No drivers needed for Linux or Mac, inf file for Windows is needed and included in the Arduino IDE.

Specifications

Microcontroller : ATmega328P
Operating Voltage : 5V & 12V
Input Voltage (recommended) :7-12V
Input Voltage (limits) : 6-20V
Digital I/O Pins : 14 (of which 6 provide PWM output)
Analog Input Pins : 6
DC Current per I/O Pin : 40 mA
DC Current for 3.3V Pin : 50 mA
Flash Memory : 32 KB (ATmega328) of which 0.5 KB used by bootloader
SRAM : 2 KB (ATmega328)
EEPROM : 1 KB (ATmega328)
Clock Speed : 16 MHz

Additional Information

Device	UNO REV3
Type	ATMEGA328

Unlock your creativity with the BDD UNO REV3 CH340, a powerful Arduino-compatible microcontroller. Featuring the efficient ATmega328P, this board offers faster transfer rates, enhanced memory, and supports various input voltages. Ideal for both beginners and advanced makers, it’s your gateway to endless project possibilities!
