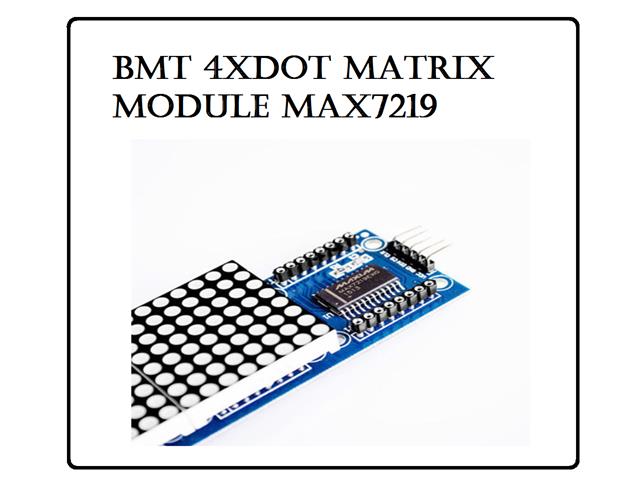

BMT 4XDOT MATRIX MODULE MAX7219

SKU: BMT 4XDOT MATRIX MODULE MAX7219

BRAND: Communica


Four Dot Matrix Display 32X8 Using MAX7219 Driver

Four Dot Matrix Display 32X8

Features

    • A Single Module CAN DRIVE A 8×8 Dot Matrix Common Cathode
    • Module Operating Voltage: 5V
    • Module Size: Length 12.8 CM X 3.2 CM Wide and 1.3 CM HIGH X
    • With 16 Fixing Screw Holes, Diameter 3mm
    • Module with Input and Output Interfaces, Support for Cascading Multiple Modules

Wiring:

    • The left side of the module is the input port, and the right is the output port.
    • Control of a single module, the input port only need to receive CPU.
    • The more a module cascade and input end of the first module is connected with the CPU and input end of the input end of the output end is connected to the second module, output terminal of the second module connected with the three modules, and so on.
    • For example : 51 SCM
      • VCC-5V
      • GND-GND
      • DIN-P2.2
      • CS-P2.1
      • CLK-P2.0

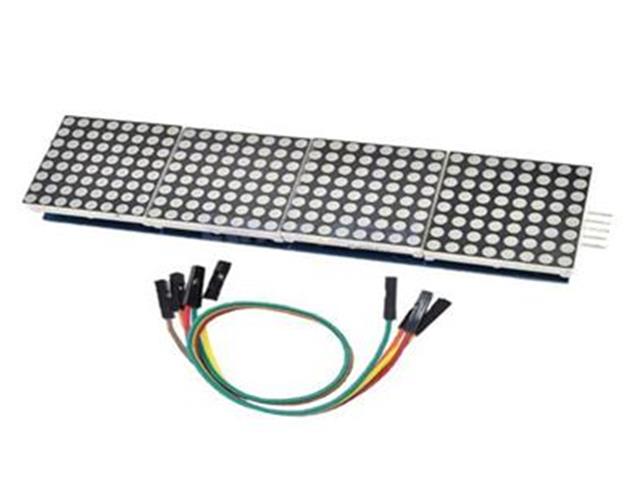

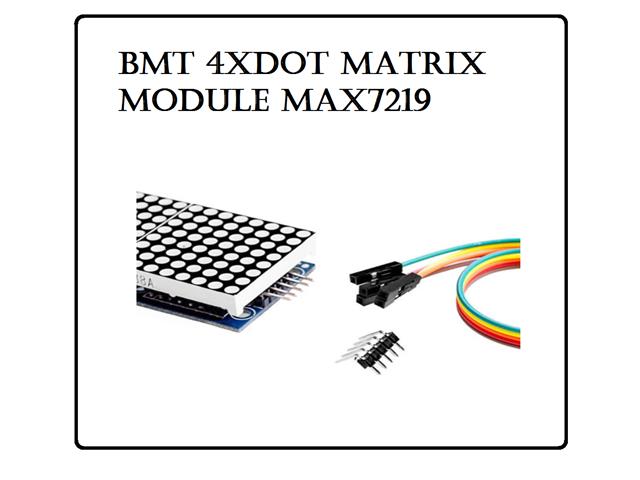

Package Included:

  • 1 x MAX7219 Dot Matrix Module
  • 1 x 5pin Dupont Cable

Additional Information

Device Matrix Display
Type Four | Dot | 32X8
