BMT AC CURRENT SENSOR CLAMP-100A

Name: BMT AC CURRENT SENSOR CLAMP-100A - Communica [Part No: BMT AC CURRENT SENSOR CLAMP-100A]
Brand: Communica
SKU: BMT AC CURRENT SENSOR CLAMP-100A
Price: 108.70 ZAR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: BMT AC CURRENT SENSOR CLAMP-100A

BRAND: Communica

R 125.01_{(inc VAT)}
R 108.70_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: IoT, Internet of things

Type: Sensors

Category: Current Sensors, Iot

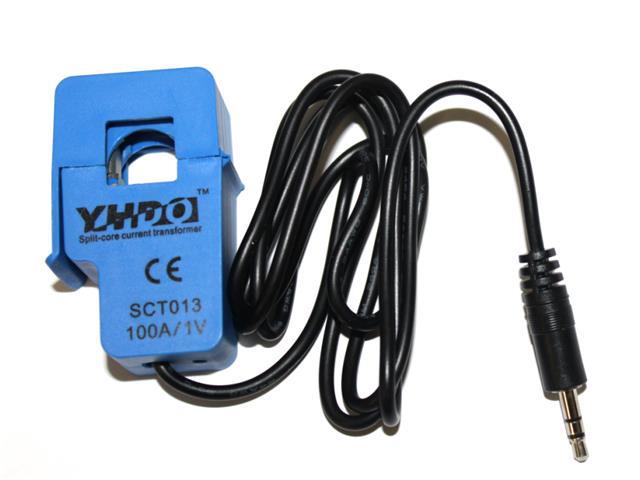

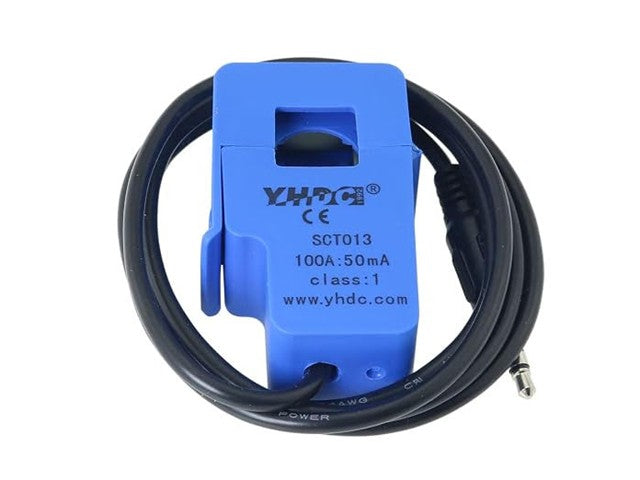

100A Non-Invasive AC Current Sensor Clamp

Non-Invasive AC Current Sensor Clamp

Overview

A non-invasive split-core current transformer designed to safely measure alternating current up to 100A without needing to cut or disconnect wires

Features

Suitable for Current Measuring
Monitoring and Protection of AC Motors
Lighting Equipment
Air Compressor

Specifications

Rated Input Current (RMS): 100A
Rated Output: 50mA
Turns Ratio: 1:2000
Accuracy: ±1 %
Linearity: ≤0.2 %
Sampling Resistance (Max): 10Ω
Working Voltage (Max): 660V
Frequency Range: 50Hz – 1kHz
Opening Size: 13mm x 13mm
Mounting Type: Free Hanging
Core Material: Ferrite
Cable Length: ~1 Meter
Connector Type: 3.5mm Audio Jack
Dielectric Strength 3.5kV 50Hz 1min
Fire Resistance Rating: UL94-V0
Certifications / Standards: GB1208-2006
Working Temperature Range: ~(-25℃ to +70℃)
Storage Temperature Range: ~(-30℃ to +90℃)

Additional Information

Device	Sensor Clamp
Type	Non-Invasive \| AC Current

Discover the BMT AC Current Sensor Clamp-100A, your ideal solution for non-invasive AC current measurement. Perfect for DIY energy monitoring, this clamp easily connects to microcontrollers like Arduino, ensuring accurate readings for motors, lighting, and more. With a robust design and a 100A capacity, it offers reliability and safety for all your electrical projects.
