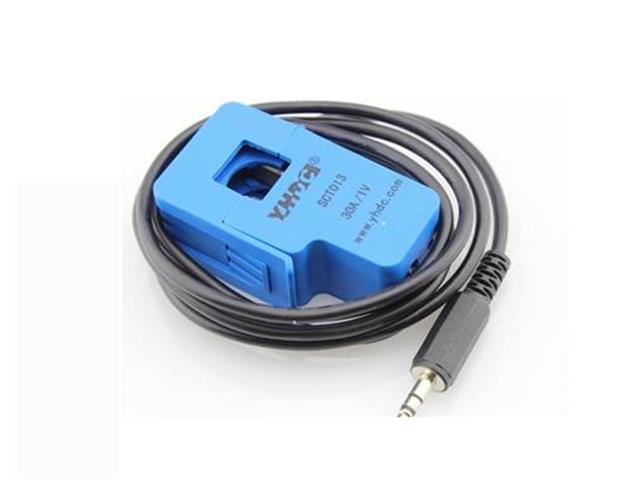

The AC current sensor is based on Current transformers, it transforms the big AC current to little, and then convert to voltage with the build-in resistor so users can get the AC current value via measuring the output voltage with any microcontroller such as Arduino. The split core type makes this sensor suitable for DIY usage such as energy monitoring for house & building.

• Input Current : 0~30A AC
• Output Mode : 0~1V
• Non-linearity : ±1%
• Turn Ratio : 1800 to 1
• Building sample Resistance : 62 ohm
• Resistance Grade : Grade B
• Work Temperature : -25°C ~ +70°C
• Dielectric Strength (between shell and output) : 1000V AC/1min 5mA
• Lead Length : 1m
• Size : 13x13mm

Device	Sensor Clamp
Type	Non Invasive | AC | Current
References	CT sensors - An introduction CT sensors - Interfacing with an Arduino How to build an Arduino energy monitor
