BMT ADJ DC/DC MODU 3A I/P4,5-40V

Name: BMT ADJ DC/DC MODU 3A I/P4,5-40V - Communica [Part No: BMT ADJ DC/DC MODU 3A I/P4,5-40V]
Brand: Communica
SKU: BMT ADJ DC/DC MODU 3A I/P4,5-40V
Price: 20.87 ZAR
Availability: InStock

SKU: BMT ADJ DC/DC MODU 3A I/P4,5-40V

BRAND: Communica

In Stock
R 24.00_{(inc VAT)}
R 20.87_{(ex VAT)}

Collections: IoT, Internet of things, New Arrivals

Type: Power, Battery & Solar

Category: DC DC Modules, Iot, New

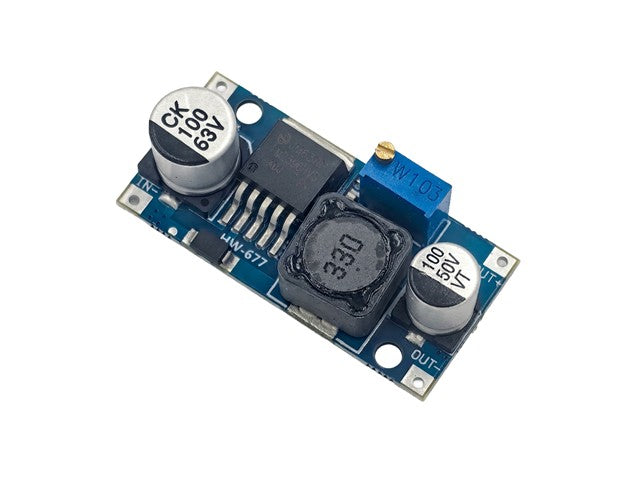

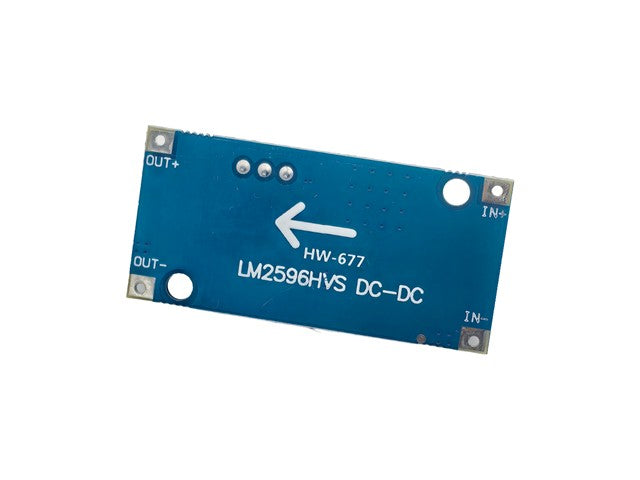

DC-DC Buck Module. LM2596HV 4.5-40V Adjustable LM2596 Step-Down Module, (Note: Maximum of 50V input for a very short time)

Adjustable LM2596 Step-Down Module

Specifications

The length is 45x Wide 24x High 11mm (Including Potentiometer)
Input Mode: IN+ Input Positive, In- Input Negative
Output Mode: OUT+ Output Positive, OUT-Output Negative
(Note: Maximum of 50V input for a very short time)
Adjustment Mode: Firstly connect the Input Power Supply (Between 4.5-40V) and then use the Multimeter to Monitor the Output Voltage and Adjust the Potentiometer (Generally Turn the Booster Clockwise, Reverse the Buck)
Output Voltage: (3-35V) Continuously Adjustable (No-load Debugging is Recommended).
Pressure Difference: At Least 1.5V
Output Current: Rated Current 2A, No more than 3A
Output Power: No more than 15W
Conversion Efficiency: 92% Or less (The higher the Output Voltage, the Higher the Efficiency), Static Power Consumption is only about 6MA
Connection Mode: Welding, After add pin can be directly welded on the PCB
Working Temperature: Industrial Grade (- 40 TO + 85 )
Load Regulation: ±1%
Voltage Regulation: ±0.5%

Additional Information

Device	Module
Type	Adjustable \| LM2596 \| Step-Down
