BMT CAPACITIVE TOUCH SWITCH MODU

BMT CAPACITIVE TOUCH SWITCH MODU

BMT CAPACITIVE TOUCH SWITCH MODU

SKU: BMT CAPACITIVE TOUCH SWITCH MODU

BRAND: Communica

Sold Out
R 11.99_{(inc VAT)}
R 10.43_{(ex VAT)}

Collections: IoT, Internet of things

Category: Iot, Pushbutton Switches, Touch Sensors

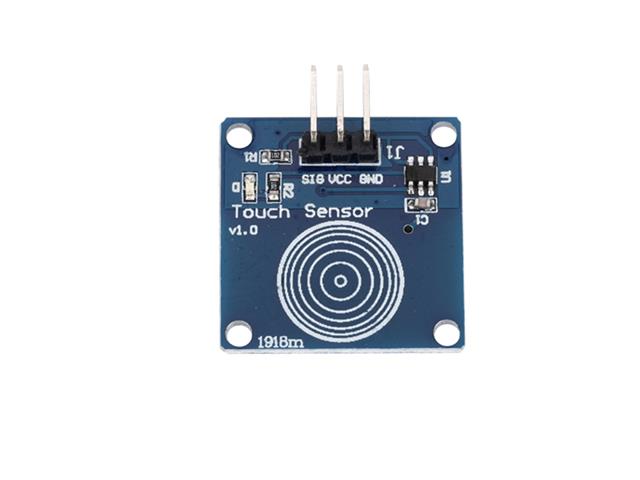

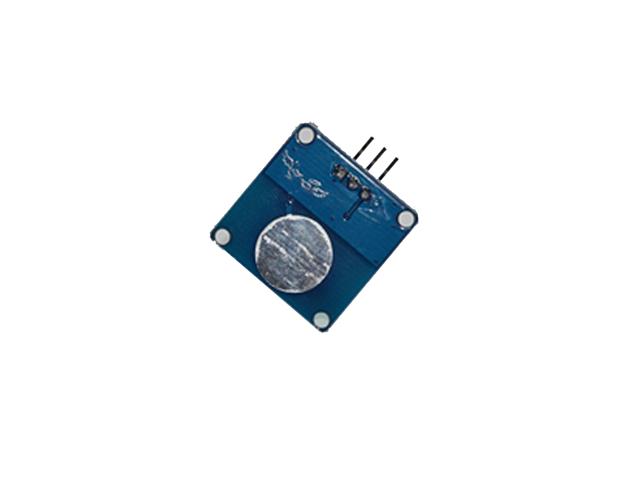

Capacitive Touch Switch Module using Tontek TTP223B Detector IC

Capacitive Touch Switch Module

Features

Touch sensor module touch switch touch switch sensor
The touch sensor
When touching, S outputs a high lights; touch again, S will output low, lights; so repeatedly!
Power Range: 3-5V
Current: 5MA
Interface: G (GND), V (vcc), S (signal)

Specifications

Power Supply Voltage VCC : 2.0V-5.5V
Output High VOH : 0.8VCC
Output Low VOL : 0.3VCC
Output Pin Sink Current : 8mA
Output Pin Pull-up Current : 4mA
Response Time (low power mode) : 220mS
Response Time (touch mode) : 60mS
Size : 24x24x7.2mm

Additional Information

Device	Switch Module
Type	Capacitive \| Touch
