This module is ideally suited to adding wireless RFID compatibility to your project. This is a matched set combining a read and write module to interact with cards and devices. This module allows you to build in wireless communication and control, such as operating a remote access port.

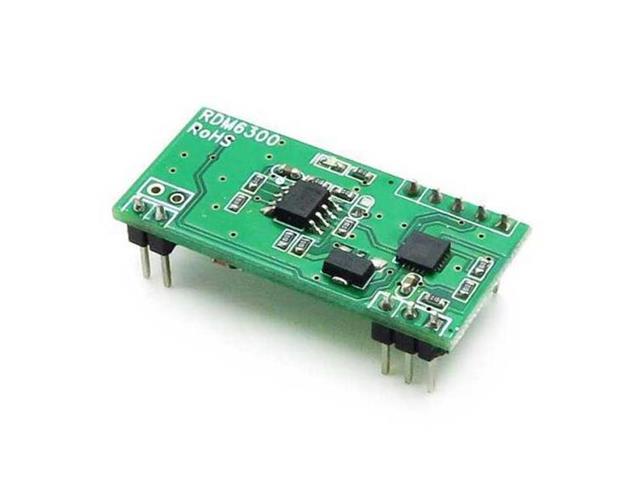

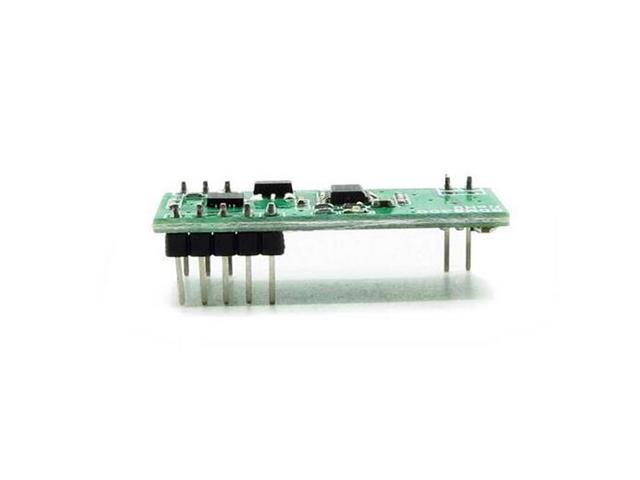

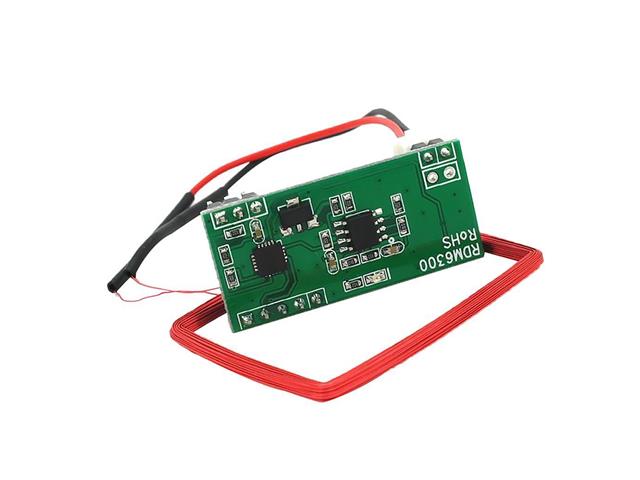

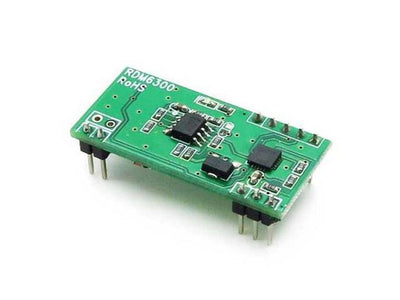

The RDN6300 module operates on a frequency of 125kHz. Communication with the module is done through TTL control connected to your microcontroller. These modules are ideal for use with the Arduino or Raspberry Pi microcontroller ranges.

• Frequency: 125kHz
• Supported card: EM/TK 4100, EM/TK4102, EM4200 or compatible
• Baud rate: 9600bps (TTL RS232 format)
• Power: 5V DC
• Current consumption: <50mA
• Size: 38.5mm x 19mm x 10mm
