Overview

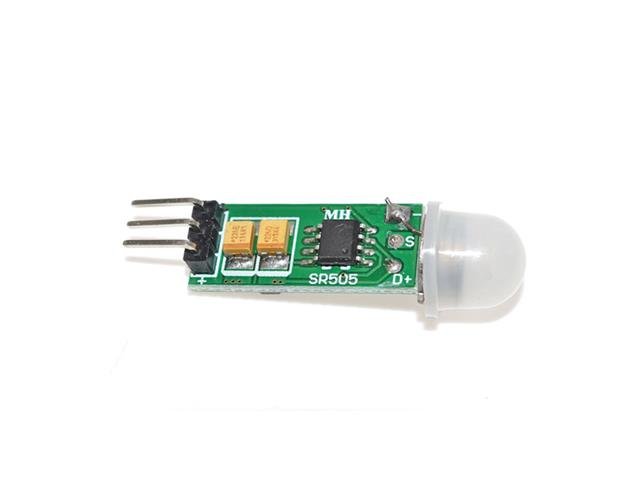

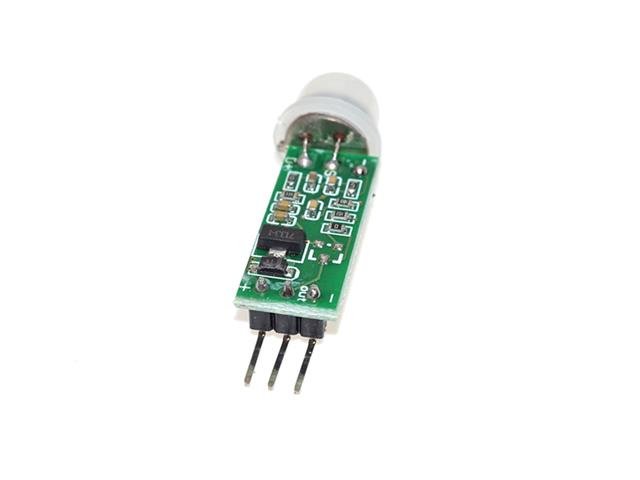

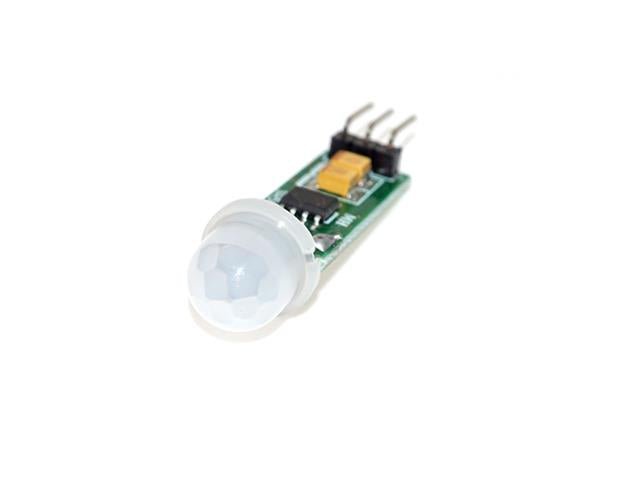

HC-SR505 Mini PIR Motion Sensor is based on infrared technology and it can automatic control by itself with high sensitivity and high reliability. Because of the minimum size and low-power operation mode, it widely used in various of automatic electronic equipment, especially battery-powered automatic products.
Features
- Automatic Control
- Minimum size
- Repeatable Trigger
- Wide range of operating voltage
- Low-power
- Output high signal
Applications :
- Body induction lamps
- Body induction toys
- Security Products
- Industrial automation and control
- Auto-sensing of electrical equipment
- Battery-powered automatic control
Specifications
- Operating voltage range : DC4.5-20V
- Quiescent Current : <60uA
- Level output : Gao 3.3V / Low 0V
- Trigger : reusable trigger (default)
- Delay Time : The default 8S + -30%
- Board Dimensions : 10 x 23mm
- Induction angle: <100 degrees cone angle
- Sensing distance : 3 meters
- Working temperature : -20 to +80 degrees
- Sensor Lens Dimensions : Diameter : 10mm
Additional Information
Device |
Motion Sensor |
Type |
Passive | Infra-red (PIR) |
