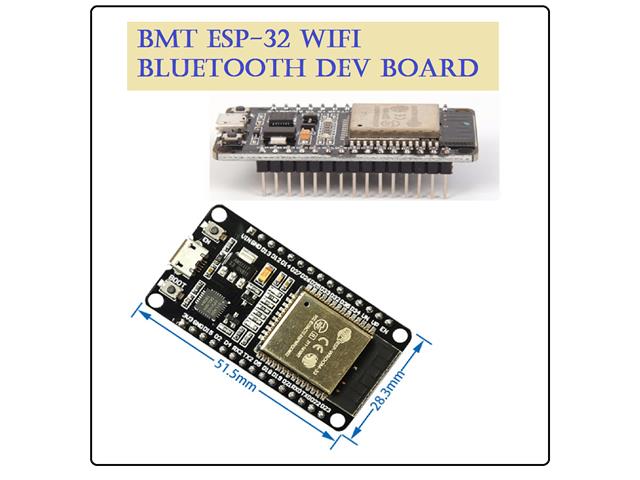

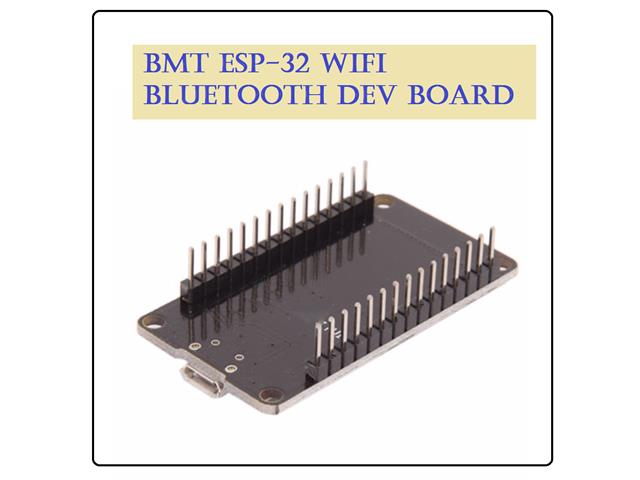

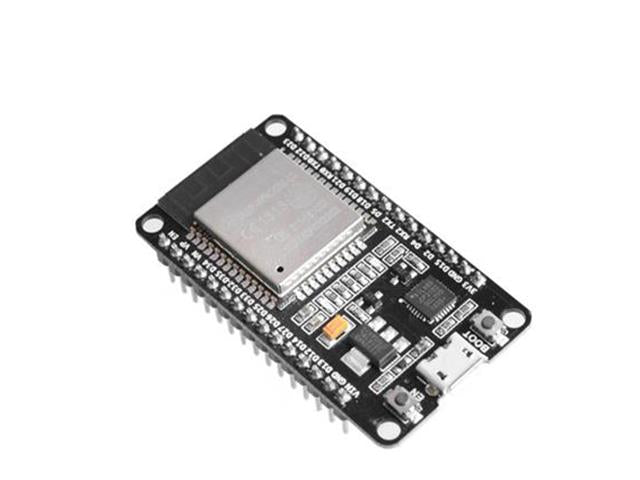

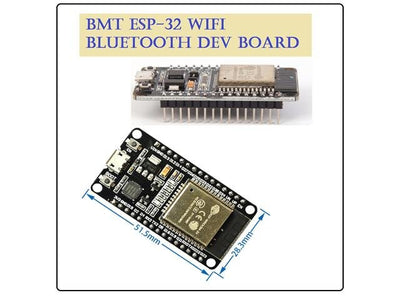

BMT ESP-32 WIFI B/T DEV BOARD

SKU: BMT ESP-32 WIFI B/T DEV BOARD

BRAND: Communica


ESP-32 Wireless WiFi Bluetooth Development Board 2.4GHZ CP2102 Micro USB Dual Core Module

WiFi Bluetooth Development Board

Features

  • ESP32 Development board, wireless WiFi+ bluetooth 2 in 1 dual core CPU low power
  • ESP32 Integrates antenna switch, RF balun, power amplifier, low noise amplifier, filter and power management module. the whole solution occupies the least printed circuit board area. 2.4 GHZ Wi-Fi plus bluetooth dual mode chip
  • Adopting tsmc low power 40nm technology, the power consumption and RF performance are the best, safe and reliable, and easy to extend to various applications.
  • Module do output can be MCU I / O port is directly connected through the microcontroller can detect dry reed pipe trigger state;
  • Output and relay module do in terminal connected to form a high-power reed switches, high voltage direct control.

Specifications

  • ESP32-WROOM-32 contains two low-power Xtensa 32-bit LX6 microprocessors
  • 448 KBytes ROM for booting and core functions
  • 520 KBytes on-chip SRAM
  • 8 KBytes SRAM in RTC SLOW
  • 8 KBytes SRAM in RTC FAST
  • 1 Kbit of EFUSE, 256 bits MAC
  • WiFi: 802.11 b/g/n/d/e/i/k/r (802.11n up to 150 Mbps)
  • Bluetooth v4.2 BR/EDR and BLE specification
  • Wi-Fi mode Station/softAP/SoftAP+station/P2P
  • Security WPA/WPA2/WPA2-Enterprise/WPS
  • Encryption AES/RSA/ECC/SHA
  • IPv4, IPv6, SSL, TCP/UDP/HTTP/FTP/MQTT
  • Interfaces: SD-card, UART,SPI,SDIO,I2C,LED PWM,Motor PWM,I2S ,IR,GPIO, capacitive touch sensor, ADC, DAC, Hall sensor, temperature sensor
  • Operating temperature -40 + 85C
  • Operating voltate: 2.2-3.6V
  • Consumption: 80 mA typ
  • Dimensions: 18 mm(L) x 25.5 mm(W) x 2.8 mm(H)
  • Pin pitch:1.27mm
  • Shielding can height: 2 mm
  • PCB tickness: 0.8±0.1mm

Additional Information

Device Development Board
Type WiFi | Bluetooth
References

Please refer to the following links on the internet to assist with the ESP32 development board :

Unlock endless possibilities with the BMT ESP-32 WiFi B/T Dev Board. This powerful dual-core module combines Wi-Fi and Bluetooth functionalities, enabling seamless connectivity for your projects. With low power consumption and a compact design, it's perfect for developers looking to create innovative IoT solutions. Elevate your tech game today!
