BMT ETHERNET SHIELD W5100 R3

Name: BMT ETHERNET SHIELD W5100 R3 - Communica [Part No: BMT ETHERNET SHIELD W5100 R3]
Brand: Communica
SKU: BMT ETHERNET SHIELD W5100 R3
Price: 247.83 ZAR
Availability: InStock

SKU: BMT ETHERNET SHIELD W5100 R3

BRAND: Communica

In Stock
R 285.00_{(inc VAT)}
R 247.83_{(ex VAT)}

Collections: IoT, Internet of things

Type: Communications

Category: Ethernet Module, Iot

Arduino Compatible Ethernet Shield, with Wiznet W5100 R3 Network for UNO and Mega 2560 with Micro-SD Card Slot.

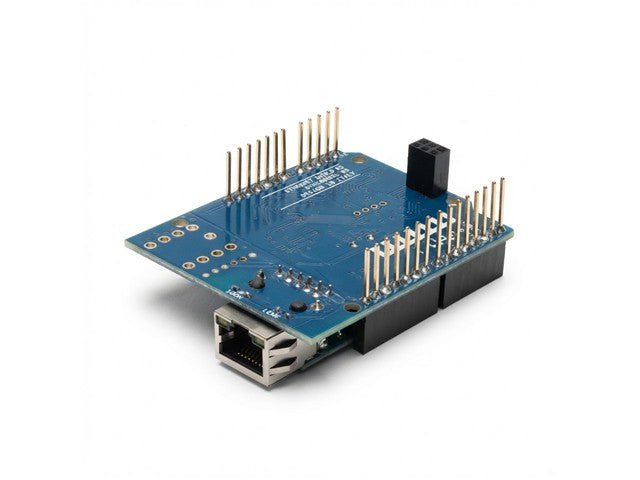

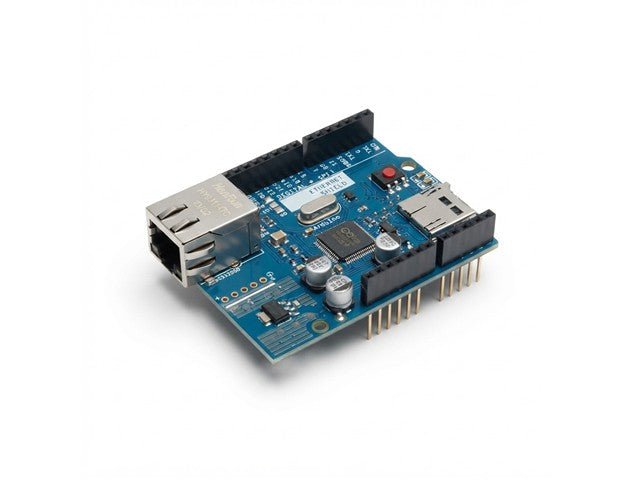

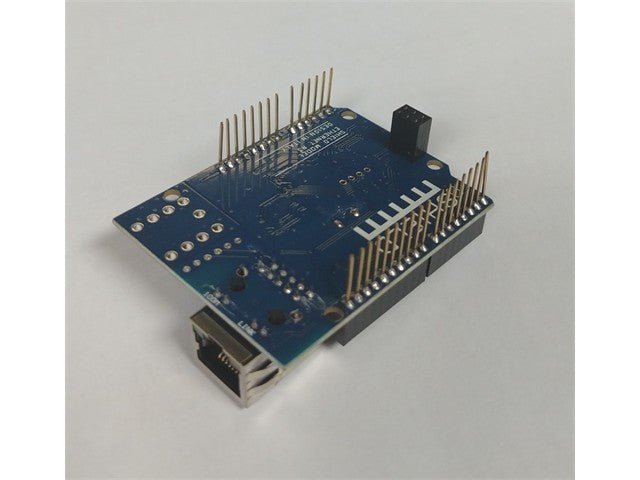

Wiznet W5100 R3 Network Ethernet Shield

Features

This ethernet shield is based on the Wiznet W5100 ethernet chip providing a network (IP) stack capable of both TCP and UDP.
The arduino ethernet shield supports up to four simultaneous socket connections.
Use the ethernet library to write sketches which connect to the internet via a standard RJ45 ethernet jack using the shield.
The latest revision of the shield adds a micro-sd card slot, which can be used to store files for serving over the network.
It is compatible with the uno and mega (using the ethernet library).
You can access the on-board sd card slot using the sd library which is included in the current build.
The latest revision of the shield also includes a reset controller, to ensure that the w5100 ethernet module is properly reset on power-up.
Previous revisions of the shield were not compatible with the mega and need to be manually reset after power-up.
The reset button on the shield resets both the W5100.

Additional Information

Device	Ethernet Shield
Type	Wiznet \| W5100 \| R3 \| Network
