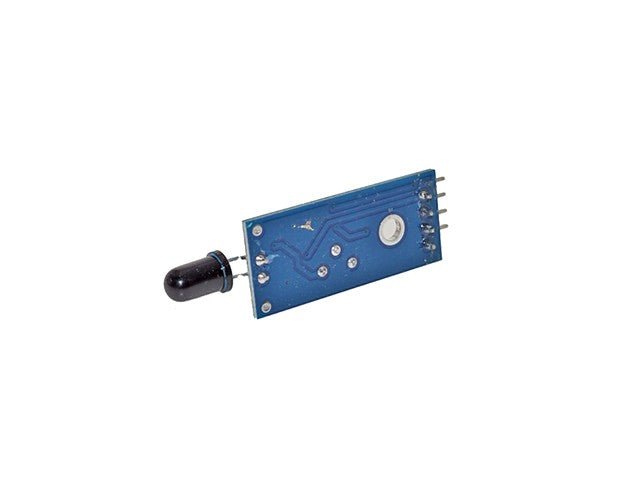

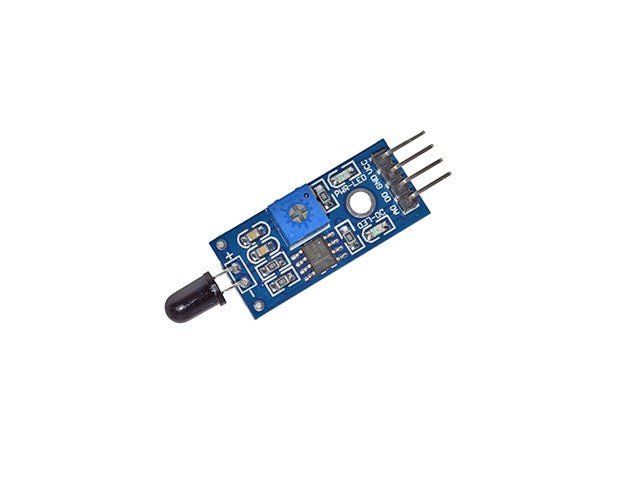

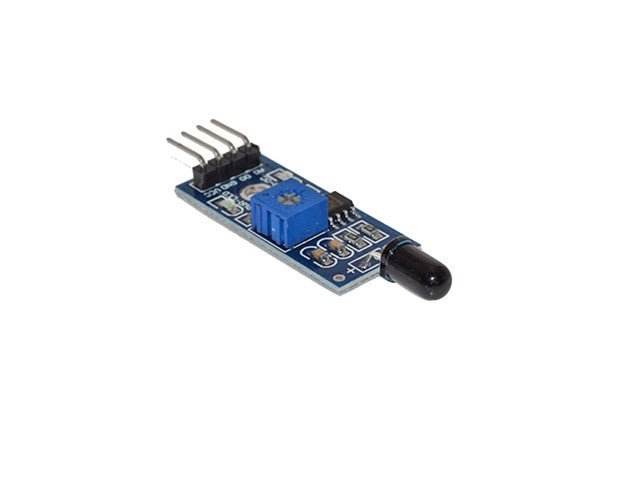

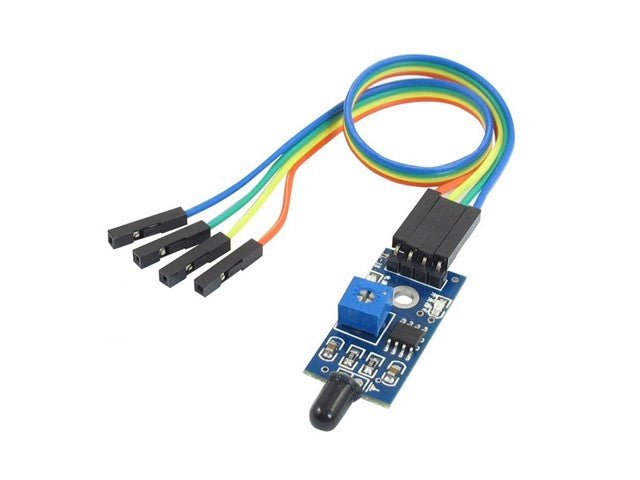

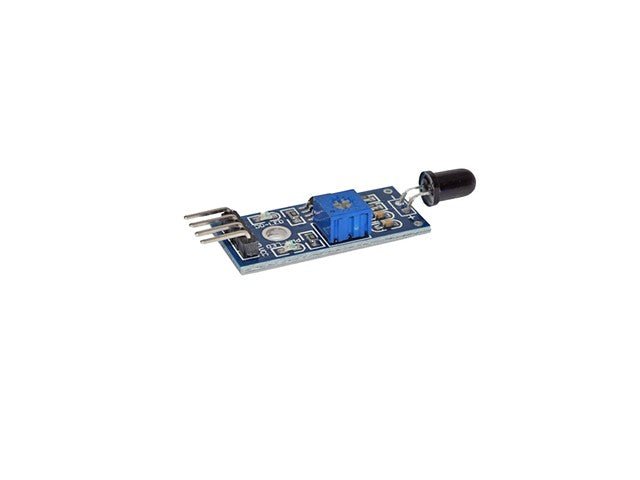

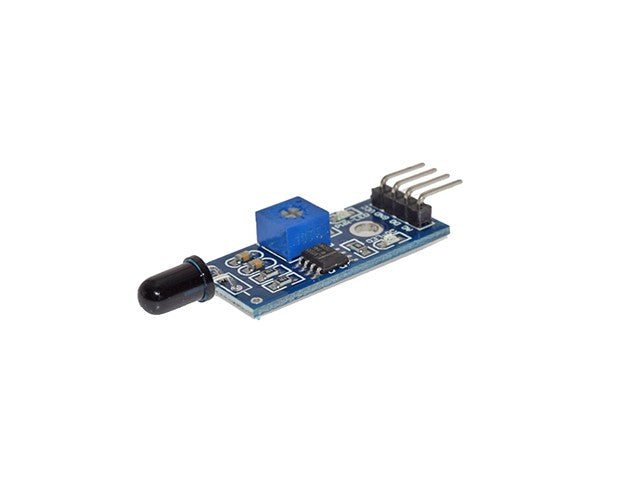

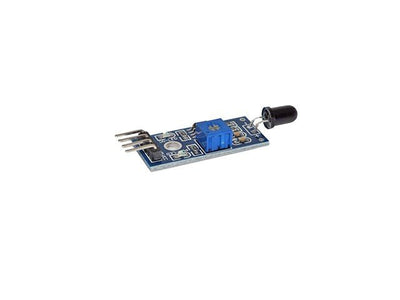

BMT FLAME SENSOR MODULE

Name: BMT FLAME SENSOR MODULE - Communica [Part No: BMT FLAME SENSOR MODULE]
Brand: Communica
SKU: BMT FLAME SENSOR MODULE
Price: 13.04 ZAR
Availability: InStock

SKU: BMT FLAME SENSOR MODULE

BRAND: Communica

In Stock
R 15.00_{(inc VAT)}
R 13.04_{(ex VAT)}

Collections: IoT, Internet of things, New Arrivals

Type: Sensors

Category: Flame Sensors, Iot, New

Digital IR Infrared Flame Detection Sensor

Overview

This module is sensitive to the flame, but also can detect ordinary light. Usually used as a flame alarm. On board, digital output interface can be directly connected with the microcontroller IO.

Features

Detects a flame or a light source of a wavelength in the range of 760nm-1100 nm
Detection angle about 60 degrees, it is sensitive to the flame spectrum.
Accuracy adjustable
Operating voltage 3.3V ~ 5V
Output
- Analog voltage output
- Digital switch outputs (0 and 1)
With a mounting screw hole
Power indicator (red) and digital switch output indicator (green)
Comparator chip LM393, it is stable
Flame detection distance, lighter flame test can be triggered within 0.8m, if the intensity of flame is high, the detection distance will be increased.

Additional Information

Device	Sensor
Type	Digital IR Infrared \| Flame Detection
