Overview
In general, we do not need to measure temperature too high, but in some experiments or industrial, ask us to accurately measure temperature, Then this MAX6675 can play a important role. The MAX6675 performs cold-junction compensation and digitizes the signal from a Type-K thermocouple. the data is output in a 12-bit resolution, SPI™-Compatible, Read-only format. This converter resolves temperatures to 0.25°C, Allows readings as high as +1024°C, and exhibits thermocouple accuracy of 8LSBS for temperatures ranging from 0°C to +700°C.
Features

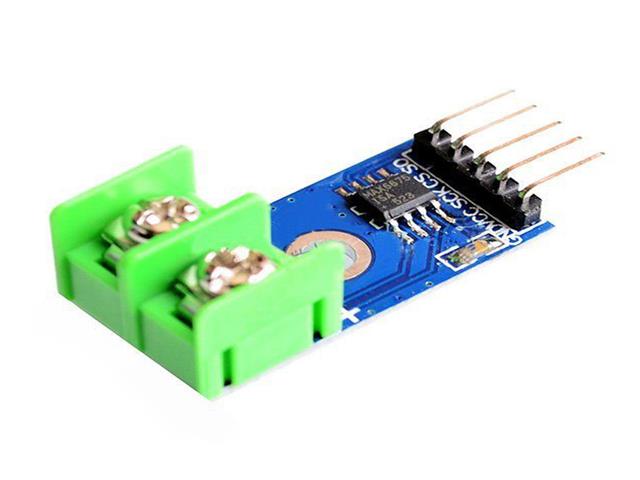

- DC 5V MAX6675 Module + K TYPE Thermocouple Temperature Sensor M6 for Arduino
- Direct digital conversion of Type -K thermocouple output
- Cold-Junction Compensation
- SIMPLE SPI-Compatible Serial Interface
- 12-Bit, 0.25°C Resolution
- Open thermocouple detection

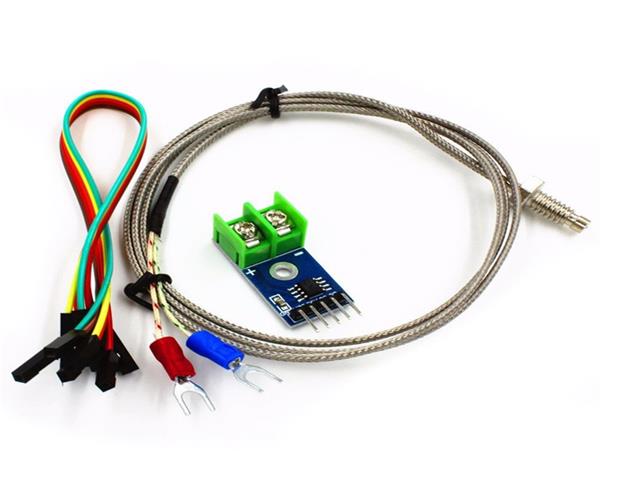

Package List
- K-Type thermocouple x 1
- MAX6675 x 1
- Jumper Wire x 5
Specifications
- Interface: SPI
- Test Temperature Range: 0°C – 700°C, The Converter Temperature Resolution IS 0.25°C
- Operating Voltage Range: 3.0 – 5.5V
- Operating Current: 50mA
- Operating Temperature Range: ?20°C – 85°C
- Module Size: 15mm x 28mm, with a 3mm Diameter Screw Holes
- Application: Industrial, Appliances, HVAC
Additional Information
| Device |
Thermocouple |
| Type |
K-Type | Stud |
