BMT MAX9814 MICROPHONE AGC AMP - Communications -

BMT MAX9814 MICROPHONE AGC AMP

Name: BMT MAX9814 MICROPHONE AGC AMP - Communica [Part No: BMT MAX9814 MICROPHONE AGC AMP]
Brand: Communica
SKU: BMT MAX9814 MICROPHONE AGC AMP
Price: 51.30 ZAR
Availability: InStock

SKU: BMT MAX9814 MICROPHONE AGC AMP

BRAND: Communica

R 59.00_{(inc VAT)}
R 51.30_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: IoT, Internet of things, New Arrivals

Type: Communications

Category: Iot, Microphone Module, New

MAX9814 Microphone Module with Automatic Gain Control (AGC). Three Gain Settings. VCC 2.7-5.5V

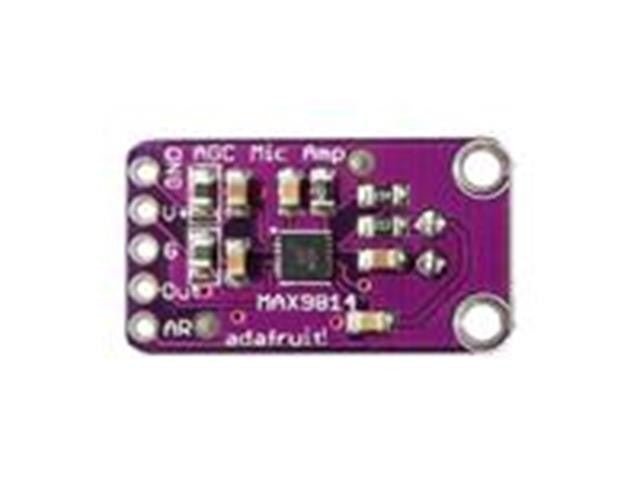

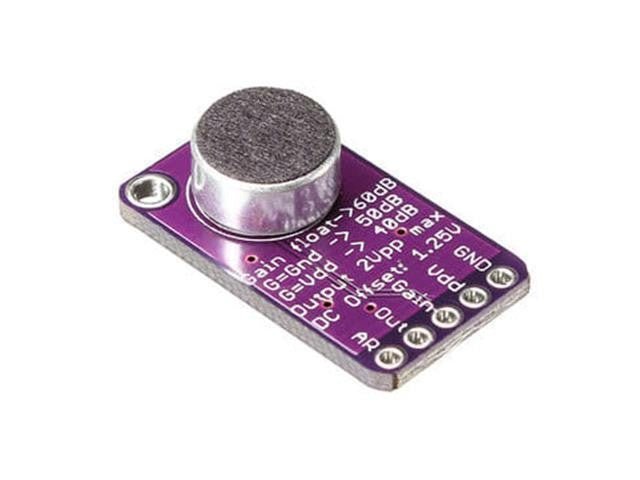

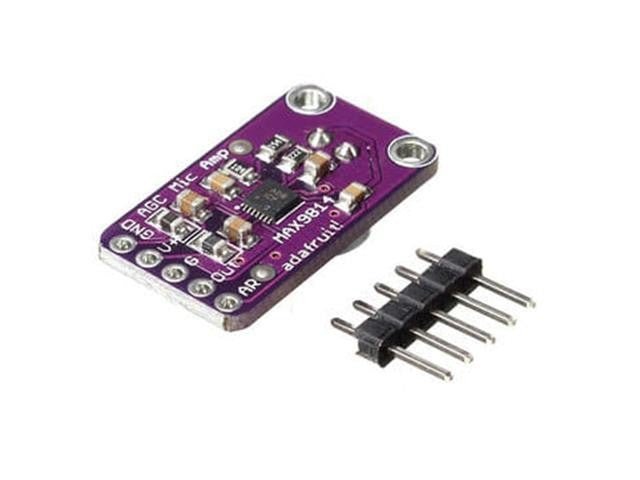

MAX9814 Microphone Module

Specifications

Automatic gain control (AGC)
3 gain Settings (40dB, 50dB, 60dB)
Programmable action time
Programmable action and release time ratio
2.7V to 5.5V power voltage range
Low input noise density 30nV/
Low THD: 0.04% (typical value)
Low power off mode
Built-in 2V low noise microphone bias
Provides a space-saving 14 pin TDFN (3mm x 3mm) package
Temperature range from -40°C to +85°C expansion stage

Additional Information

Device

Microphone Module

Enhance your audio projects with the BMT MAX9814 Microphone AGC Amp, featuring automatic gain control for crystal-clear sound. With three adjustable gain settings and low noise performance, it delivers exceptional audio quality in a compact design, perfect for any application. Experience reliable performance and ease of integration in your next sound project.
