BMT RELAY BOARD 2CH 12V RED H/L

Name: BMT RELAY BOARD 2CH 12V RED H/L - Communica [Part No: BMT RELAY BOARD 2CH 12V RED H/L]
Brand: Communica
SKU: BMT RELAY BOARD 2CH 12V RED H/L
Price: 39.13 ZAR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: BMT RELAY BOARD 2CH 12V RED H/L

BRAND: Communica

R 45.00_{(inc VAT)}
R 39.13_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: IoT, Internet of things

Type: Relay Boards

Category: 2 Channel Relay Boards, Iot

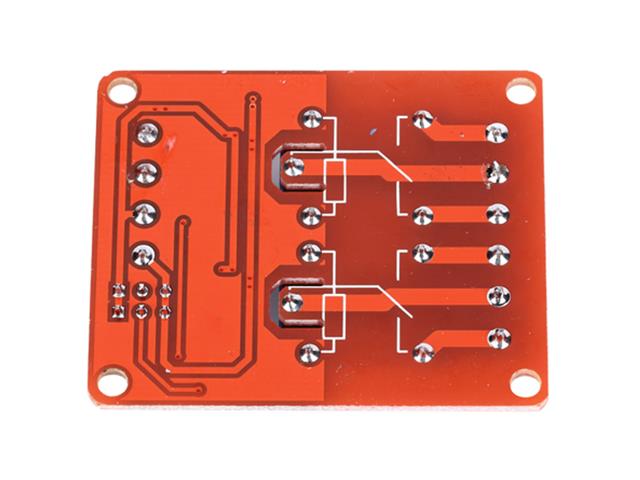

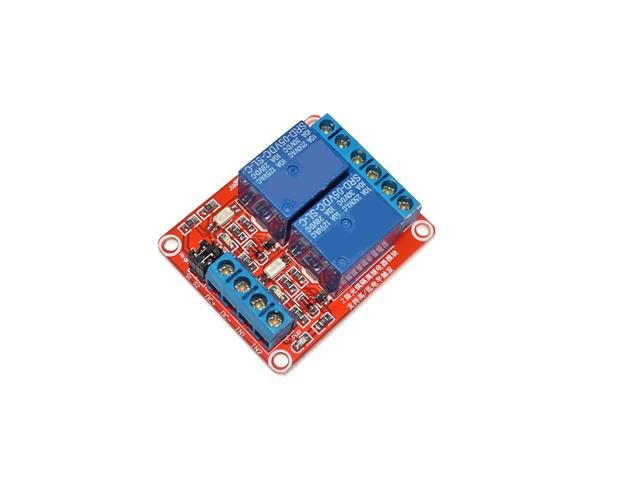

2 Channel Relay Module 12V, Maximum Load: AC 250V / 10A, DC 30V / 10A; The Module Supports High or Low Level Triggered Current, Set by jumper. Module Size: 50mm x 26mm x 18.5mm (L x W x H)

2 Channel Relay Module 12V

Features

Maximum load: AC 250V/10A, DC30V/10A
SMD optocoupler isolation, strong driving ability, stable performance; trigger current 5mA
the module voltage 5V
each channel module can be set high or low triggered by jumper
Fault-tolerant design, even if the control line is broken, the relay will not operate
Power indicator (green), 4 relay state indicator (red)
Interface design user-friendly, all interfaces are available through the wiring terminal direct connection leads, very convenient
Module size: 73 x 50 x 18.5mm (L x W x H)
Has 4 mounting bolts holes, hole 3.1mm, spacing 67mm x 44.5mm

Specifications

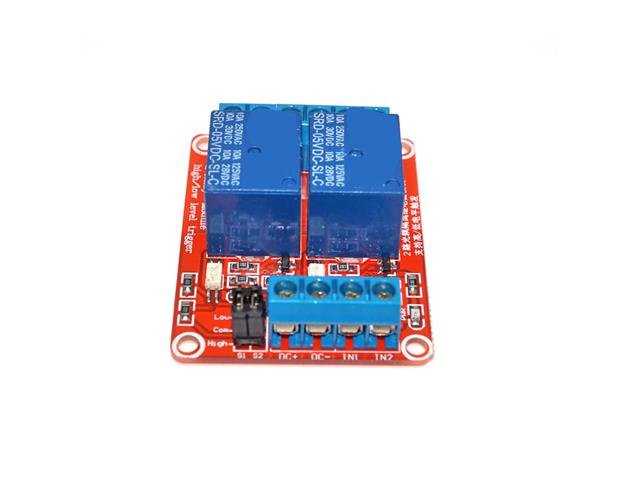

Interface :

DC +: positive power supply (12V)
DC-: negative power connection
IN1: 1 channel signal to trigger the end , you can set a high or low level control relay
IN2: 2 -channel signal to trigger the end , you can set a high or low level control relay

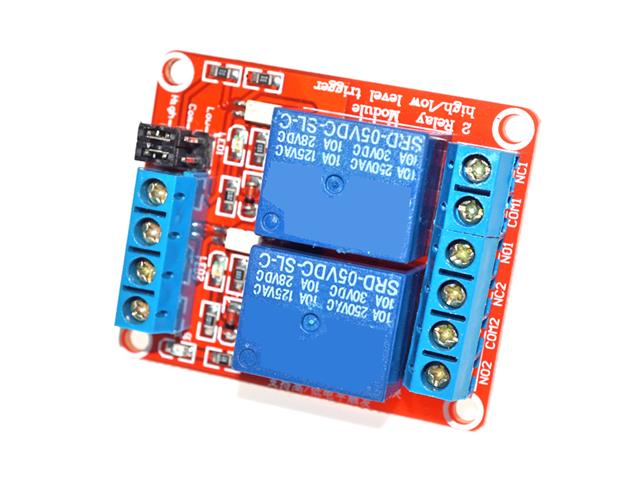

Outputs :

NO1: After a relay normally open interfaces , relay before floating, shorted pull with COM1
COM1: 1 relay common interface
NC1: 1 relay normally closed port, COM1 relay shorted before and after the pull- vacant
NO2: 2 -way normally open relay interface, the relay before floating , pull back and COM2 short
COM2: 2 Common Interface relay
NC2: 2 -way normally closed relay interface relay short front and COM2 , pull vacant post

Additional Information

Device	Relay Module
Type	2 Channel

Elevate your automation projects with the BMT Relay Board 2CH 12V. This versatile relay module handles loads up to AC 250V/10A and DC 30V/10A, ensuring reliable performance and strong driving capability. Its user-friendly design allows for easy high or low-level triggering, making it perfect for DIY enthusiasts and professionals alike. Enjoy peace of mind with its fault-tolerant design and convenient wiring terminal connections.
