BMT SD/MICRO-SD BREAKOUT MODULE

Name: BMT SD/MICRO-SD BREAKOUT MODULE - Communica [Part No: BMT SD/MICRO-SD BREAKOUT MODULE]
Brand: Communica
SKU: BMT SD/MICRO-SD BREAKOUT MODULE
Price: 19.13 ZAR
Availability: OutOfStock

SKU: BMT SD/MICRO-SD BREAKOUT MODULE

BRAND: Communica

Sold Out
R 22.00_{(inc VAT)}
R 19.13_{(ex VAT)}

Collections: IoT, Internet of things

Type: Breakout boards / Shields / Modules

Category: Iot, SD Micro SD Card Breakout Module

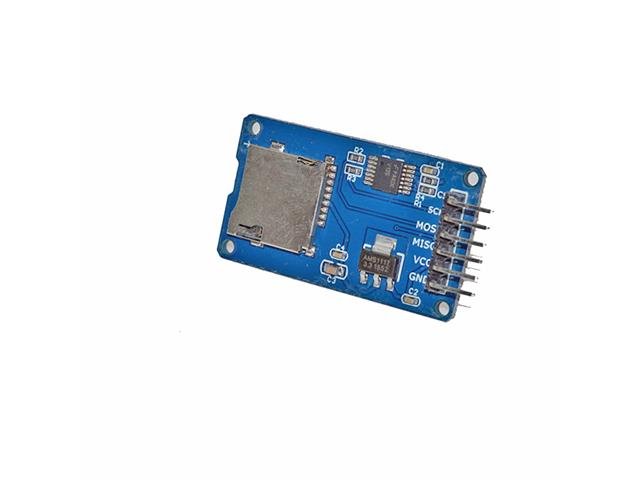

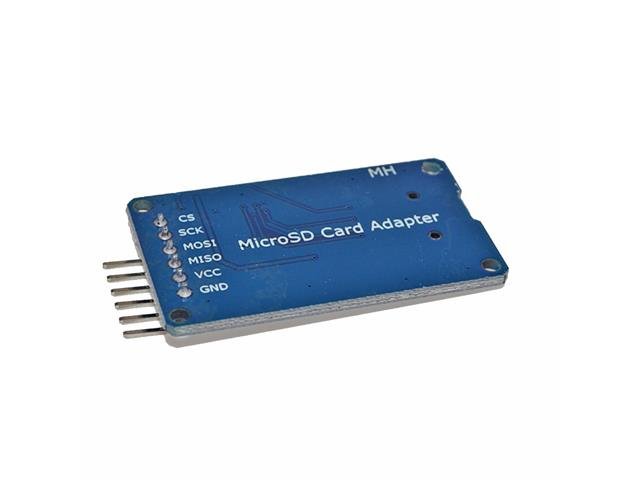

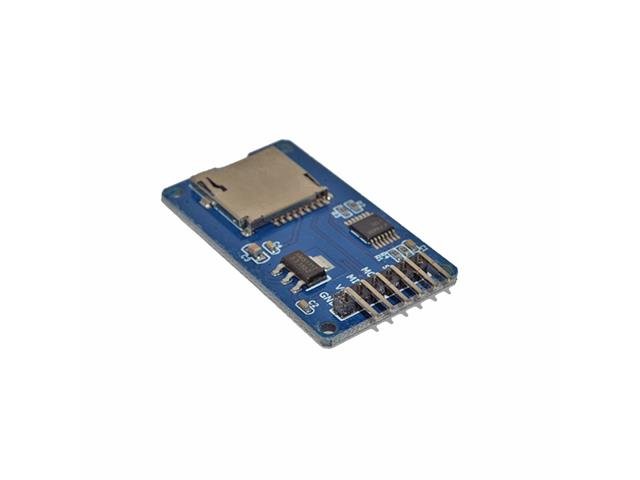

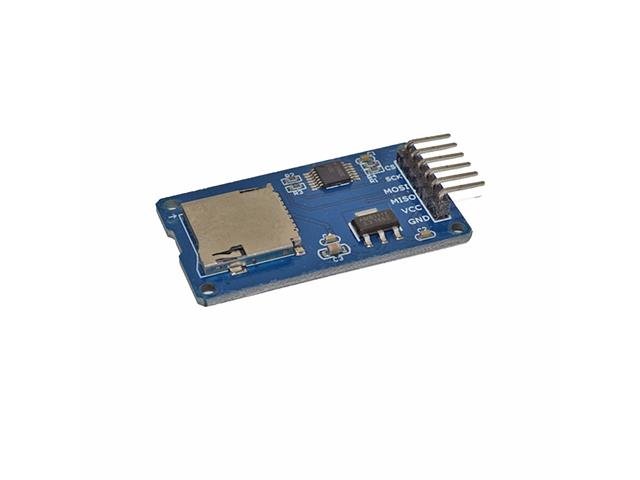

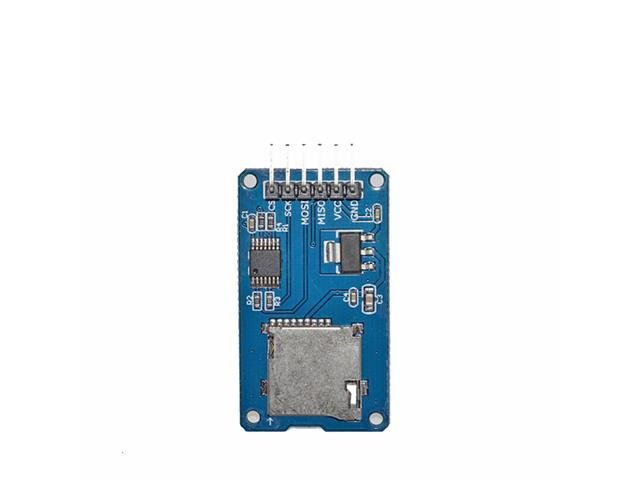

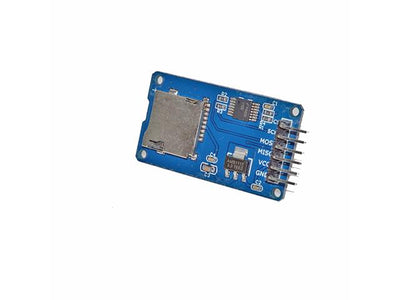

SD/Micro-SD Card Breakout Module

Overview

SD Card Module is smart homes technology, for science kits for kids, science projects, robot car on high school, primary school and secondary school.

Features

Support Micro SD card, Micro SDHC Card (High Speed Card).
Board Level Conversion Circuit, Namely the Interface Level For 5V or 3.3V.
Power Supply is 4.5V ~ 5.5V, 3.3V voltage regulator circuit Board.
The communication interface is a standard SPI interface.
4 M2 Screw Positioning Holes For Easy Installation.
Control Interface: A Total of Six Pins (GND, VCC, MISO, MOSI, SCK, CS), GND to ground, VCC is the Power Supply, MISO, MOSI, SCK For SPI bus, CS is the chip select signal pin.
3.3V Regulator Circuit: LDO Regulator Output 3.3V For Level Conversion Chip, 8. Micro SD Card Supply.
Level Conversion Circuit: Micro SD Card to Signal the Direction of Converts 3.3V.
MicroSD Card interface to control the direction of the MISO signal is also converted to 3.3V, general AVR microcontroller systems can read the signal.
Micro SD Card Connector: Self Bomb Deck, Easy Card Insertion.

Specifications

Power supply : 4.5-5.5V
Current : 0.2-200mA
Interface level : 3.3 or 5v
Cards Supported : Micro SD card(<=2G) Mirco SDHC card(<=32G)
Size : 42 x 24 x 12mm

Additional Information

Device	Breakout Module
Type	SD/Micro-SD Card

Elevate your electronics projects with the BMT SD/Micro-SD Breakout Module. Perfect for students and hobbyists, this versatile module supports Micro SD and SDHC cards, ensuring easy data storage for robotics and smart home applications. With a simple SPI interface and integrated voltage regulation, it simplifies connectivity for any 5V or 3.3V system, making it an essential component for your DIY projects.
