BMT STM32F103C8T6 MINI DEV BOARD

Name: BMT STM32F103C8T6 MINI DEV BOARD - Communica [Part No: BMT STM32F103C8T6 MINI DEV BOARD]
Brand: Communica
SKU: BMT STM32F103C8T6 MINI DEV BOARD
Price: 47.83 ZAR
Availability: InStock

SKU: BMT STM32F103C8T6 MINI DEV BOARD

BRAND: Communica

In Stock
R 55.00_{(inc VAT)}
R 47.83_{(ex VAT)}

Collections: IoT, Internet of things, New Arrivals

Type: Development / Microcontroller Boards

Category: Iot, Microcontroller Boards, New

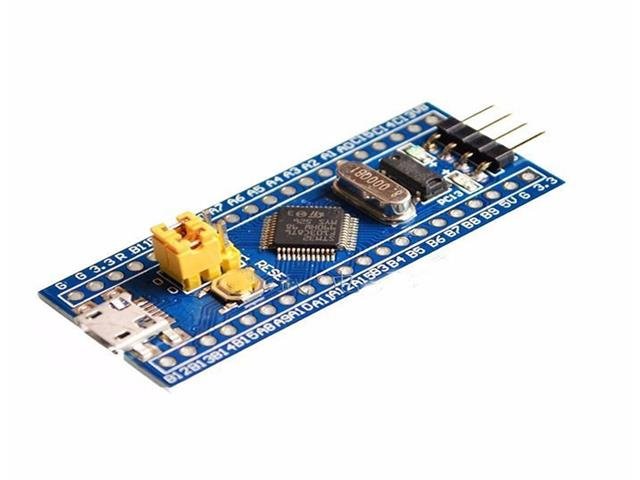

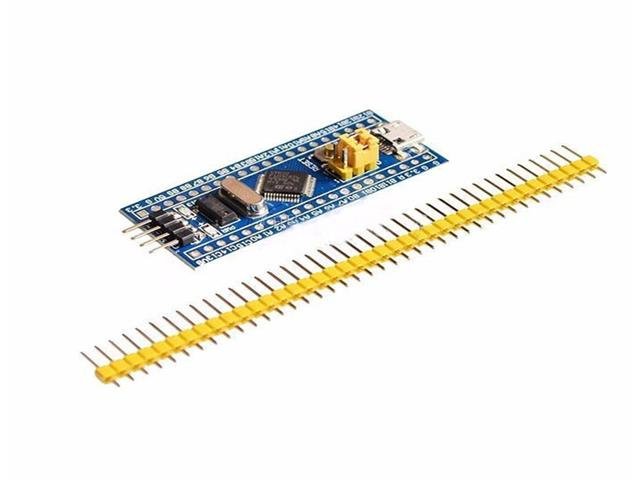

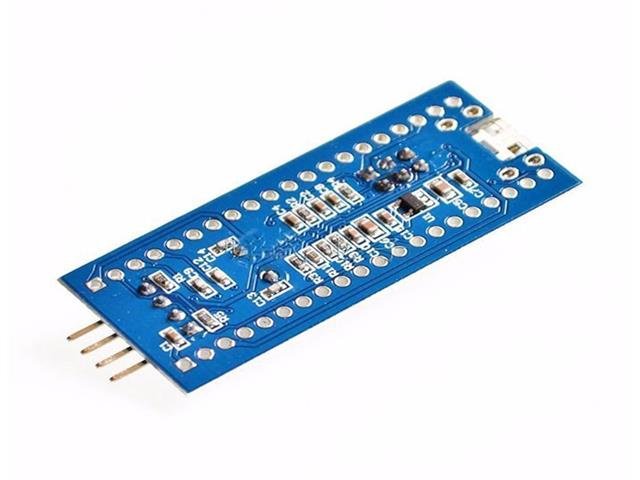

STM32F103C8T6 Small System Development Board Microcontroller STM32 ARM Core Board

STM32F103C8T6 Small System Development Board

Features

Power LED (PWR): Power indicator status, can determine whether the power supply is stable.
The user LED (PC13): to facilitate the I / O output test or indicate the program running.
Start jumping choose programming mode: (1, the user flash memory 2, SRAM 3, system memory).
Reset button: reset chip for the user program.
8M Crystal: The frequency can be set to make the system clocked at 72MHz.
6,32.768KHz Crystal: Available for built-in RTC, or for calibration.

Specifications

STM32F103xx Dev Board
Model: STM32F103C8T6
Core: ARM 32 Cortex-M3 CPU
Debug mode: SWD
72MHz work frequency
64K flash memory, 20K SRAM
2.0-3.6V power, I/O
Reset(POR/PDR)
4-16MHz crystal
On-board Mini USB interface, you can give the board power supply and USB communication
Size: 53.34mm x 22.86mm

Additional Information

Device	Development Board
Type	STM32F103C8T6 \| Small System
