CM12AM5S-CW/7-SH

Name: CM12AM5S-CW/7-SH - Communica [Part No: CM12AM5S-CW/7-SH]
Brand: Wain
SKU: CM12AM5S-CW/7-SH
Price: 281.95 ZAR
Availability: InStock

SKU: CM12AM5S-CW/7-SH

BRAND: Wain

R 324.24_{(inc VAT)}
R 281.95_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Circular Connectors

Category: Circular M12 Industrial Automation Connectors

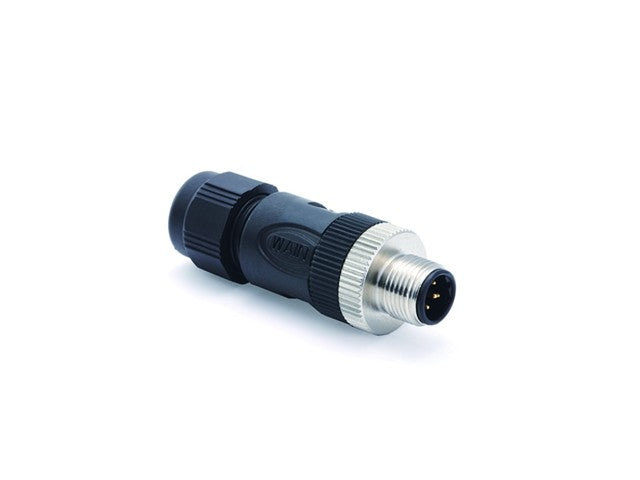

Circular Connector M12 A COD Cable Male Straight. 5 Pole Screw. Clamp Terminal PG7 Cable Entry - Shielded with SHLD. Ring IP67

M12 A COD Cable Circular Connector

Specifications

Series	M12
Product Category	Cable side
Male/Female	Male connector
Encoding Type	A coding
Number of Connector Contacts	5
Cable Outlet	Straight
Cable Outlet Diameter	4–6 mm
Shield	None
Rated Current	4 A
Rated Voltage	125 V
Rated Pulse Voltage	1.5 kV
Contact Resistance	≤10 mΩ
Wire Gauge (mm²)	Max. 0.75 mm²
Wire Gauge (AWG)	Max. 18 AWG
Housing Material	PA, PBT
Insulation Material	PA
Seal Material	Fluororubber
Contact Material	Copper alloy
Contact Plating	Gold-plated
Locking Method	Thread M12 × 1
Connection Method	Welding connection
Mating Cycles	≥500
Working Temperature	-25°C to +85°C
Salt Spray Resistance	72 h
Protection Rating	IP67
Flame Retardant Rating (UL94)	V0
Pollution Degree	3
Maximum Altitude	2000 m

Additional Information

Device

Connector

Discover the CM12AM5S-CW/7-SH Circular Connector, a robust M12 A-coded male connector designed for reliable performance in harsh environments. With a 5-pole screw and IP67 protection, it ensures secure connections and superior durability, making it ideal for industrial applications. Upgrade your connectivity with this high-quality, gold-plated connector that withstands extreme temperatures and offers excellent resistance to salt spray.
