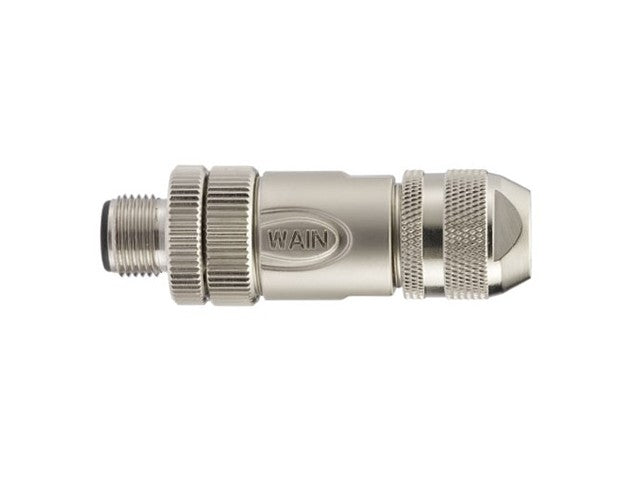

CM12AM8S-CW/9-SH

Name: CM12AM8S-CW/9-SH - Communica [Part No: CM12AM8S-CW/9-SH]
Brand: Wain
SKU: CM12AM8S-CW/9-SH
Price: 323.25 ZAR
Availability: InStock

SKU: CM12AM8S-CW/9-SH

BRAND: Wain

R 371.74_{(inc VAT)}
R 323.25_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Circular Connectors

Category: Circular M12 Industrial Automation Connectors

Circular Connector M12 A COD Cable Male Straight. 8 Pole Screw. Clamp Terminal PG9 Cable Entry - Shielded with SHLD. Ring IP67

M12 A COD Cable Circular Connector

Specifications

Series	M12
Connector Gender	Male connector
Encoding Type	A coding
Number of Contacts	8
Cable Outlet	Straight
Shielding	Yes
Rated Current	2 A
Rated Voltage	60 V
Rated Pulse Voltage	0.8 kV
Contact Resistance	≤10 mΩ
Insulation Material Group	II
Overvoltage Protection Level	Category III
Housing Material	Cast zinc, nickel-plated; Brass, nickel-plated
Insulation Material	PA
Seal Material	Fluororubber
Contact Material	Copper alloy
Surface Treatment	Nickel-plated
Contact Plating	Gold-plated
Locking Method	Thread M12 × 1
Connection Method	Screw connection
Mating Cycles	≥500
Operating Temperature	-25°C to +85°C
Salt Spray Resistance	72 hours
Protection Rating	IP67
Flame Retardant Rating	UL94 V0
Pollution Degree	3
Maximum Altitude	2000 m

Additional Information

Device

Connector

Discover the CM12AM8S-CW/9-SH Circular Connector, designed for reliability and durability. With 8 poles, IP67 protection, and robust nickel-plated housing, it ensures optimal performance in harsh environments. Upgrade your connections with this high-quality, shielded M12 connector for superior signal integrity and long-lasting use. Perfect for industrial applications where safety and efficiency matter.
