Dahua Water-Proof RFID Standalone, Wiegand/RS485, Card Capacity:30000, Buzzer, 1xRJ45 10/100Mbs, 150000 Records, Touch Keypad with Blue Backlight, PSU:9~15DC/200mA, 13.56MHz MiFare IC Card, Processor:32-Bit, Door Sensor/Exit Button, 62x23x142mm

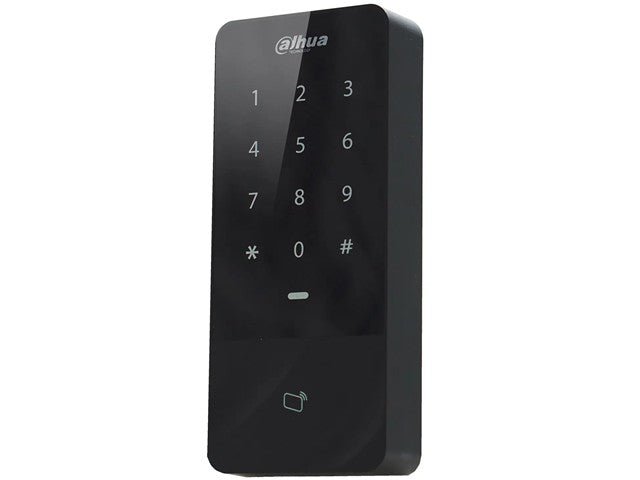

Water-Proof RFID Standalone
Features
- Support 30,000 valid cards & 150,000 records
- Support multiple cards(default IC card) (“-D” means ID EM card)
- Support card, password and combination
- TCP/IP to PC
- Wiegand or RS-485 interface to reader
- Door time out alarm, intrusion alarm, duress alarm and tamper alarm
- Anti-passback, multi-card open
- Water-proof design
- Support 128 efficient time and holiday schedules
- Watch dog function ensure device free from halting

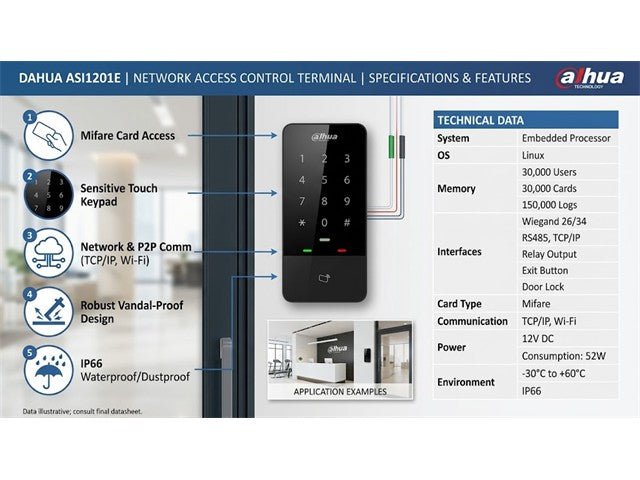

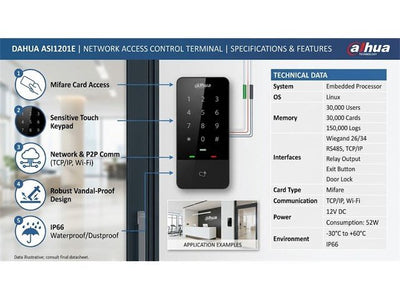

Specifications
System
- Main Processor : 32 Bit
- Memory : 16M
Input/Output Ports
- Input : Door sensor x 1, Exit button x 1
- Output : Relay x 1 (Door lock,)
- Reader : Reader x 1
Card Read
- Read Format : 13.56MHz(Mifare)/125KHz(“-D” EM, Optional)
- Read Range : 3-6cm (max.)
- Response Time : <0.1s
Capacity
- Cardholders : 30,000
- Events : 150,000
Function
- User Management General, VIP, Guest, Patrol, Blocklist, Duress
- Alarm Function : Door time out alarm, Intrusion alarm, Duress alarm, Tamper alarm
- Period Setting : Support 128 groups of schedule, 128 groups of periods and 128 groups of holiday periods
Interface
- To PC : RJ45(10/100M)
- To Reader : Wiegand/ RS485
Genreal
- RTC : Yes
- Voice Prompt : No
- Beep Tone : Buzzer
- Keyboard : Sensitive touch keypad with blue backlight
- Power Supply : 9-15DC/200mA
- Working Environment : -30°C~+60°C
- Working Humidity : ≤95%
- Dimension(W×D×H) : 62*23*142mm
- Weight : 0.5Kg
Downloads
Additional Information
Experience seamless security with the DHA ASI1201E Water-Proof RFID System. With the capacity to manage 30,000 cards and 150,000 records, it ensures robust access control for any environment. Its advanced features, including intrusion and duress alarms, offer peace of mind, while the sleek design and touch keypad make operation effortless. Enhance your security today with this reliable, durable solution!
