DHA CS4218-16ET-190

Name: DHA CS4218-16ET-190 - Communica [Part No: DHA CS4218-16ET-190]
Brand: Dahua
SKU: DHA CS4218-16ET-190
Price: 2720 ZAR
Availability: InStock

SKU: DHA CS4218-16ET-190

BRAND: Dahua

R 3,128.00_{(inc VAT)}
R 2,720.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Computing & Peripherals, Dahua

Type: Network Hubs & Switches

Category: Switch Rack mount 18 Port

Dahua 18 Port Cloud Managed Desktop Switch with 16 Port PoE, Switching Capacity:7.2Gbps, 16×RJ45 10/100 Mbps, 2xRJ45 10/100/1000Mbps, 2×SFP 1000Mbps, Lighting Protection:Common Mode:4kV, Power:Port 1-2≤ 90W, Port 3-16≤30W, Total≤190W, 2.94kg

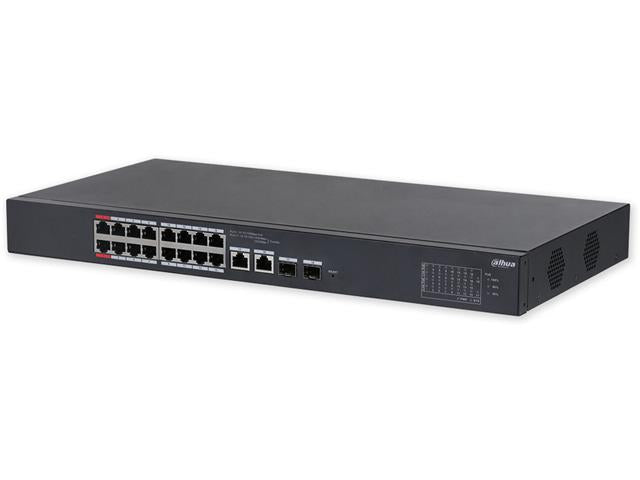

18 Port Cloud Managed Desktop Switch

Feature(s)

Meets the requirements of IEEE802.3,IEEE802.3u,IEEE802.3x,IEEE802.3ab,IEEE802.3z standards.
Meets the requirements of IEEE802.3af, IEEE802.3at, Hi-PoE, and IEEE802.3bt power supply standards.
Manages PoE power consumption and PoE power on/off. Supports Intelligent PoE.
A wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof.

Specifications

Hardware
Included Power Adapter	Yes
PoE	Yes
Ethernet Port	16
Ethernet Port Speed	10/100 Mbps
Optical Port Speed	1000 Mbps
Ethernet Port Uplink Speed	10/100/1000 Mbps
Optical Port Uplink Speed	1 Gbps
Description of Function Slots	Port 1-16: 16 × RJ-45 10/100 Mbps (PoE); Port 17-18: 2 × RJ-45 10/100/1000 Mbps (combo); Port 17-18: 2 × SFP 1000 Mbps (combo)
Reset Button	1
Power Supply	Built-in power supply: 100-240 VDC, 47-63 Hz, max 4 A
Operating Temperature	–10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity	5%–95% (RH), non-condensing
Storage Temperature	–40 °C to +70 °C (–40 °F to +158 °F)
Storage Humidity	5%–95% (RH), non-condensing
Power Consumption	Idling: ≤6 W ; Full load: 212 W
Performance
Layer	Layer 2
Management Type	Yes
Smart Managed Switch	Yes
MTBF	87.10 years
Switching Capacity	7.2 Gbps
Packet Forwarding Rate	5.36 Mpps
Packet Buffer Size	4 Mbit
Jumbo Frame	15K Byte
MAC Table Size	8K
VLAN Number	32
Communication Standard	IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab; IEEE802.3z
Feature
PoE Protocol	IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt
PoE Power	Port 1-2 ≤ 90 W, Port 3-16 ≤ 30 W, total ≤ 190 W
PoE Power Consumption Management	Yes
PoE Pin Assignment	1,2,4,5（V+）,3,6,7,8（V-）
Long Distance PoE Transmission	Yes
VLAN Function	Port-based VLAN
IEEE 802.3x Flow Control	Yes
DHCP Function	DHCP Client
Equipment Management	Web management; App management
General
Statics Protection	Air discharge: 8 kV; Contact discharge: 6 kV
Lighting Protection	Common mode: 4 kV; Differential mode: 2 kV
Net Weight	2.29 kg (5.04 lb)
Gross Weight	2.94 kg (6.47 lb)
Product Dimensions	440 mm × 220 mm × 44 mm (17.32" × 8.66" × 1.73") (L × W × H)
Packaging Dimensions	540 mm × 342 mm × 90 mm (21.26" × 13.46" × 3.54") (L × W × H)
Casing Material	Sheet metal
Installation	Desktop mount; rack mount

Downloads

Datasheet - DHA CS4218-16ET-190

Additional Information

Device	Switch
Type	18 Port \| Cloud Managed \| Desktop

Upgrade your network with the DHA CS4218-16ET-190, an 18 Port Cloud Managed Desktop Switch featuring 16 PoE ports for seamless power and data delivery. With a robust switching capacity of 7.2 Gbps and intelligent PoE management, this reliable switch ensures optimal performance for your devices. Its durable design and advanced features make it perfect for any environment, providing exceptional value for your connectivity needs.
