• 4MP, 1/3” CMOS image sensor, low illuminance, high image definition
• Outputs max. 4MP (2688 × 1520)@30 fps
• H.265 codec, high compression rate, low bit rate
• Built-in IR LED, max. IR distance: 50 m
• ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
• Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
• Intelligent detection: Intrusion, tripwire (support the classification and
  accurate detection of vehicle and human)
• Abnormality detection: Motion detection, video tampering, scene changing, audio abnormality detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage
  detection
• Alarm: In, out; Audio: In, out; Supports max. 256 G Micro SD card, built-in Mic
• 12V DC/POE power supply
• IP67 protection
• SMD Plus

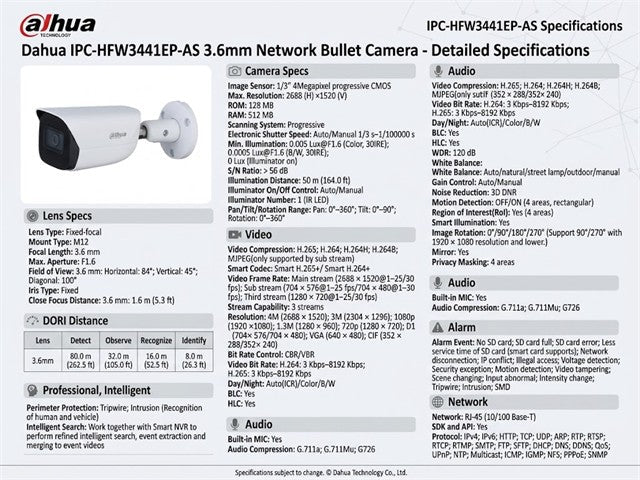

Camera

• Image Sensor: 1/3”4Megapixel progressive CMOS
• Max. Resolution: 2688 (H) ×1520 (V)
• ROM: 128 MB
• RAM: 512 MB
• Scanning System: Progressive
• Electronic Shutter Speed: Auto/Manual 1/3 s–1/100000 s
• Min. Illumination: 0.005 Lux@F1.6 (Color, 30IRE)
                         0.0005 Lux@F1.6 (B/W, 30IRE)
                         0 Lux (Illuminator on)
• S/N Ratio: > 56 dB
• Illumination Distance: 50 m (164.0 ft)
• Illuminator On/Off Control: Auto/Manual
• Illuminator Number: 1 (IR LED)
• Pan/Tilt/Rotation Range: Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360°

Lens

• Lens Type: Fixed-focal
• Mount Type: M12
• Focal Length: 3.6 mm
• Max. Aperture: F1.6
• Field of View: 3.6 mm: Horizontal:84°; vertical: 45° ; diagonal: 100°
• Iris Type: Fixed
• Close Focus Distance: 3.6 mm: 1.6 m (5.3 ft)



DORI Distance

• Lens: 3.6mm
• Detect: 80.0 m (262.5 ft)
• Observe: 32.0 m (105.0 ft)
• Recognize: 16.0 m (52.5 ft)
• Identify: 8.0 m (26.3 ft)

Professional, Intelligent

• Perimeter Protection: Tripwire; intrusion (Recognition of human and vehicle)
• Intelligent Search: Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

• Video Compression: H.265; H.264; H.264H; H.264B; MJPEG(only supported by sub stream)
• Smart Codec: Smart H.265+/ Smart H.264+
• Video Frame Rate: Main stream (2688 × 1520@1–25/30 fps)
                           sub stream (704 × 576@1–25 fps/704 × 480@1–30 fps)
                           third stream (1280 × 720@1–25/30 fps)
• Stream Capability: 3 streams
• Resolution: 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 ×1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704× 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352× 240)
• Bit Rate Control:  CBR/VBR
• Video Bit Rate: H.264: 3 Kbps–8192 Kbps
                       H.265: 3 Kbps–8192 Kbps
• Day/Night: Auto(ICR)/Color/B/W
• BLC: Yes
• HLC: Yes
• WDR: 120 dB
• White Balance: Auto/natural/street lamp/outdoor/manual/regional custom
• Gain Control: Auto/Manual
• Noise Reduction: 3D DNR
• Motion Detection: OFF/ON (4 areas, rectangular)
• Region of Interest(RoI): Yes (4 areas)
• Smart Illumination: Yes
• Image Rotation: 0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution and lower.)
• Mirror: Yes
• Privacy Masking: 4 areas

Audio

• Built-in MIC: Yes
• Audio Compression: G.711a; G.711Mu; G726

Alarm

• Alarm Event: No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection; video tampering; scene changing; input abnormal; intensity change; tripwire; intrusion; SMD

Network

• Network:  RJ-45 (10/100 Base-T)
• SDK and API:  Yes
• Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP
• Cyber Security: Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
• Interoperability: ONVIF(Profile S/Profile G/Profile T);CGI;P2P;Milestone; Genetec
• Scene Self-adaptation (SSA): Yes
• User/Host: 20 (Total bandwidth: 64 M)
• Storage FTP; SFTP; Micro SD Card (support max. 256 G); NAS
• Browser: IE: IE8, IE9, IE11
              Chrome
              Firefox
• Management Software: Smart PSS, DSS, DMSS
• Mobile Phone: IOS; Android

Certification

• Certifications: CE-LVD: EN62368-1
                     CE-EMC: Electromagnetic Compatibility Directive
                     2014/30/EU
                     FCC: 47 CFR FCC Part 15, Subpart B
                     UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Port

• Audio Input: 1-channel (RCA port)
• Audio Output: 1-channel (RCA port)
• Alarm Input: 1 channel in : 5mA 3V–5V DC
• Alarm Output: 1 channel out: 300mA 12V DC

Power

• Power Supply: 12V DC/PoE (802.3af)
• Power Consumption: <5.4W

Environment

• Operating Conditions: -40°C to +60°C (-40°F to +140°F)/less than 95%
• Storage Conditions: -40°C to +60°C (-40°F to +140°F)
• Protection Grade: IP67

Structure

• Casing: Metal
• Dimensions: 192.7 mm × 70.5 mm × 66.4 mm (7.6''×2.8''×2.6'') (L × W × H)
• Net Weight: 590 g (1.3lb)
• Gross Weight: 780 g (1.7lb)
