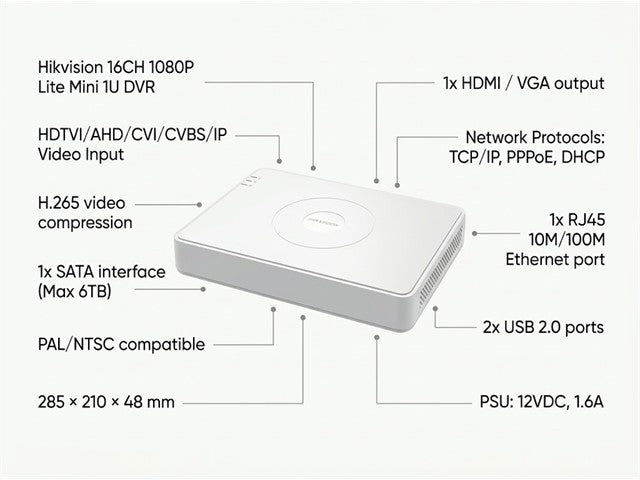

Hikvision 16CH 1080P Lite Mini 1U DVR, HDTVI/AHD/CVI/CVBS/IP Video Input, H2.65, 1xSATA (Max 6TB), 2xUSB 2.0, PAL/NTSC, TCP/IP, PPPoE, DHCP, 1xRJ45 10M/100M, 2xUSB2.0, PSU 12VDC 1.6A, 1xHDMI/VGA, 285×210×48mm

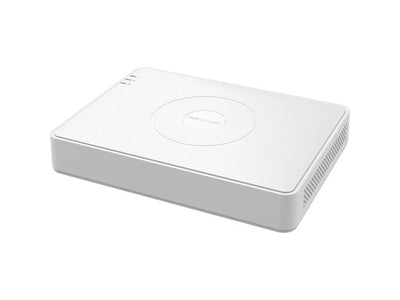

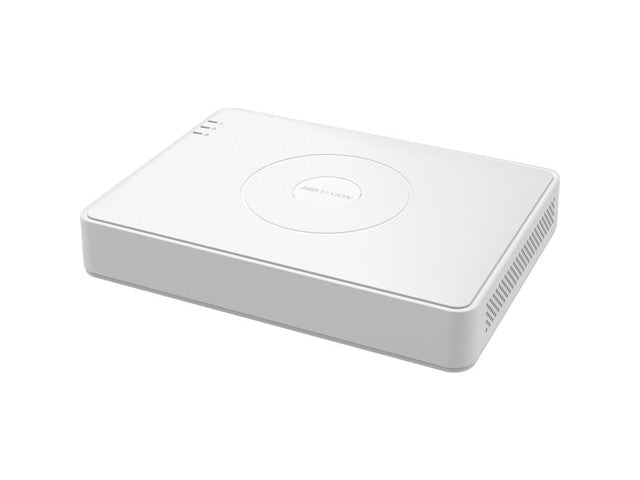

16CH 1080P Lite Mini 1U DVR
Feature(s)
- Deep learning based human and vehicle targets classification of Motion Detection 2.0
- H.265 Pro+/H.265 Pro/H.265 video compression
- HDTVI/AHD/CVI/CVBS/IP video input
- Audio via coaxial cable
- Up to 18-ch IP camera input (up to 5 MP)
- Encoding ability up to 1080p lite @ 15 fps
- Support all channels HDTVI two-way audio technology
Specifications
Motion Detection 2.0
- Human/Vehicle Analysis
- Deep learning-based motion detection enabled by default for all analog channels.
- Classifies humans and vehicles to reduce false alarms caused by leaves, lights, and other objects.
- Supports quick search by object or event type.
Video and Audio
- IP Video Input: 2 channels (expandable up to 18 channels).
- IP Camera Resolution: Up to 5 MP.
- IP Camera Compression: H.265+, H.265, H.264+, H.264.

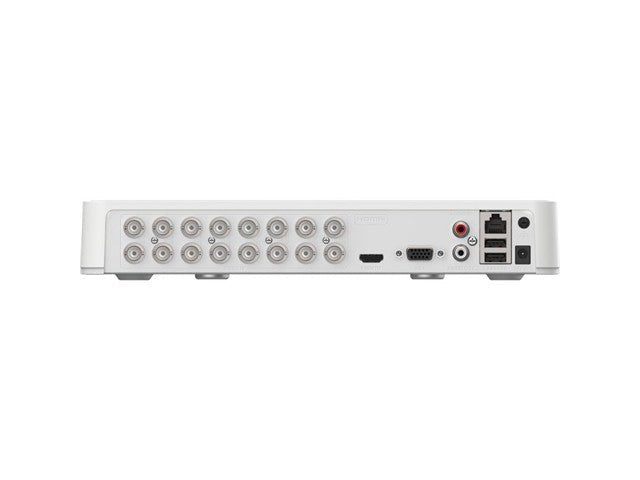

- Analog Video Input: 16 channels.
- Analog Interface: BNC (1.0 Vp-p, 75 Ω), supporting Coaxitron connection.
- HDTVI Input: 1080p at 25/30 fps, 720p at 25/30 fps.
- AHD Input: 1080p at 25/30 fps, 720p at 25/30 fps.
- HDCVI Input: 1080p at 25/30 fps, 720p at 25/30 fps.
- CVBS Input: PAL/NTSC.
- HDMI Output: 1 channel, up to 1920 × 1080 at 60 Hz.
- VGA Output: 1 channel, up to 1920 × 1080 at 60 Hz.
- Video Output Mode: Simultaneous HDMI and VGA output.
- Audio Input: 1-channel RCA (2.0 Vp-p, 1 kΩ) and 16-channel audio via coaxial cable.
- Audio Output: 1-channel RCA (Linear, 1 kΩ).
- Two-Way Audio: 1-channel RCA (2.0 Vp-p, 1 kΩ), using the first audio input.
- Synchronous Playback: 16 channels.
Recording
- Video Compression: H.265 Pro+, H.265 Pro, H.265, H.264+, H.264.
- Encoding Resolution:
- 1080p stream access: 1080p Lite, 720p Lite, WD1, 4CIF, VGA, CIF.
- 720p stream access: 720p, WD1, 4CIF, VGA, CIF.
- Standard-definition stream access: WD1, 4CIF, VGA, CIF.
- Main Stream Frame Rate:
- 1080p stream access: Up to 15 fps.
- 720p stream access: Up to 15 fps.
- Standard-definition stream access: Up to 25 fps (PAL) / 30 fps (NTSC).
- Sub-Stream Frame Rate:
- 1080p and 720p stream access: CIF/QVGA at up to 15 fps.
- Standard-definition stream access: CIF/QVGA at up to 25 fps (PAL) / 30 fps (NTSC).
- Video Bitrate: 32 Kbps to 4 Mbps.
- Dual-Stream Support: Yes.
- Stream Type: Video, Video and Audio.
- Audio Compression: G.711u.
- Audio Bitrate: 64 Kbps.
Network
- Total Bandwidth: 96 Mbps.
- Remote Connections: Up to 128.
- Network Protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, UPnP™, HTTPS, ONVIF.
- Network Interface: 1 × RJ45 10/100 Mbps self-adaptive Ethernet port.
Auxiliary Interface and Storage
- SATA Interface: 1 × SATA.
- Storage Capacity: Up to 6 TB per hard disk.
- USB Interface: 2 × USB 2.0.
General
- Power Supply: 12 V DC, 2 A.
- Power Consumption: ≤ 7 W (without HDD).
- Operating Temperature: -10 °C to 55 °C (14 °F to 131 °F).
- Operating Humidity: 10% to 90%.
- Dimensions (W × D × H): 285 × 210 × 48 mm (11.2 × 8.3 × 1.9 inches).
- Weight: ≤ 1.8 kg (without HDD)
Downloads
Additional Information

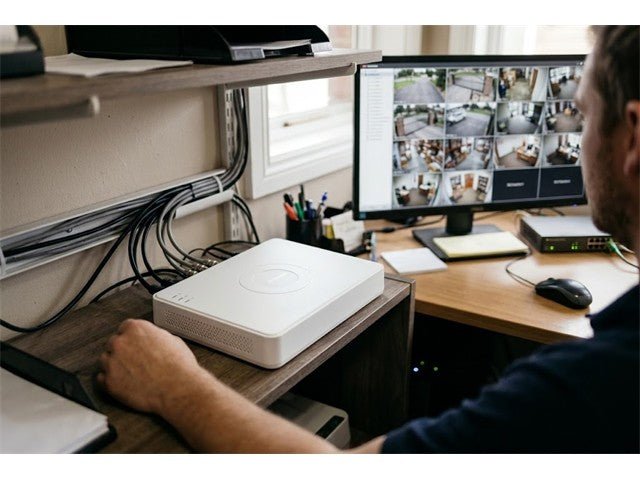

Enhance your security with the HKV DS-7116HGHI-M1/T 16CH 1080P Lite Mini DVR. Featuring advanced H.265 video compression and deep learning motion detection, it ensures reliable monitoring of your home or business. With support for up to 18 IP cameras and two-way audio, experience seamless surveillance and quick event searches. Elevate your safety today with this compact, powerful solution!
