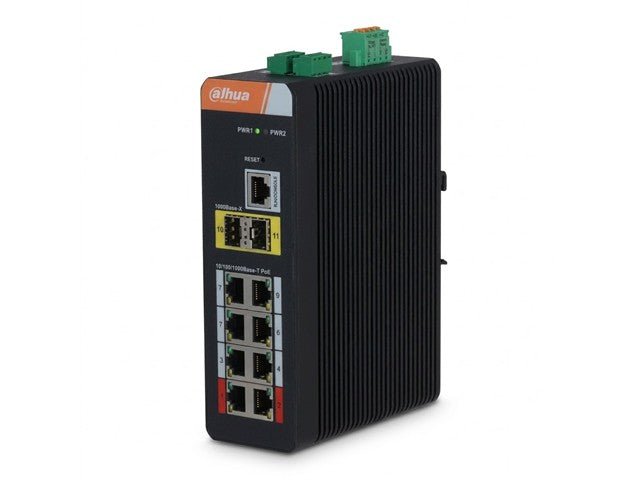

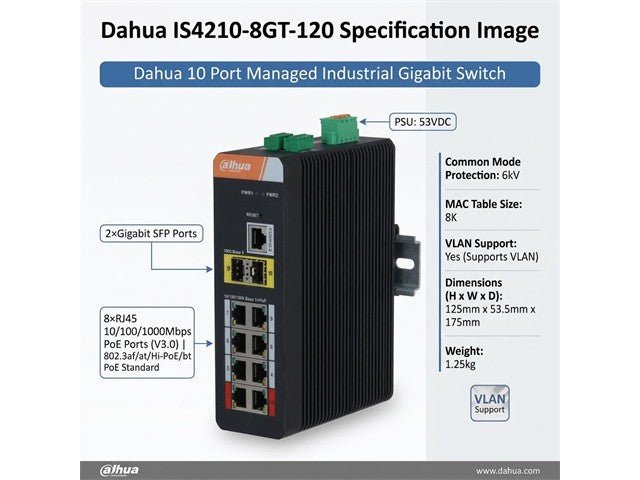

Dahua 10 Port Managed Industrial Gigabit Switch, 8×RJ45 10/100/1000Mbps PoE Ports (V3.0), 2×Gigabit SFP Ports, 802.3af/at/Hi-PoE/bt PoE Standard, Supports VLAN, PSU:53VDC, MAC Table Size:8K, Common Mode:6kV, 125×53.5×175mm, 1.25kg
10 Port Managed Industrial Gigabit Switch
Features
- 8 × RJ-45 10/100/1000 Mbps PoE Ports, 2 × Gigabit SFP Ports
- 802.3af/at/Hi-PoE/bt PoE Standard, PoE Watchdog, 250m Long Distance PoE, Intelligent PoE
- IEEE802.1Q-Based VLAN Configuration
- Working in temperatures from-40°C to +75°C
- WEB-Managed and Centralized Cloud Management through DoLynk Care, SNMP V1/V2C/V3
- Supports STP, RSTP and ERPS
- Support LACP
- Desktop Mount and DIN-Rail Mount
Specifications
Basic
|
Layer
|
Layer 2
|
|
Switching Capacity
|
20 Gbps
|
|
Packet Forwarding Rate
|
14.88 Mpps
|
|
Description of Function Slots
|
Port 1-8: 8 × RJ-45 10/100/1000 Mbps (PoE)
Port 9-10: 2 × SFP 1000 Mbps (uplink)
|
|
Operating Temperature
|
–40 °C to +70 °C (–40 °F to +158 °F)
|
|
Operating Humidity
|
5%–95% (RH), non-condensing
|
|
Power Supply
|
53 VDC
|
|
Included Power Adapter
|
No
|
|
Power Consumption
|
Idling: ≤ 6 W
Full load: 120 W
|
|
Statics Protection
|
Air discharge: 8 kV
Contact discharge: 6 kV
|
|
Lightning Protection
|
Common mode: 6 kV
Differential mode: 4 kV
|
|
Net Weight
|
1.25 kg (2.76 lb)
|
|
Gross Weight
|
1.52 kg (3.35 lb)
|
|
Product Dimensions
|
125 mm × 53.5 mm × 175.0 mm (4.92" × 2.11" × 6.89") (L × W × H)
|
|
Packaging Dimensions
|
254 mm × 287 mm × 101 mm (10.00" × 11.30" × 3.98") (L × W × H)
|
|
Installation
|

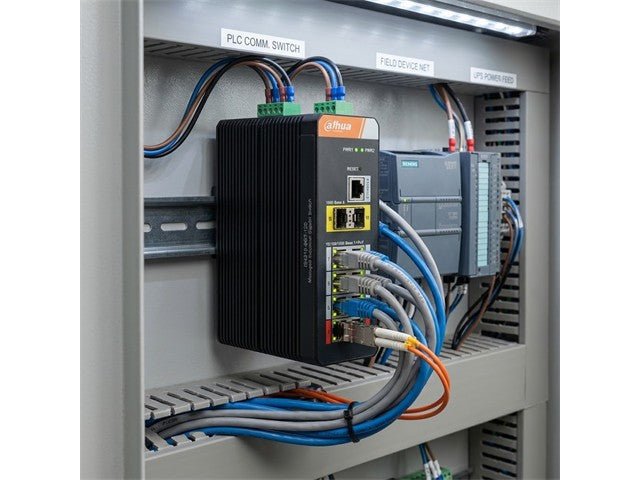

Desktop mount; DIN-rail mount
|
|
Certifications
|
CE
|
PoE
|
PoE
|
Yes
|
|
PoE Power
|
Port 1-2≤90 W
Full load≤120 W
|
|
PoE Protocol
|
IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt
|
|
PoE Power Consumption Management
|
Yes
|
|
PoE Pin Assignment
|
1,2,4,5（V+）,3,6,7,8（V-）
|
|
Long Distance PoE Transmission
|
Yes
|
|
PoE Watchdog
|
Yes
|
Hardware
|
Debugging
|
1 × Console port
|
|
Reset Button
|
1
|
Performance
|
MTBF
|
1198177.29 hours
|
|
Packet Buffer Size
|
4.1 Mbit
|
|
Jumbo Frame
|
10K Byte
|
|
MAC Table Size
|
8K
|
|
Total Static MAC Addresses
|
256
|
|
Flash
|
32 MB
|
|
RAM
|
2Gbit
|
|
Communication Standard
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad
|
|
Aggregation Group
|
8
|
|
VLAN Number
|
4K
|
|
VLAN Interface
|
10
|
|
IPv4 Routes
|
512
|
|
Dynamic ARP
|
496
|
|
Static ARP
|
128
|
|
QoS Queue
|
8
|
Feature
|
LLDP
|
Yes
|
|
Ethernet Loop Protection
|
STP, RSTP, ERPS
|
|
VLAN Function
|
Yes
|
|
Link Aggregation
|
Static link aggregation; LACP
|
|
Mirror
|
Yes
|
|
Multicast
|
IGMP Snooping
|
|
Routing
|
Static Routing
|
|
ARP
|
ARP
|
|
DHCP Function
|
DHCP Client;DHCP Snooping;DHCP Server;DHCP Snooping Option 82
|
|
Security
|
SSH2.0;802.1X; Port isolation; Radius; HTTPS
|
|
QoS/ACL
|
SP/WRR queue scheduling; 802.1p and DSCP priority mapping; Port speed limit；
|
|
Equipment Management
|
Web;
Cloud management;
DSS Pro;
Telnet;
SSH;
SNMP V1/V2C/V3;
NTP;
Logs;
Ping;
VCT;
|
