• Light and cost-effective plastic housing;
• Ultra-narrow bezel ,elegant appearance, Metal base;
• 178°H/178°V extra-wide viewing angle for overall viewing performance;
• High fidelity digital processing for a brilliant and vivid video;
• Support multiple signal inputs such as HDMI, VGA; AUDIO
• Physical button control mode;
• Low energy consumption, long service life;
• Anti-blue light design,eye-protective.

General

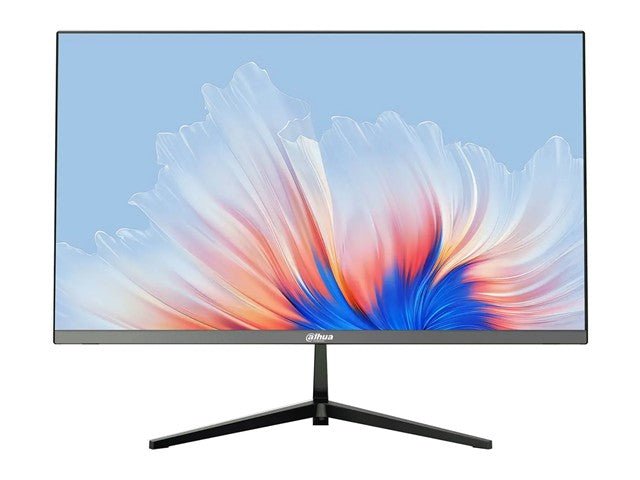

• Model: DHI-LM22-A200X
• Screen Size: 21.5''
• Panel Type: VA
• Aspect Ratio: 16:9
• Resolution: 1920×1080 (FHD)
• Backlight: WLED
• Brightness/Luminance: 250 cd/㎡ (max)
• Contrast Ratio: 3000:1
• Display Color: 16.7M (8-bit)
• Viewing Angle (H/V): 178°/178°
• Response Time (OD): 7ms
• Refresh Rate: 100Hz (max)

Audio

• Speakers: 2W × 2

Input/Output

• Input: VGA ×1, HDMI ×1, Audio ×1
• Output: None

Power

• Power Supply: DC 12V
• Power Consumption (Standard): 30W
• Power Consumption (Standby): ≤0.5W

Design & Dimensions

• Housing: Plastic, ultra-narrow bezel, metal base
• Bezel Width: 2mm
• Wall Mount: VESA 75×75mm
• Dimensions with Stand (W×H×D): 491×174×380mm
• Package Dimensions (W×H×D): 550×102×348mm
• Net Weight: 2.00kg
• Gross Weight: 2.80kg

Environment

• Operating Temperature: 0℃~40℃ (32°F~104°F)
• Humidity: 20%~90%

Accessories

• HDMI Cable, Adapter, Base

Certifications

• South Africa Approved NRCS LOA
