Overview

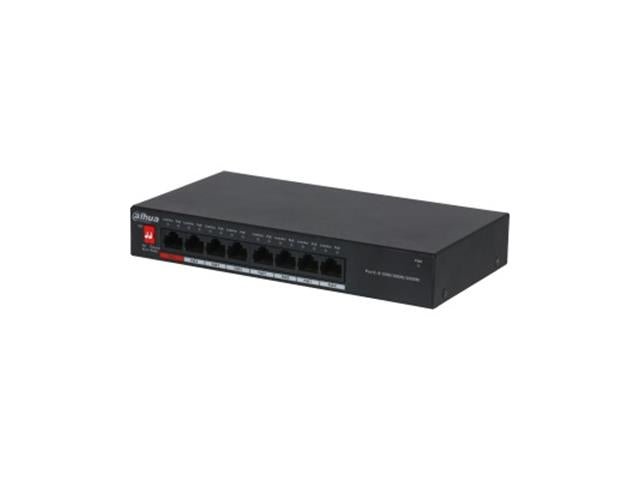

DH-PFS3008-8GT-60 is an unmanaged Desktop Switch with 4 × 10/100/1000 Mbps PoE Ports. It provides 8 × 10/100/1000 Mbps Ethernet ports.The product is equipped with two types of transmission modes (Extend Mode On/Extend Mode Off).The Orange port supports the Hi-PoE standards. It also supports PoE watchdog to avoid manually maintenance and device restart, which can realize the intelligent management and reduce the cost.
Specifications
Hardware
- Data Transmission Port: Port 1-4: 4 × RJ-4510/100/1000 Mbps (PoE)
Port 5-8: 4 × RJ-45 10/100/1000 Mbps
- Power Supply: 48 V–57 V DC
- Operaing Temperature: –10 °C to + 55 °C(+14 °F to + 131 °F)
- Operating Humidity; 5%–95% (RH)
- Storage Temperature: –20 °C to + 70°C (–4 °F to + 158°F)
- Storage Humidity: 5%–95% (RH)
- Power Consumption: Idling: 3.0 W
Full load: 60 W
Performance
- Capacity: 20 Gbps
- Packet Forwarding Rate: 11.9 Mpps
- Packet Buffer Memory: 1.5 Mbit
- MAC Table Size: 8K
- Communication Standard: IEEE802.3; IEEE802.3u; IEEE 802.3ab; IEEE802.3X
PoE
- PoE Standard: IEEE802.3af; IEEE802.3at; Hi-PoE
- PoE Power: 60 W
- Power Consumption Management: Yes
- PoE Pin Assignment: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
- Long Distance PoE: Supports 250 m (820.21 ft)
Downloads
Additional Information
Device |
Switch |
Type |
8 Port | Unmanaged | Desktop |
