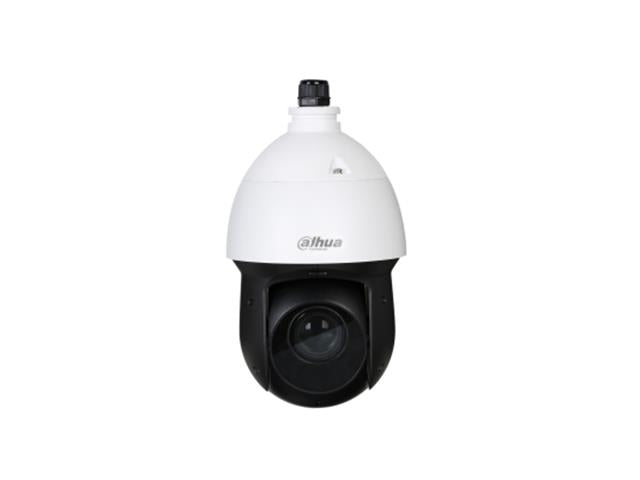

Dahua Starlight PTZ HDCVI 2MP 4.8~120mm , 100m IR , WDR , 1/2.8" Starvis CMOS , 25 x Optical Zoom , 120dB 3D DNR , Resolution:1080P(1920×1080) , 720P (1280×720) , 2D/3D , DC 12V/3A , IP66
Overview
Featuring with powerful optical zoom and accurate pan/tilt/zoom perfor-
mance, the SD49 series PTZ camera can provide large monitoring range
and great detail. The camera delivers 1080P resolution at 25/30 fps, with
25x optical zoom, and has very excellent low light performance due to
the latest starlight technology. SD49 series PTZ camera is equipped with
smooth control, high quality image and good protection, which makes it
meet small and medium-sized video surveillance applications.
Feature(s)
- 1/2.8" 2Megapixel STARVISTM CMOS
- Powerful 25x optical zoom
- Starlight technology
- 120 dB true WDR, 3D DNR
- Max. 25/30 fps@1080P, 25/30/50/60 fps@720P
- IR distance up to 100 m
- IP66
Specifications
Camera
- Image Sensor : 1/2.8" STARVISTM CMOS
- Pixel : 2MP
- Max. Resolution : 1920 (H) x 1080 (V)
- ROM : 16 MB
- RAM : 256 MB
- Electronic Shutter Speed : 1/3 s–1/100000 s
- Scanning System : Progressive
- Min. Illumination
- Color: 0.005 Lux@F1.6
- B/W: 0.0005 Lux@F1.6
- 0 Lux@F1.6 (IR on)
- Illumination Distance : 100 m (328.08 ft)
- Illuminator On/Off Control : Auto/Manual
- Illuminator Number : 6
Lens
- Focal Length : 4.8 mm–120 mm
- Max. Aperture : F1.6–F3.5
- Field of View
- H: 58.5°–2.8°;
- V: 33.2°–1.5°;
- D: 67.5°–3.2°
- Optical Zoom : 25x
- Focus Control Auto/Semi-Auto/Manual
- Close Focus Distance : 0.1 m–1.5 m (0.33 ft–4.92 ft)
- Iris Control : Auto/Manual
- DORI Distance
- Detect : 1655.2 m (5430.45 ft)
- Observe : 656.8 m (2154.86 ft)
- Recognize : 331.0 m (1085.96 ft)
- Identify : 165.5 m (542.98 ft)
PTZ
- Pan/Tilt Range : Pan: 0°–360°Tilt: -15°–+90°; auto flip 180°
- Manual Control Speed : Pan: 0.1°–200°/s; Tilt: 0.1°–120°/s
- Preset Speed : Pan: 240°/s; Tilt: 200°/s
- Presets : 300
- Tour : 8 (up to 32 presets per tour)
- Pattern : 5
- Scan : 5
- Speed Adjustment : Support
- Power-off Memory : Support
- Idle Motion : Preset/Tour/Pattern/Scanning
- Protocol
- DH-SD
- Pelco-P/D (auto recognition)
Video
- Resolution : 1080P (1920 × 1080); 720P (1280 × 720); D1 (704 × 576/704 × 480)
- Frame Rate : 1080P (25/30 fps), 720P (25/30/50/60 fps)
- Day/Night : Support
- BLC : Support
- WDR : 120 dB
- HLC : Support
- White Balance : Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/ Natural light/Street lamp
- Gain Control : Auto/Manual
- Noise Reduction : 2D/3D
- Defog : Electronic
- Digital Zoom : 16x
- Flip : 0°/180°
- Privacy Masking : Up to 24 areas
- CVI Product Output Mode : CVI; TVI; AHD; CVBS
Audio
- Compression : G.711a; G.711Mu
Port
- Analog Output : 1 (CVBS/CVI output, BNC port)
- RS-485 : 1 (baud rate range: 1200 bps–9600 bps)
- Audio Input : 1 (LINE IN; bare wire)
- Alarm I/O : 2/1
Power
- Power Supply : DC 12V/3A ± 10%
- Power Consumption
- 9.6 W
- 23.2 W (IR light on, PTZ)
Environment
- Operating Temperature : –40°C to +70°C (–40°F to +158°F)
- Operating Humidity ≤ 95%RH
- Protection : IP66; TVS 6000V lightning protection; surge protection
Structure
- Dimensions : 295.4 mm × Φ160.0 mm (11.63" × Φ6.30")
- Net Weight : 3 kg (6.61 lb)
- Gross Weight : 4.2 kg (9.26 lb)
Downloads
Experience superior surveillance with the DHA SD49225-HC-LA PTZ camera. Featuring a 25x optical zoom, 1080P resolution, and advanced Starlight technology, it delivers exceptional clarity even in low light. With 100m IR capability and reliable IP66 weatherproofing, this camera ensures round-the-clock security for your property. Protect what matters most with high-quality video monitoring designed for small to medium-sized applications.
