Hardware
|
|
Sold in Pairs
|
No
|
|
Function Slots
|
LAN 2: 1 × RJ-45 10/100/1000 Mbps(PoE In);
LAN 1: 1 × RJ-45 10/100 Mbps(PoE Out)
|
|
Power Supply
|
PoE(802.3 af/at)
|
|
Power Consumption
|
< 30 W
|
|
Antenna
|
IPEX
|
|
Memory
|
DDR 128 MB
|
|

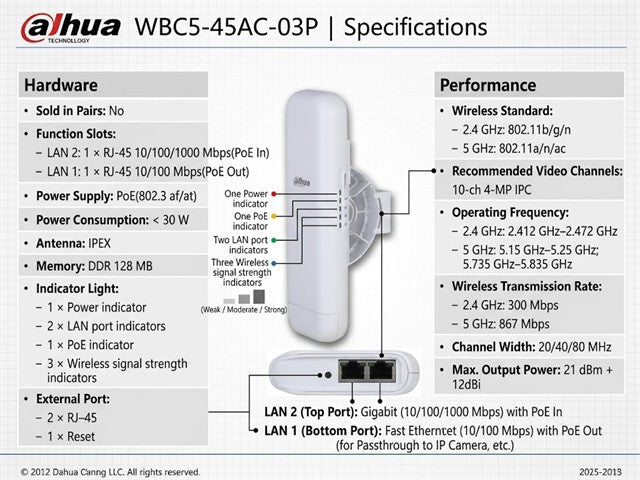

Indicator Light
|
1 × Power indicator;
2 × LAN port indicators;
1 × PoE indicator;
3 × Wireless signal strength indicators
|
|
External Port
|
2 × RJ–45;
1 × Reset
|
|
Performance
|
|
Wireless Standard
|
2.4 GHz: 802.11b/g/n;
5 GHz: 802.11a/n/ac
|
|
Recommended Video Channels
|
10-ch 4-MP IPC
|
|
Operating Frequency
|
2.4 GHz: 2.412 GHz–2.472 GHz;
5 GHz: 5.15 GHz–5.25 GHz; 5.735 GHz–5.835 GHz
|
|
Wireless Transmission Rate
|
2.4 GHz:300 Mbps;
5 GHz:867 Mbps
|
|
Channel Width
|
20/40/80 MHz
|
|
Max. Output Power
|
21 dBm + 12dBi
|
|
Antenna Direction Angle
|
Horizontal: 45°, vertical: 20°
|
|
Receiver Sensitivity
|
–96 dBm@11a_20M_6M
|
|
Polarization
|
Vertical/horizontal
|
|
Transmission Distance
|
3 km (9,842.52 ft)
|
|
Connected Wireless Terminals
|
8
|
|
PoE
|
PoE In: 802.3af/at(15W/30W);
PoE Out: 802.3af(15W)
|
|
Function
|
|
Operating Mode
|
AP; STA
|
|
Equipment Management
|
Web management;
App management
|
|
Network Protocol
|
HTTPS;IPv4;UDP;NTP;DHCP;TCP
|
|
Protection Mode
|
WPA-PSK/AES/TKIP
|
|
Security Mechanism
|
WPA/WPA2; hidden SSID
|
|
DHCP
|
Yes
|
|
Firmware Update
|
Web update;ConfigTool;App update
|
|
Software
|
Device Management: wireless bridge configuration on the app through WLAN; local web management; cloud management (cloud web and app); quick configuration guide; scanning code to add; Wi-Fi hotspot access cloud;
System Management: system log; factory settings; backup restore configuration; import configuration; DMZ; diagnosis and restart;
Network Management: DHCP/Static IP configuration; VLAN configuration; LLDP; topology display;
Wireless Network Management: 2.4 GHz Wi-Fi access management; working mode selection (access point/client); hide SSID (only access point); wireless output power adjustment; channel selection and channel width configuration; Protection mode configuration (non-encrypted and WPA2-PSK; wireless frame segmentation and aggregation
|
|
General
|
|
Operating Temperature
|
–30 °C to +65 °C (–22 °F to +149 °F)
|
|
Storage Temperature
|
–40 °C to +80 °C (–40 °F to +176 °F)
|
|
Operating Humidity
|
5%–95% (RH), non-condensing
|
|
Net Weight
|
0.37 kg (0.82 lb)
|
|
Gross Weight
|
1.16 kg (2.56 lb)
|
|
Product Dimensions
|
268 mm × 82 mm × 35 mm (10.55" × 3.23" × 1.38") (L × W × H)
|
|
Packaging Dimensions
|
299 mm × 139 mm × 111 mm(11.77" × 5.47" × 4.37")(L × W × H)
|
|
Protection
|
IP65
|
|
Statics Protection
|
Air discharge: 15 kV;
Contact discharge: 8 kV
|
|
Lightning Protection
|
Common mode: 6 kV;
Differential mode: 4 kV
|
|

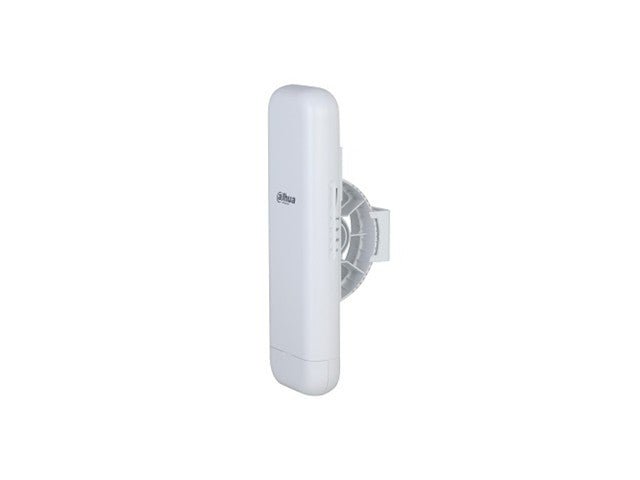

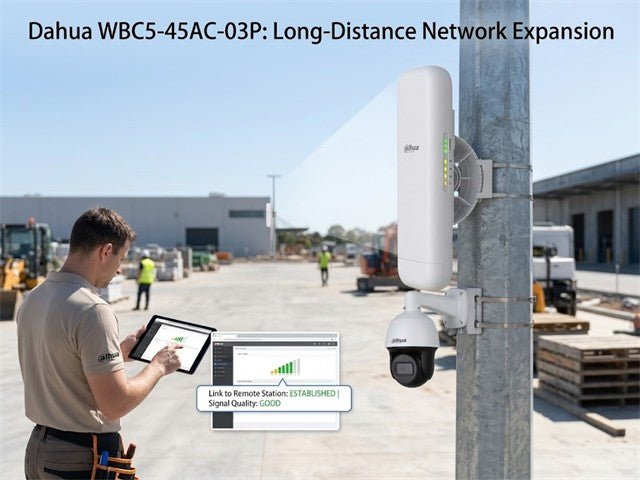

Installation
|
Pole mount
|
|
Certifications
|
CE
|
|
Packing List
|
1 × Wireless bridge;
1 × Power cord;
1 × PoE adapter;
1 × Clamp(Φ59 mm to 82 mm);

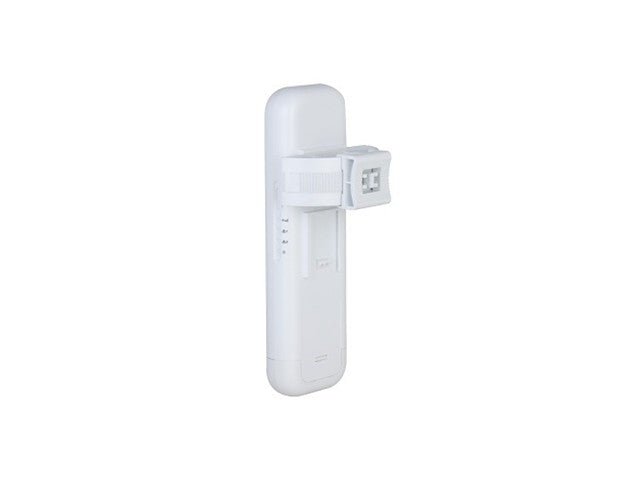

1 × Antenna adjustment bracket;
1 × Mounting bracket;
1 × Quick start guide;
1 × Legal and regulatory information
|
