HKV DS-3T0506HP-E/HS
SKU: HKV DS-3T0506HP-E/HS
BRAND: Hikvision
Sold Out
R 1,299.98 (inc VAT) R 1,130.42 (ex VAT)
Hikvision 4 Port Gigabit Unmanaged Harsh POE Switch, 3xGigabit PoE Port, 1×Gigabit Hi-PoE Port, 2×Gigabit SFP Fiber Optical Port, 6kV Surge Protection for PoE Ports, Switching Capacity:12Gbps, Wire-Speed Forwarding, Temp:-30°C~ 65°C, 48VDC1,35A
4 Port Gigabit Unmanaged Harsh POE Switch
Features
3 × gigabit PoE port, 1 × gigabit Hi-PoE port, 2 × gigabit SFP fiber optical port.
IEEE 802.3at/af/bt standard for Hi-PoE port (Max. 60 W PoE output).
IEEE 802.3at/af standard for PoE ports (Max. 30 W PoE output).
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab standard.
6 kV surge protection for PoE ports.
Up to 300 m long-range transmission.
PoE watchdog to auto detect and restart the cameras that do not respond.
Port isolation to improve network security.
Wire-speed forwarding.
Wider temperature (-30 °C to 65 °C) design.
Store-and-forward switching.
Solid high-strength metal shell.
Reliable fan-free design.

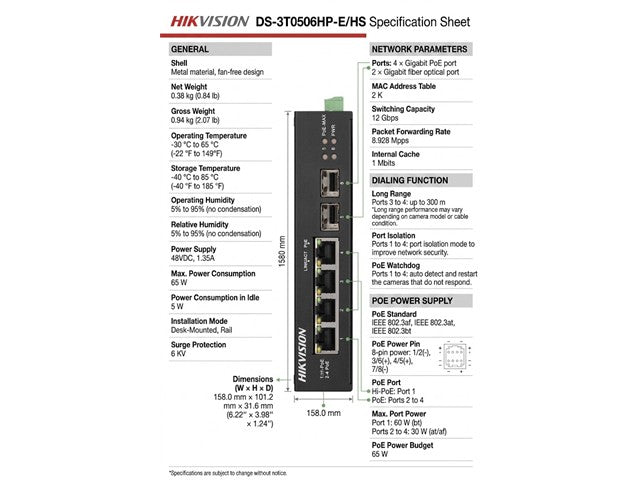

Specifications
General
Shell : Metal material, fan-free design
Net Weight : 0.38 kg (0.84 lb)
Gross Weight : 0.94 kg (2.07 lb)
Dimensions (W × H × D) : 158.0 mm × 101.2 mm × 31.6 mm (6.22'' × 3.98'' × 1.24'')
Operating Temperature : -30 °C to 65 °C (-22 °F to 149°F)
Storage Temperature : -40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity : 5% to 95% (no condensation)
Relative Humidity : 5% to 95% (no condensation)
Power Supply : 48VDC, 1.35A
Max. Power Consumption : 65 W
Power Consumption in Idle : 5 W
Installation Mode : Desk-Mounted,Rail
Surge Protection : 6 KV
Network Parameters
Ports : 4 × Gigabit PoE port,2 × Gigabit fiber optical port
MAC Address Table : 2 K
Switching Capacity : 12 Gbps
Packet Forwarding Rate : 8.928 Mpps
Internal Cache : 1 Mbits
Dialing Function
Long Range
Ports 3 to 4: up to 300 m
Long range performance may vary depend on camera model or cable condition.
Port Isolation : Ports 1 to 4: port isolation mode to improve network security.
PoE Watchdog : Ports 1 to 4: auto detect and restart the cameras that do not respond.
PoE Power Supply
PoE Standard : IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt
PoE Power Pin : 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Port
Hi-PoE: Port 1
PoE: Ports 2 to 4
Max. Port Power
Port 1: 60 W
Ports 2 to 4: 30 W
PoE Power Budget : 65 W
Downloads
Additional Information
Enhance your network with the HKV DS-3T0506HP-E/HS, a rugged 4-Port Gigabit Unmanaged POE Switch designed for harsh environments. Featuring 3 PoE ports and 1 Hi-PoE port with 6kV surge protection, it ensures reliable power and data transmission over long distances. With a temperature range of -30°C to 65°C, this switch is built to withstand extreme conditions, making it perfect for demanding applications. Upgrade your connectivity and security effortlessly with this durable and efficient switch.
