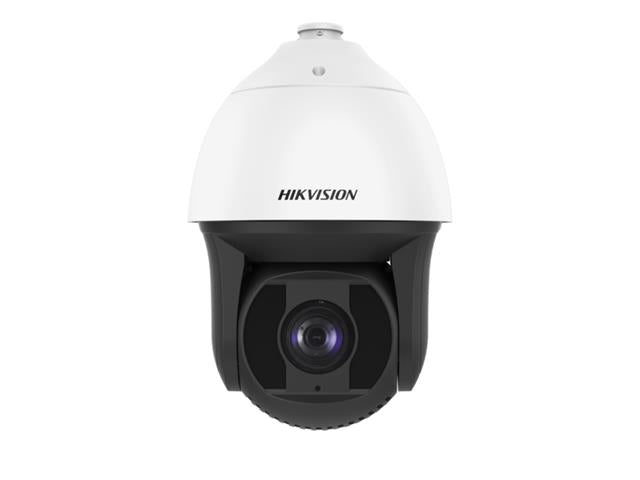

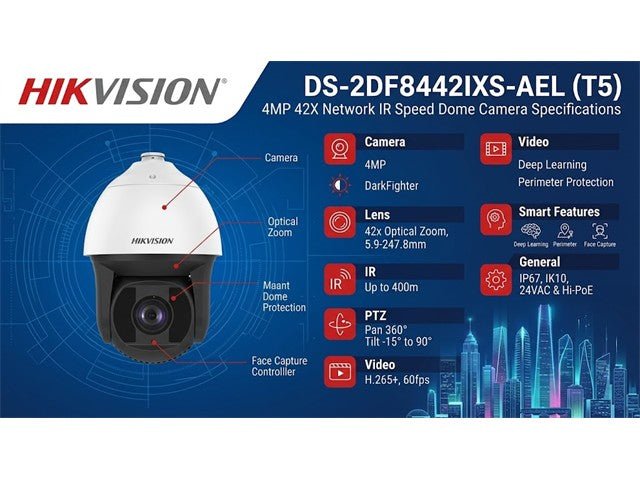

Hikvision DS-2DF8442IXS-AEL(T5) 4MP 42× Network IR Speed Dome adopts 1/1.8" progressive scan CMOS chip. With the
42× optical zoom lens, the camera offers more details over expansive areas.

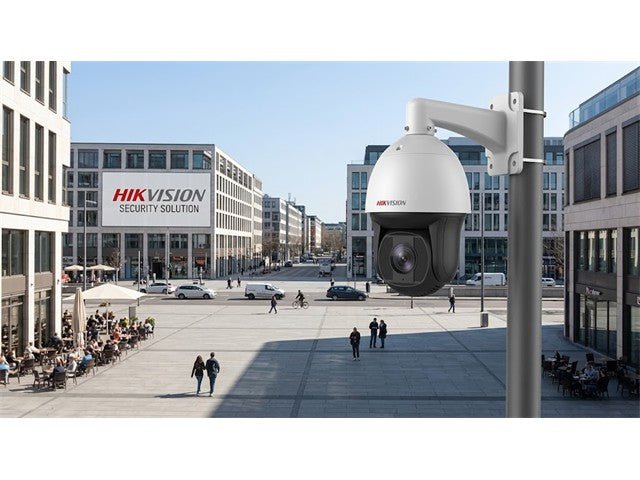

This series of cameras can be widely used for wide ranges of high-definition, such as the rivers, forests, roads, railways, airports, ports, squares, parks, scenic spots, stations and large venues, etc.

• 1/1.8" Progressive Scan CMOS
• High quality imaging with 4 MP resolution
• Excellent low-light performance with DarkFighter technology
• 42× optical zoom and 16× digital zoom provide close up views over expansive areas
• Expansive night view with up to 400 m IR distance
• Water and dust resistant (IP67) and vandal resistant (IK10)
• Supports face capture to detect, capture, grade, and select faces in motion
• Supports road traffic to detect vehicles

Camera

• Image Sensor : 1/1.8" progressive scan CMOS
• Min. Illumination : Color: 0.001 Lux @ (F1.2, AGC ON), B/W: 0.0005 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Speed : 1/1 s to 1/30,000 s
• Day & Night : IR cut filter
• Zoom : 42x optical, 16x digital
• Max. Resolution : 2560 × 1440

Lens

• Focus : Auto, semi-auto, manual, rapid focus
• Focal Length : 6.0 mm to 252 mm
• Zoom Speed : Approx. 4.5 s (optical, wide-tele)
• FOV
  • Horizontal field of view: 56.6° to 1.7° (wide-tele),
  • Vertical field of view: 33.7° to 0.9° (wide-tele),
  • Diagonal field of view: 63.4° to 1.9° (wide-tele)
• Aperture : Max. F1.2

Illuminator

• Supplement Light Type : IR
• Supplement Light Range : Up to 400 m
• Smart Supplement Light : Yes

PTZ

• Movement Range (Pan) : 360°
• Movement Range (Tilt) : -20° to 90° (auto flip)
• Pan Speed : Pan speed: configurable from 0.1° to 210°/s; preset speed: 280°/s
• Tilt Speed : Tilt speed: configurable from 0.1° to 150°/s, preset speed 250°/s
• Proportional Pan : Yes
• Presets : 300
• Patrol Scan : 8 patrols, up to 32 presets for each patrol
• Pattern Scan : 4 pattern scans, record time over 10 minutes for each scan
• Power-off Memory : Yes
• Park Action : Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan,
  panorama scan
• 3D Positioning : Yes
• PTZ Status Display : Yes
• Preset Freezing : Yes
• Scheduled Task : Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan,
  panorama scan, dome reboot, dome adjust, aux output

Video

• Main Stream
  • 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
  • 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
• Sub-Stream
  • 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
  • 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
• Third Stream
  • 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
  • 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
• Video Compression
  • Main stream: H.265+/H.265/H.264+/H.264
  • Sub-stream: H.265/H.264/MJPEG
  • Third stream: H.265/H.264/MJPEG
• H.264 Type : Baseline Profile/Main Profile/High Profile
• H.265 Type : Main profile
• Scalable Video Coding (SVC) : H.264 and H.265 encoding
• Region of Interest (ROI) : 8 fixed regions for each stream

Audio

• Audio Compression G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
• Audio Bit Rate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32~192 Kbps (MP2L2)

Network

• Protocols : IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour
• API : ISUP, ISAPI, Hikvision SDK, Open Network Video Interface (Profile S, Profile G, Profile T)
• Simultaneous Live View : Up to 20 channels
• User/Host : Up to 32 users. 3 levels: Administrator, Operator and User
• Security : Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3, host authentication (MAC address)
• Client : HikCentral, iVMS-4200, Hik-Connect
• Web Browser : IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+


• Image Settings : Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by
  client software or web browser
• Defog : Optical defog
• Image Enhancement : BLC, HLC, 3D DNR
• Wide Dynamic Range (WDR) : 140 dB WDR
• Image Stabilization : Yes. Built-in gyroscope to improve EIS performance
• Regional Exposure : Yes
• Regional Focus : Yes
• Privacy Mask : Up to 24 masks, polygon region, mosaic mask, mask color configurable

Interface

• Ethernet Interface : 1 RJ45 10M/100M self-adaptive Ethernet port; Hi-PoE
• On-board Storage : Built-in memory card slot, support MicroSD/MicroSDHC/MicroSDXC, up to 256 GB
• Alarm : 7 inputs, 2 outputs
• Audio : 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
• Video Output : 1.0V[p-p]/75Ω, PAL, NTSC, BNC connector
• RS-485 : HIKVISION, Pelco-P, Pelco-D, self-adaptive

Event

• Basic Event : Motion detection, video tampering alarm, alarm input and output, exception
• Smart Event : Line crossing detection, region entrance detection, unattended baggage detection, object removal detection, intrusion detection, region exiting detection, vandal-proof
  alarm, audio exception detection
• Smart Tracking : Manual tracking, auto-tracking
• Alarm Linkage : Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.

Deep Learning Function

• Face Capture : Support detecting up to 30 faces at the same time. Support detecting, tracking,
  capturing, grading, selecting of face in motion, and output the best face picture of the face
• Face Comparison : Yes
• Perimeter Protection
  • Line crossing, intrusion, region entrance, region exiting
  • Support alarm triggering by specified target types (human and vehicle)

Road Traffic and Vehicle Detection

• Road Traffic : Support vehicle detection (license plate number, vehicle model, and vehicle color
  recognition)

General

• General Function : Mirror, password protection, watermark, IP address filter
• Power
  • 24 VAC (Max. 60 W, including max. 18 W for IR and max. 6 W for heater), Hi-PoE (Max.
  • 50 W, including max. 18 W for IR and max. 6 W for heater)
• Operating Condition : Temperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95%
• Dimension : ⌀ 266.6 mm × 410 mm (⌀ 10.50" × 16.14")
• Weight Approx. 8 kg (17.64 lb.)
• Language
  • 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian,
    Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish,
    Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese,
    Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

1. Datasheet - HKV DS-2DF8442IXS-AEL (T5)
