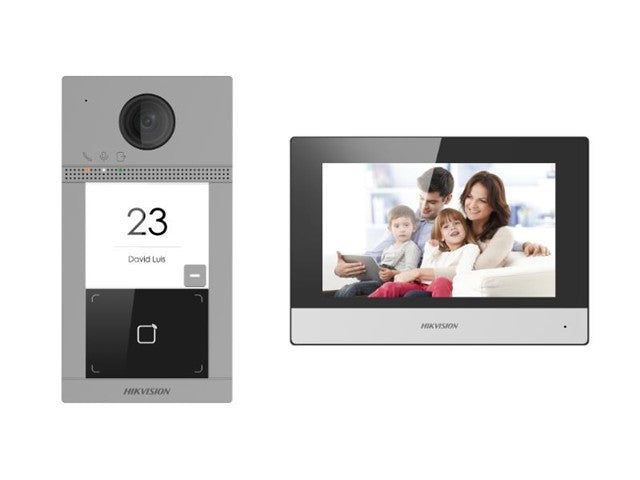

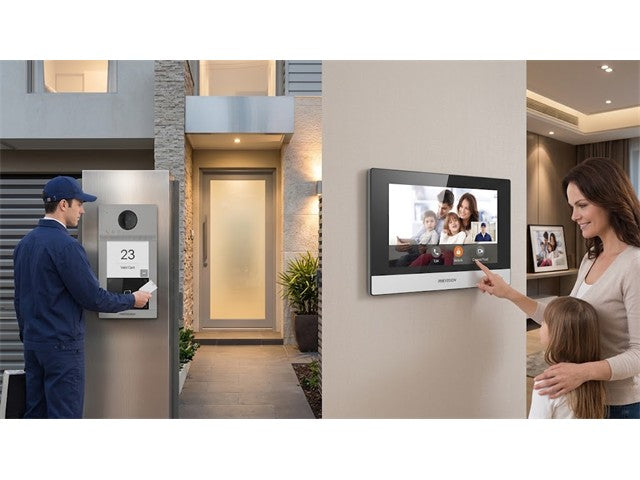

• IP video intercom for villa or house
• One call button for easier calls
• Convenient Hik-Connect App mobile control
• Stores messages and captured pictures in the TF card

Door station/Video parameters

• Supplement lightIR supplement
• Resolution
  • Main stream : 1920 × 1080p, 1280 x 720p
  • Sub stream : 1280 x 720p, 640 × 480
• Lens : 1
• WDR : Support
• FOVHorizontal: 124° Vertical: 75°
• Video compression standard : H.264; h.265; MJPEG

Door station/Audio parameters

• Audio input : Built-in omnidirectional microphone
• Audio output : Built-in loudspeaker (more than 80 dB within 30 cm)
• Audio quality : Noise suppression and echo cancellation
• Volume adjustmentAdjustable
• Audio compression standard : G711U、G711A、G726、AAC_LC、AAC_LD、OPUS、G722.1
• Audio compression Rate : 64 Kbps

Door station/Capacity parameters

• User capacity : 2000

Door station/Network parameters

• Network protocol : TCP/IP, RTSP, IPV6,ONVIF
• Wi-FiWi-Fi 802.11 b/g/n
• Wired network : 10/100 Mbps self-adaptive Ethernet
• 3G/4G/
• Bluetooth/

Door station/Device interfaces

• Network interface : 1
• RS-485 : 1
• Wiegand : 0
• Alarm input : 4
• Lock control : 2
• Exit button : 2 Max.
• Door contact : 2
• Alarm output : 0
• Power interface : 1
• TAMPER : 1
• USB interface : 0
• TF card : 1 (reserved)

Door station/General

• Button : 1
• Indicator : 3
• Power consumption :＜ 10 W
• Power supply
  • IEEE802.3af, standard PoE
  • 12 VDC
• Working temperature : -40° C to 53° C(-40° F to 127.4° F)
• Working humidity : 10% to 95%
• Dimension : 174 mm × 91 mm × 29 mm
• Application environment : Outdoor
• Protection level : IP65, IK08
• 380 g
• Installation : Surface Mounting

Indoor station/System parameters

• Operation system : Embedded Linux operation system
• Memory : 128 MB
• Flash : 32 MB

• Indoor station/Display parameters
• Display screen : 7-inch colorful TFT screen
• Display resolution : 1024 × 600
• Operation method : Capacitive touch screen

Indoor station/Audio parameters

• Audio input : Built-in omnidirectional microphone
• Audio output : Built-in loudspeaker
• Audio quality : Noise suppression and echo cancellation
• Audio compression standard : G.711 U
• Audio compression Rate : 64 Kbps

Indoor station/Network parameters

• Network interface : 1 RJ-45 10/100 Mbps self-adaptive
• Wired network : 10/100 Mbps self-adaptive
• Wireless network : Wi-Fi 802.11 b/g/n
• Protocol : TCP/IP, SIP, RTSP
• Indoor station/Device interfaces
• RS-485 : 1
• Alarm input : 8-ch alarm inputs
• Relay output : 2
• TF card : Max to 32 G, SD 2.0 or lower version

Indoor station/General

• Power consumption : ≤ 6 W
• Power supply : Standard PoE,12VDC
• Working temperature : -10 °C to 55 °C (14 °F to 131 °F)
• Working humidity : 10% to 90%
• Dimension (L x W x H)
  • 200 mm × 140 mm × 15.1 mm (7.9" ×
  • 5.5 × 0.6\")"

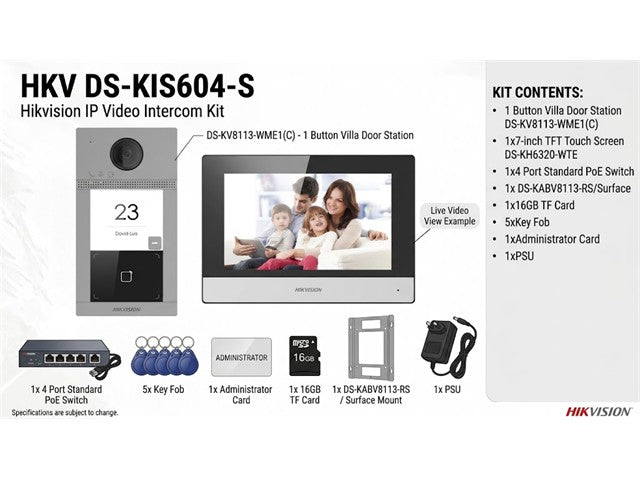

1. Datasheet - HKV DS-KIS604-S
