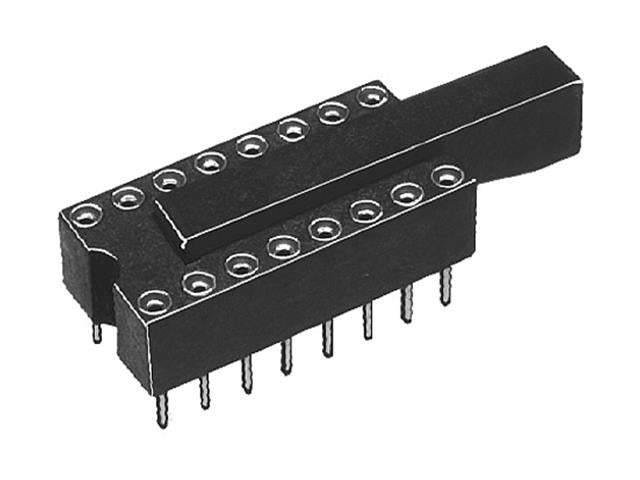

DILS 16 GB-L1

Name: DILS 16 GB-L1 - Communica [Part No: DILS 16 GB-L1]
Brand: Communica
SKU: DILS 16 GB-L1
Price: 0.15 ZAR
Availability: OutOfStock

SKU: DILS 16 GB-L1

BRAND: Communica

Sold Out
R 0.17_{(inc VAT)}
R 0.15_{(ex VAT)}

Collections: Connectors

Type: PCB Connectors

Category: IC Sockets

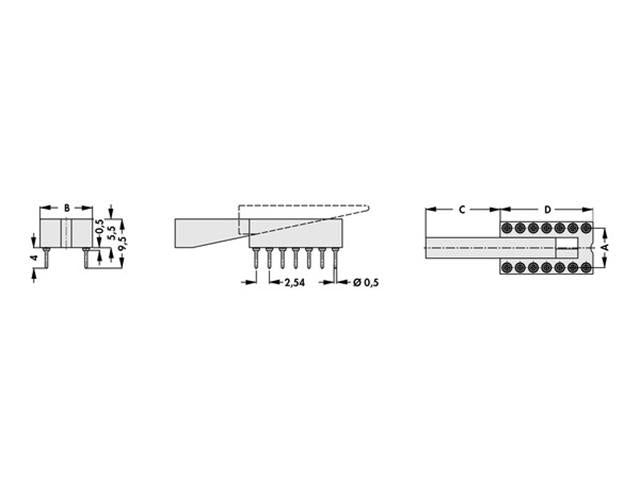

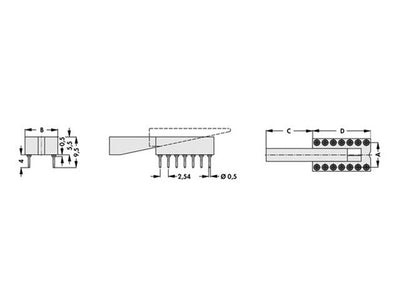

DIL Case

Specifications

no. of contacts:	16
contact material:	CuZn-alloy
contact spring:	gold-plated
contact sleeve:	gold-plated
surface contact / contact sleeve:	Ni+≥0.2µm Au
inner contact spring material:	CuBe-alloy
inner contact spring surface:	Ni+0,75µm Au
plugability for circuit points:	0,22x0,25mm... 0,4x0,55mm Ø0,4...0,56mm
insert depth:	2.5...3.6mm
insertion / drawing force:	1.8 N/1.4 N 4 lamellas contact
shock resistance:	50 g
vibration resistance max.:	15 g
volume resistance:	10 mΩ
contact resistance:	4 mΩ
contact resistance after 1000 cycles:	7 mΩ
capacity between two adjacent contacts:	0,4 pF
nominal current:	1.5 A
nominal voltage:	150 V DC
test voltage:	1000 V
insulating body material:	PPS, GF
temperature range:	-40°C... +200°C (260°C/10 s)
class of inflammability:	UL 94 V-0
specific insulation resistance:	>10¹² Ω·m
reflow solderable:	yes

Additional Information

Device

DIL Case

Upgrade your connections with the DILS 16 GB-L1, featuring 16 gold-plated contacts for superior conductivity and durability. Designed for optimal performance in demanding environments, this DIL case withstands extreme temperatures and provides excellent resistance to shock and vibration. Perfect for your electronic projects, it ensures reliable operation with low contact resistance and high plugability.
