DRN BR/LESS MOTOR ESC 10A 2-6S

SKU: DRN BR/LESS MOTOR ESC 10A 2-6S

BRAND: HOBBYWING

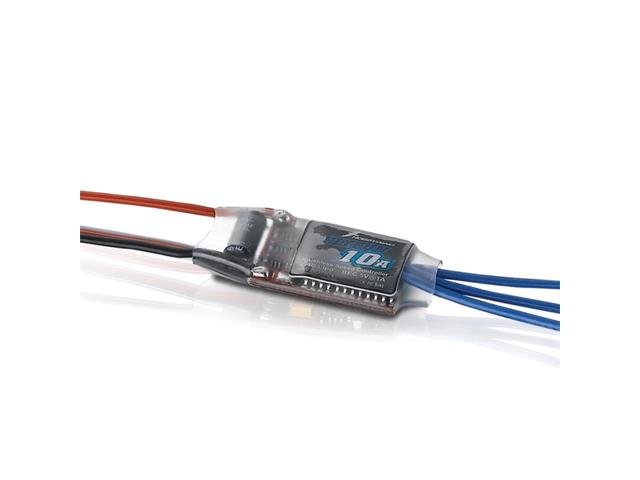

HOBBYWING FLYFUN 10A 2-6S BLHELI Electronic Speed Control (ESC)

10A Electronic Speed Control

Features

  • Output: Continuous 10A, Burst 12A up to 10 Secs. PWM is 16KHz
  • Input Voltage: 2-4 cell lithium battery or 5-12 cell NiCd/NIMh battery.
  • BEC: 1A / 5V (Linear mode).
  • Max Speed: 210,000rpm for 2 Pole BLM, 70,000rpm for 6 pole BLM, 35,000rpm for 12 pole BLM. (BLM: BrushLess Motor)
  • Size: 27mm (L) * 17mm (W) * 6mm (H).
  • Weight: 9g

Specifications

  • Safety Arming Feature: Regardless of the throttle stick position, the motor will not spin after battery is connected.
  • Throttle Calibration: Throttle range can be configured to provide best throttle linearity, fully compatible with all available transmitters.
  • Programmable Items:
    • Brake Setting: brake enabled / brake disabled.
    • Battery Type: Li-xx(Li-ion or LiPo) / Ni-xx(NiMh or NiCd).
    • Low Voltage Protection Mode (Cutoff Mode): Gradually reduce the output power / Cutoff the output power.
    • Low Voltage Cutoff Protection Threshold (Cutoff Threshold): low / medium / high.
    • Start Mode: normal / soft / very soft.
    • Timing: low / medium / high.
    • Reset: reset all the programmable items to their default settings.
  • Full Protection Features: Low voltage cutoff protection / Over-heating protection / Throttle signal lost protection.
  • Advantages
    • Military standard capacitor with extremely low resistance decreases unwanted RF noise during flying.
    • Extreme low resistance PCB helps in producing super current endurance capability.
    • Microprocessor uses a separate voltage regulator IC, with great anti-jamming capability.
    • Compatible with Hobbywing's Program Card  (purchase separately)
