BRAND: Skydroid

The T10 uses the Latest in FHSS technology to achieve perfect control and operation. Integrated with digital video transmission, (7KM) Connected via Bluetooth or USB, also supports S.BUS, PPM, PWM and Serial ports

T10 2.4GHz 10Ch FHSS Transmitter


  • Product features(Need buy separately)(Need buy separately) (1) Dual antenna plus dual RF module with integrated control algorithms ensuring reliable communication via full angle high gain antennas. The T10 uses the Latest in FHSS (Frequency Hopping Spread Spectrum) technology to achieve perfect control and operation.
  • Integrated with digital video transmission, farthest to 7KM.
  • Integrated with data transmission, farthest to 10KM. CU Parameter adjustments via APP with upgraded traditional OSD to touch panel control.
  • Connected via Bluetooth or USB, also supports S.BUS, PPM, PWM, Serial ports and external devices, etc.
  • Connects the APP via Bluetooth, switching the operation model, adjusting the data of forward and reverse, rudder volume, channel binding, runaway protection value, SBUS, PPM output, and digital baud rate. Providing parameter saving and loading functions.
  • Based on the “Tower” APP to ensure optimal compatibility with Pixhawk systems. A large map view allows for easy waypoint selection and route planning including one key return to home. The T10 Also supports Tower, QGC, JIYI, TOP GUN, and BUYING APR
  • Using 2 pcs of 18650 batteries(Need to buy separately), endurance over 25 hours with 20DBm transmission frequency.
  • High integrated datalink with video & data transmission and telemetry all-in-one unit. Ultra-small size, with folding brackets, strong and stable.
  • A number of optional cameras can be selected for your application, such as mini digital camera, digital camera with LED, 20 times zoom camera, etc.


Misuse of this product may result in injury, damage, or loss of property. Read the manual carefully before using this product. This item is not a toy. This item is intended for use by professional UAV operators and installers only. Do not use this product if you lack the knowledge and expertise to install and maintain UAV radio equipment. DO NOT use unapproved or unofficial components with this system. Operators must strictly follow the operation guides set forth in this manual. Skydriod does not accept any liability for the use or misuse of this product.


Receiver data
Model R10 channels 10
Working voltage 4.5-5.5V Working Current 100mA
Dimension 50*3112(mm) Weight 17 g
Controller data
Model T10 channels 10
Working voltage 4.2V Working Current 100mA
Frequency 2.400-2.483GHz Modulation New FHSS
Firmware APP online Weight 525g
Dimension 160*150’50mm Battery Capacitor 18650Batterhesx 2 out
Duration 25(Hours) Charge Port MICRO-USB
Application Helicopter Fixed-wing,Quadcopter,car,boat
MINI Camera Specifications
Model MENDHAM Size 30*29*26mm
Working Current 180mA Weight 15.6g


Additional Information

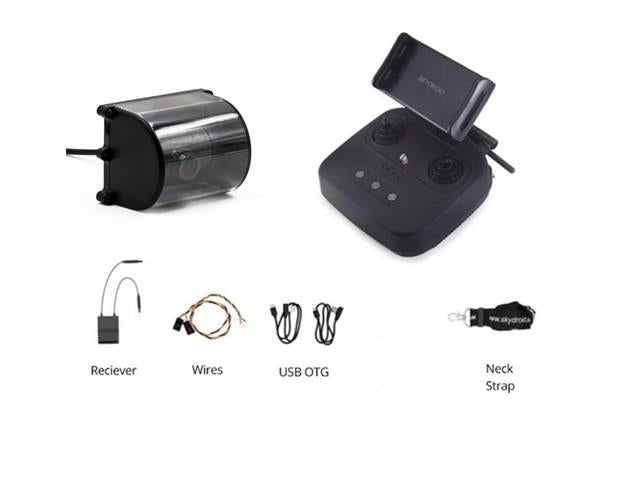

Device Transmitter with R10 Mini Receiver

User Manual
