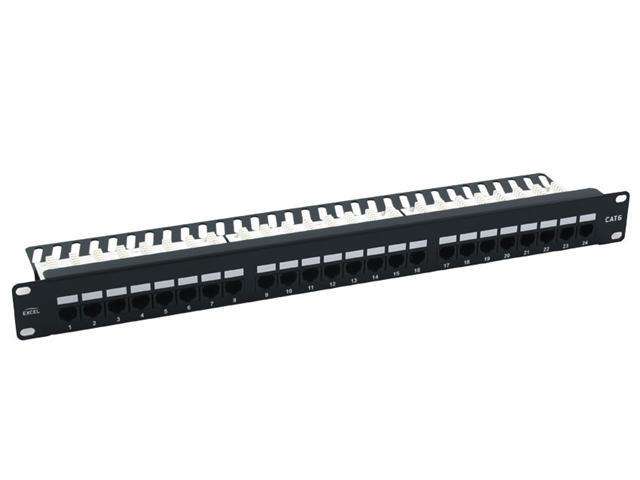

Cat6 24Port Patch Panel Black+Keystone Right Angled
Overview
Excel Category 6 patch panels are manufactured to provide Category 6 channel performance. A range of parameters are tested in frequency sweeps up to and including 250 MHz. The panel is also backward compatible with Category 5 and 5e components.
This range of panels have been designed to meet or exceed the latest ISO and TIA requirements for category 6 compliance. When installed with Excel Category 6 cables and outlets full link and channel compliance can also be achieved.
Features
- 100BASE TX Fast Ethernet
- Token Ring
- 1000BASE T Gigabit Ethernet
- 155 Mbps ATM
- Composite Video
- 622 Mbps ATM
Specification
- Wiring Specification : T568A & T568B
- Port Density : 24 Ports Per 1U (44mm)
- Dimensions : 480Mm Wide X 33Mm Deep (without rear management tray) X 44Mm (1U) Or 88Mm (2U) High
- Rj45 Jack : Min Life Expectancy 700 Insertions
- RJ45 Jack : 50 Microinch Gold Plated Contact Pins
- IDC Contacts : LSA Style, Maximum 100 Reterminations
- Next At 250Mhz Spec : 33.14Db (in channel worst pair)
- Actual : 38.87Db (In Channel Worst Pair)
- Fext At 250Mhz Spec : 15.33Db (in channel worst pair)
- Actual : 22.29dB (in channel worst pair)
Upgrade your network with the EXN IT-100-304 B Cat6 Patch Panel, featuring 24 ports for seamless connectivity and fast data transmission. Designed for optimal performance and compatibility, this durable panel supports Gigabit Ethernet and meets the latest ISO and TIA standards, ensuring reliable connections for all your devices. Experience enhanced network reliability and efficiency with this essential component for your setup.
