EZVIZ Smart Pan & Tilt WiFi Camera Dual Lens 2k (3mp+3mp) , Top Lens:2.8mm , Bottom Lens:6mm , 40m IR , 1/3”CMOS , 3D DNR/WDR , H.265 , WPA-PASK/WPA2-PSK , 1xRJ45 10/100mbs , Ai-powered Human/Shape Detection , Colour Night Vision , WiFi6 , Psu:12v1.5a

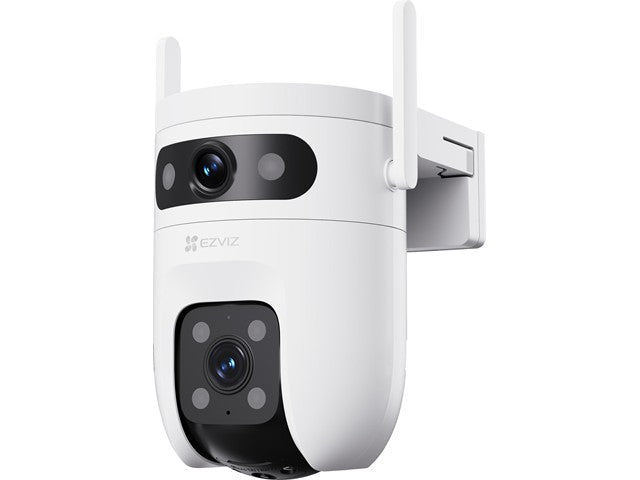

EZVIZ Smart Pan & Tilt WiFi Camera Dual Lens

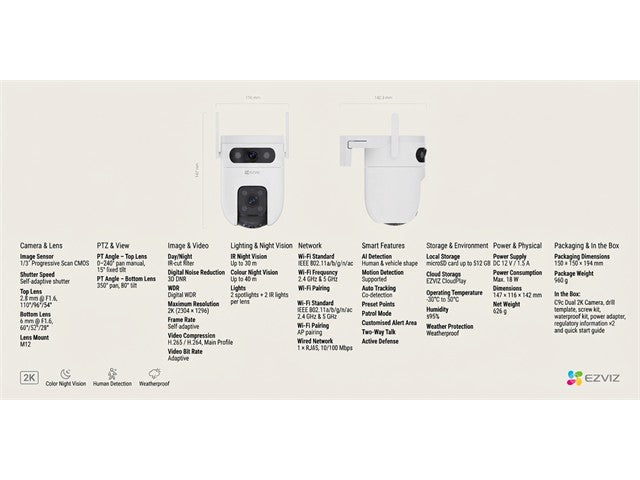

Specifications
Image Sensor: 1/3" Progressive Scan CMOS
Shutter Speed: Self-adaptive shutter
Top Lens: 2.8 mm @ F1.6
Top Lens Viewing Angle: 110° diagonal, 96° horizontal, 54° vertical
Bottom Lens: 6 mm @ F1.6
Bottom Lens Viewing Angle: 60° diagonal, 52° horizontal, 28° vertical
PT Angle – Top Lens: 0–240° pan (manual adjustment), 15° preset fixed tilt
PT Angle – Bottom Lens: 350° pan, 80° tilt
Minimum Illumination: 0.5 Lux @ F1.6, AGC ON; 0 Lux with IR
Lens Mount: M12
Day/Night: IR-cut filter with auto switch
Digital Noise Reduction: 3D DNR
WDR: Digital WDR
IR Night Vision: Up to 30 m / 98 ft
Colour Night Vision: Up to 40 m
Lights: 2 spotlights + 2 IR lights per lens
Maximum Resolution: 2K (2304 × 1296)
Frame Rate: Self-adaptive during network transmission
Video Compression: H.265 / H.264
H.265 Profile: Main Profile
Video Bit Rate: Ultra-HD, Hi-Def and Standard; adaptive bit rate
Wi-Fi Standard: IEEE 802.11a/b/g/n/ac
Wi-Fi Frequency: 2.4 GHz and 5 GHz
Channel Bandwidth: 20 MHz @ 2.4 GHz; 20/40/80 MHz @ 5 GHz
Wi-Fi Security: WPA-PSK / WPA2-PSK
Transmission Rate: Up to 433 Mbps (802.11ac); up to 600 Mbps (802.11ax)
Wi-Fi Pairing: AP pairing
Wired Network: 1 × RJ45, 10/100 Mbps adaptive Ethernet
AI Detection: Human and vehicle shape detection
Motion Detection: Supported
Auto Tracking: Co-detection for auto tracking
Preset Points: Supported
Patrol Mode: Supported
Customised Alert Area: Supported
Two-Way Talk: Supported
Active Defense: Supported
Local Storage: microSD card up to 512 GB
Cloud Storage: EZVIZ CloudPlay (subscription required)
Operating Temperature: -30°C to 50°C
Humidity: ≤95%, non-condensing
Weather Protection: Weatherproof design
Power Supply: DC 12 V / 1.5 A
Power Consumption: Max. 18 W
Dimensions: 147 × 116 × 142 mm
Net Weight: 626 g
Packaging Dimensions: 150 × 150 × 194 mm
Package Weight: 960 g
In the Box: C9c Dual 2K Camera, drill template, screw kit, waterproof kit, power adapter, regulatory information ×2 and quick start guide.
