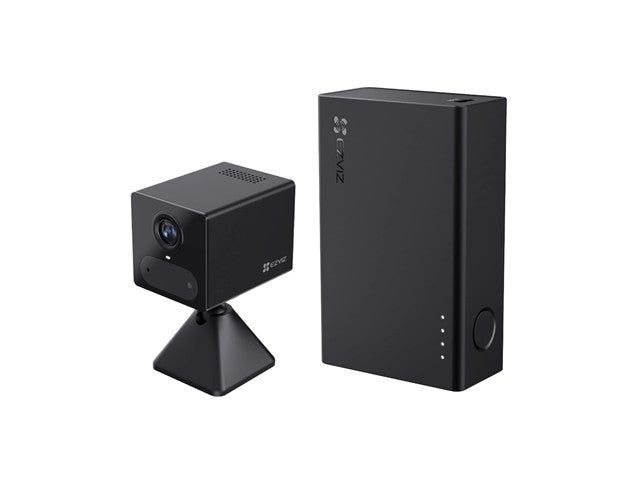

EZVIZ Smart Home Indoor Battery Camera & Power Partner Kit 4G, 3MP 4mm LENS, 8M IR, 1/2.8” CMOS, 3D DNR, H.265/H.264, Magnetic Base, AI Powered Human Shape Detection, Two-Way Talk, Supports Micro SD up to 512GB, Type-C, Black
Smart Home Indoor Battery Camera
Overview

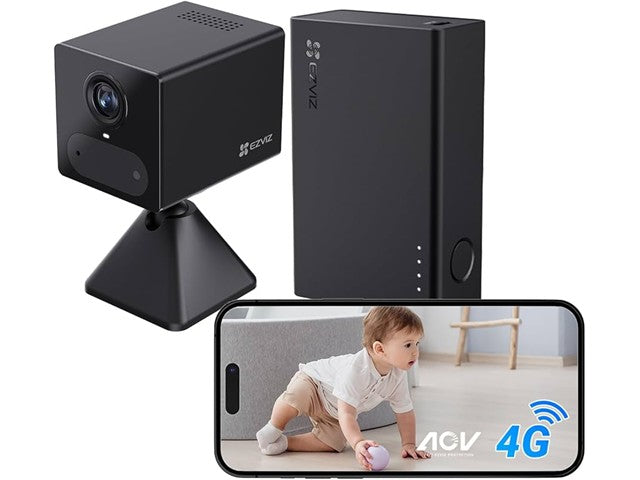

EZVIZ’s first 4G camera for indoor use, the CB2 4G improves your indoor security experience by overcoming the limitations of installation and network connectivity. The camera allows you to access the network via a 4G SIM card, so you don’t need to worry about the Wi-Fi signal. Working with the EZVIZ Power Partner that’s specifically designed to boost its overall performance, the camera runs with a long battery life, completely removing the restriction of electricity wiring.
Specifications
| Camera |
| Image Sensor |
1/2.8” 3-Megapixel Progressive Scan CMOS Sensor |
| Minimum Illumination |
0.01 Lux |
| Shutter Speed |
Self-adaptive shutter |
| Lens |
4 mm @ F1.6
Field of view: 106° (diagonal), 90° (horizontal), 48°(vertical)
|
| Lens Mount |
M12 |
| Day & Night |
IR-cut Filter with Auto Switch |
| DNR |
3D DNR |
| Night Vision |
Up to 8 m / 26 ft |
| Video & Audio |
| Max Resolution |
2K (2304 × 1296) |
| Frame Rate |
15 fps. Self-Adaptive during network transmission |
| Video Compression |
H.265 / H.264 |
| Video Bit Rate |
Ultra-HD; Full HD; Hi-Def
Adaptive bit rate
|
| Audio Bit Rate |
Self-Adaptive |
| Max. Bitrate |
1.5 Mbps |
| Network |
| Frequency Bands |
EU LTE-FDD：B1 / B3 / B5 / B7 / B8 / B20 / B28
LA LTE-FDD：B2 / B3 / B4 / B5 / B7 / B8 / B28 / B66
|
| Function |
| Smart Alarm |
Supports |
| Customized Alert Area |
Supports |
| Two-way Talk |
Supports |
| Storage |
| Local Storage |
Supports microSD card (max. 512 GB) |
| Cloud Storage |
Supports EZVIZ CloudPlay storage (subscription required) |
| General |
| Operating Conditions |
-10°C to 45°C (14°F to 113 °F )
Humidity 95% or less (non-condensing)
|
| Power Supply |
DC 5 V / 2 A (purchased separately) |
| Battery Capacity |
2000 mAh |

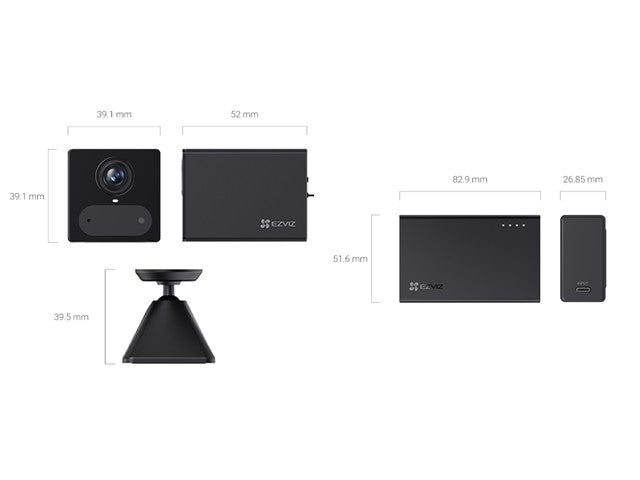

| Dimensions |
52 × 39.1 × 39.1 mm (2.47 ×1.54 × 1.54 inch) |
| Packaging Dimensions |
126 × 91× 50 mm (4.96 × 3.58 × 1.97 inch) |
| Weight |
Bare Weight: 90 g (3.17 oz)
With Package: 303 g (10.68 oz)
|
| Specifications |
| Model |
CS-PB18-R100-WH |
| Performance Parameter |
| Input Parameter |
Type-C, 5 V 2 A |
| Output Parameter |
USB-A, 5 V 1 A |
| Battery Capacity |
5,200 mAh |
| Low Current Output |
Supports |
| General |
| Discharge Temperature |
-10°C ~ 45°C ( 14°F to 113 °F ) |
| Recharge Temperature |
0°C ~ 40°C ( 32°F to 104 °F ) |
| Cable |
0.5M USB-A to Type-C Cable |
| Product Dimensions |
51.6 × 82.9 × 26.85 mm (2.03 × 3.26 × 1.06 inch) |
| Packaging Dimensions |
107 × 102 × 55 mm (4.21 × 4.02 × 2.17 inch) |
| Product Weight |
150 g |
| In the box |
| In the box |
- CB2 4G Camera |
| - Power Partner |
| - Power Cable |
| - Metal Plate × 2 |
| - Foam Sticker × 3 |
| - Screw Kit × 2 |
| - Quick Start Guide |
| - Regulatory Information × 3 |
| Certifications |
| Certifications |
CE / REACH / WEEE / RoHS |
Downloads
Additional Information
Enhance your home security with the EZVIZ CS-CB2/PB-R105-BK Smart Indoor Battery Camera. Featuring 4G connectivity, 3MP clarity, and AI-powered human detection, this camera ensures seamless monitoring without Wi-Fi hassles. Enjoy peace of mind with two-way talk and long-lasting battery life, making it the ideal choice for smart home enthusiasts.
